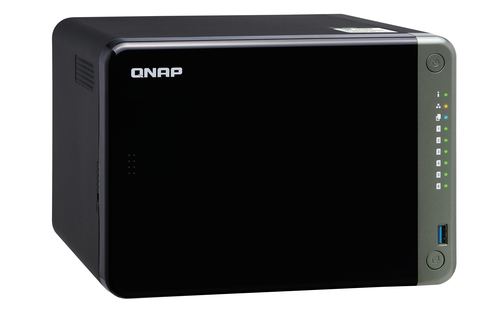

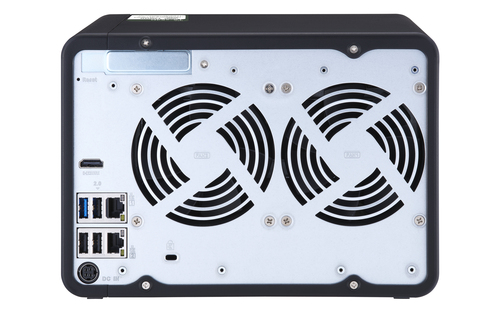

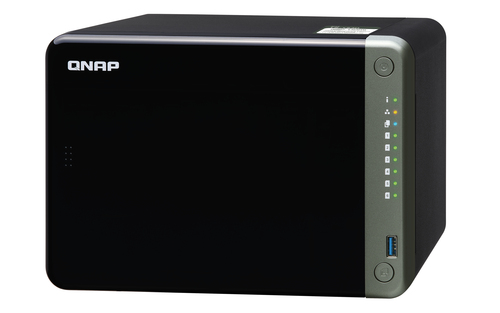

QNAP TS-653D NAS Tower Intel® Celeron® J4125
QNAP

TS-653D NAS Tower Intel® Celeron® J4125

8 GB DDR4 0 TB QNAP Turbo System Black

Model TS-653DPart no. TS-653D-4G/12TB-IWPEAN 5051868138461

149 specifications
  • ProcessorIntel® Celeron®
  • Memory8 GB
  • Noise21.3 dB
  • TypeNAS
  • OSQNAP Turbo System
  • Weight2.87 kg
See all specifications

Overview

Processor
Intel® Celeron®
Memory
8 GB
Noise
21.3 dB
Type
NAS
OS
QNAP Turbo System
Weight
2.87 kg
Brand
QNAP
Model
TS-653D
Part numbers
TS-653D-4G/12TB-IWP, TS-653D-8G, TS-653D-4G, TS-653D-8G-US, TS-653D-4G-US, TS-653D-4G/12TB-REDPRO +34 more
EAN / UPC
5051868138461, 4713213517055, 4713213517048, 885022019076 +56 more
Also known as
QNAP TS-653D NAS Tower Intel® Celeron® J4125 8 GB DDR4 0 TB QNAP Turbo System Black

Specifications

149 specifications in 16 groups

Storage

Storage drives installedNo
Total installed storage capacity0 TB
Number of storage drives installed0
Number of storage drives supported6
Installed storage drive typeNo
Supported storage drive typesHDD & SSD
Storage drive capacity0 GB
Supported storage drive interfacesSerial ATA II, Serial ATA III
Storage drive sizes supported2.5,3.5"
RAID supportYes
RAID levels0, 1, 5, 6, 10, JBOD
Online RAID migrationYes
Online RAID expansionYes
RAID rebuildYes
Hot-swap drive baysYes
Supported file systemsFAT32, HFS+, NTFS, ext3, ext4

Processor

Processor manufacturerIntel
Processor familyIntel® Celeron®
Processor modelJ4125
Processor frequency2 GHz
Processor boost frequency2.7 GHz
Processor cores4
Processor threads4
Processor cache4 MB
CPU configuration (max)1
PCI Express configurations1x4+1x2, 4x1, 2x1+1x2+1x2
PCI Express slots version2.0
Processor codenameGemini Lake Refresh
Processor lithography14 nm
Processor operating modes64-bit
Processor package size25 x 24 mm
Processor socketBGA 1090
Thermal Design Power (TDP)10 W
Tjunction105 °C
On-board graphics card modelIntel® UHD Graphics 600
Maximum internal memory supported by processor8 GB

Memory

Internal memory8 GB
Internal memory typeDDR4
Maximum RAM supported8 GB
Memory form factorSO-DIMM
Memory slots2
Flash memory4000 MB

Network

Ethernet LANYes
Ethernet LAN data rates10,100,1000,2500 Mbit/s
DHCP clientYes
DHCP serverYes
Jumbo frames supportYes
iSCSI supportYes
Wake-on-LAN readyYes
Dynamic DNS (DDNS)Yes
Link aggregationYes
Load balancing systemYes
Supported network protocolsFTP, SFTP, TFTP, PPTP, L2TP/IPSec, OpenVPN, QBelt
WLAN adapter supportedYes

Ports & interfaces

Ethernet LAN (RJ-45) ports2
USB portYes
USB 2.0 ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Fiber ports quantity0
HDMI ports quantity1
HDMI version2.0

Graphics

On-board graphics card DirectX version12.0
On-board graphics card ID0x3185
On-board graphics card OpenGL version4.4
On-board graphics card base frequency250 MHz
On-board graphics card burst frequency750 MHz
On-board graphics card dynamic frequency (max)750 MHz
Maximum on-board graphics card memory8 GB
Number of displays supported (on-board graphics)3

Design

Chassis typeTower
Cooling typeActive
Product colourBlack
Number of fans2 fan(s)
Fan diameter9 cm
LED indicatorsHDD, LAN, Power, Status, USB
Cable lock slotYes
Cable lock slot typeKensington

Performance

TypeNAS
Device classSmall & Medium Business
Backup functionYes
Backup featuresCloud, USB drive, iSCSI LUN
BuzzerYes
Multilingual supportYes
Noise level21.3 dB
Third-party supportYes
Web-based managementYes
Access Control List (ACL)Yes
Backup buttonYes
Browser supportedApple Safari 7+, Google Chrome, Microsoft Internet Explorer 10+, Mozilla Firefox
Built-in FTP serverYes
Hot spareYes
On/off switchYes
Remotely operatedYes
Reset buttonYes
S.M.A.R.T. supportYes
Security algorithms256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS
Share folderCIFS/SMB, FTP, WebDAV
System logYes
USB copy functionYes
Universal Plug and Play (UPnP)Yes

Software

Operating system installedQNAP Turbo System
Operating system version5.0.0
Windows operating systems supportedWindows 10, Windows 7, Windows 8
Linux operating systems supportedYes
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina
Server operating systems supportedWindows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Power

Power supply locationExternal
Power supply unit (PSU) capacity120 W
Number of power supply units1
Redundant power supply (RPS) supportNo
Power consumption (typical)35.437 W
Power consumption (sleep)18.634 W
AC input voltage100 - 240 V
Fan voltage12 V

Weight & dimensions

Width235 mm
Depth226 mm
Height168 mm
Weight2.87 kg
Package weight4.56 kg

Packaging content

External power adapterYes
Cables includedAC, LAN (RJ-45)
Power cables quantity1

Processor special features

Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Anti-Theft Technology (Intel® AT)No
Intel® Hyper Threading Technology (Intel® HT Technology)No
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® OS GuardYes
Intel® Quick Sync Video TechnologyYes
Intel® Secure KeyYes
Intel® Smart Response TechnologyNo
Intel® Turbo Boost TechnologyNo
Maximum number of PCI Express lanes6
Number of execution units12
Thermal Monitoring TechnologiesYes
UARTYes
Memory types supported by processorDDR4-SDRAM, LPDDR4-SDRAM

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)5 - 95%
Storage temperature (T-T)-20 - 70 °C

Logistics data

Harmonized System (HS) code84714100

Other features

Processor ARK ID197305
