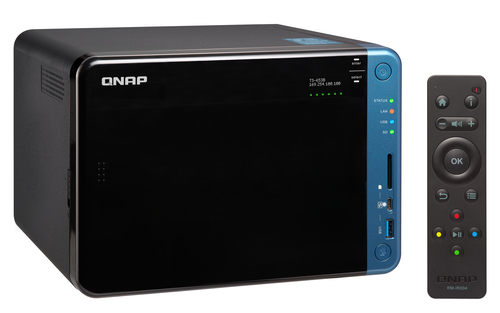

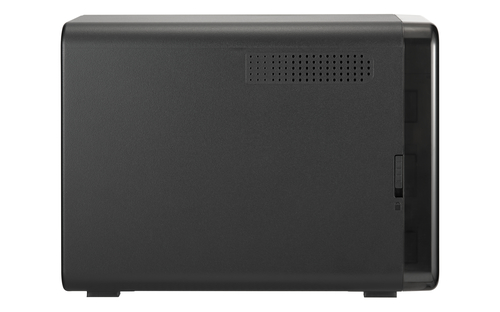

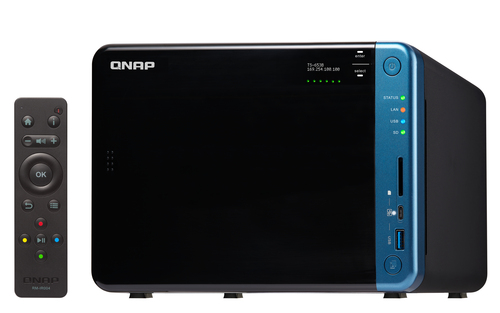

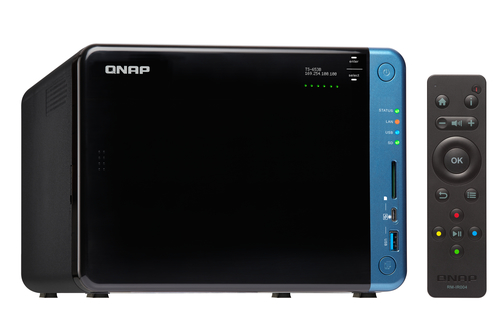

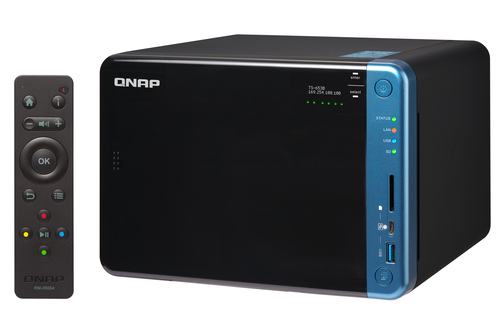

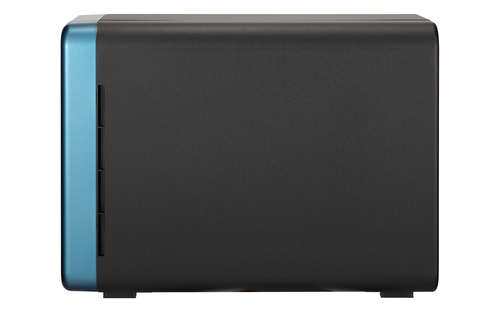

QNAP TS-653B-4G NAS Tower Intel® Celeron® J3455
QNAP

TS-653B-4G NAS Tower Intel® Celeron® J3455

4 GB DDR3L 6 TB HDD QNAP Turbo System Black

Model TS-653B-4GPart no. TS-653B-4G+6XST1000VN002

168 specifications
  • ProcessorIntel® Celeron®
  • Memory4 GB
  • Noise19.6 dB
  • TypeNAS
  • OSQNAP Turbo System
  • Weight3.02 kg
See all specifications

Overview

Processor
Intel® Celeron®
Memory
4 GB
Noise
19.6 dB
Type
NAS
OS
QNAP Turbo System
Weight
3.02 kg
Brand
QNAP
Model
TS-653B-4G
Part numbers
TS-653B-4G+6XST1000VN002, TS-653B-4G+6XST4000VN008, TS-653B-4G+6XST2000VN004
Also known as
QNAP TS-653B-4G NAS Tower Intel® Celeron® J3455 4 GB DDR3L 6 TB HDD QNAP Turbo System Black

Specifications

168 specifications in 15 groups

Storage

Storage drives installedYes
Total installed storage capacity6 TB
Number of storage drives installed6
Number of storage drives supported6
Installed storage drive typeHDD
Supported storage drive typesHDD & SSD
Storage drive capacity1 TB
Supported storage drive interfacesSerial ATA III
Storage drive sizes supported2.5,3.5"
RAID supportYes
RAID levels0, 1, 5, 6, 10, 50, 60, JBOD

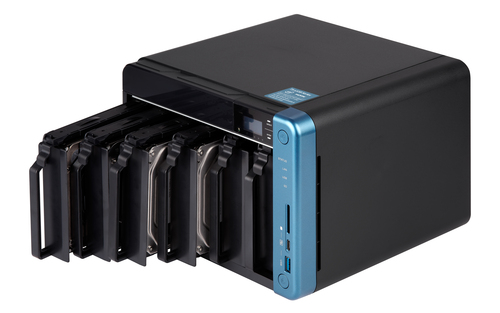

Hot-swap drive baysYes
Supported file systemsFAT32, HFS+, NTFS, ext3, ext4

Processor

Processor manufacturerIntel
Processor familyIntel® Celeron®
Processor modelJ3455
Processor frequency1.5 GHz
Processor boost frequency2.3 GHz
Processor cores4
Processor threads4
Processor cache2 MB
CPU configuration (max)1
ECC supported by processorNo
PCI Express configurations1x2+2x1, 4x1
PCI Express slots version2.0
Processor cache typeSmart Cache
Processor codeSR2Z9
Processor codenameApollo Lake
Processor lithography14 nm
Processor operating modes64-bit
Processor package size24 x 31 mm
Processor socketBGA 1296
SteppingB1
Thermal Design Power (TDP)10 W
Tjunction105 °C
On-board graphics card modelIntel® HD Graphics 500
Maximum internal memory supported by processor8 GB
Conflict-Free processorYes

Memory

Internal memory4 GB
Internal memory typeDDR3L
Maximum RAM supported8 GB
Memory form factorSO-DIMM
Memory slots2

Network

Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Wi-FiNo
DHCP clientYes
DHCP serverYes
Jumbo frames supportYes
iSCSI supportYes
Wake-on-LAN readyYes
Supported network protocolsTCP/IP, IPv4, IPv6, SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP

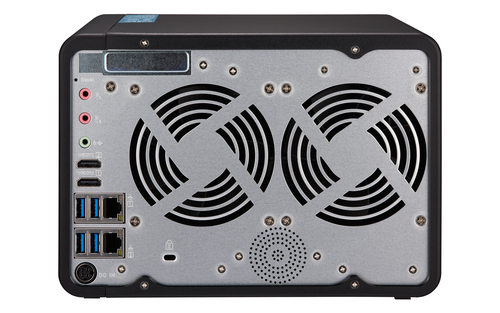

Ports & interfaces

Ethernet LAN (RJ-45) ports2
USB portYes
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity5
Fiber ports quantity0
HDMI ports quantity2
HDMI version1.4b
Audio in/outYes
Microphone inYes

Graphics

On-board graphics card base frequency250 MHz
On-board graphics card burst frequency750 MHz
On-board graphics card dynamic frequency (max)750 MHz
Maximum on-board graphics card memory8 GB
Number of displays supported (on-board graphics)3

Design

Chassis typeTower
Cooling typeActive
Product colourBlack
Number of fans2 fan(s)
Fan diameter9 cm
LED indicatorsHDD, LAN, Power, Status, USB
Built-in displayYes
Display typeOLED
Cable lock slotYes
Cable lock slot typeKensington
Built-in speaker(s)Yes
Number of built-in speakers1

Performance

TypeNAS
Device classSmall & Medium Business
Backup functionYes
Backup featuresCloud, iSCSI LUN
Multilingual supportYes
Noise level19.6 dB
Card reader integratedYes
Compatible memory cardsSD, SDXC
Web-based managementYes
Access Control List (ACL)Yes
Browser supportedInternet Explorer 10+, Chrome, Safari 7+, Firefox
Built-in FTP serverYes
Built-in iTunes serverYes
Hot spareYes
On/off switchYes
Remotely operatedYes
Reset buttonYes
S.M.A.R.T. supportYes
Security algorithms256-bit AES, HTTPS, SSH, SSL/TLS
Share folderCIFS/SMB
System logYes

Software

Operating system installedQNAP Turbo System
Operating system version4.3
Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 H
Linux operating systems supportedYes
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supportedWindows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2

Power

Power supply locationExternal
Power supply unit (PSU) capacity120 W
Number of power supply units1
Power consumption (typical)40.33 W
Power consumption (HDD standby)20.62 W
AC input voltage100 - 240 V

Weight & dimensions

Width235 mm
Depth226 mm
Height168 mm
Weight3.02 kg
Package weight4.63 kg

Packaging content

External power adapterYes
Cables includedAC, LAN (RJ-45)
Quick installation guideYes
Number of screws18
Remote control includedYes

Processor special features

Embedded options availableYes
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyYes
Intel Enhanced Halt StateYes
Intel Identity Protection Technology version1.00
Intel Rapid Storage TechnologyNo
Intel Secure BootYes
Intel Secure Boot Technology version1.00
Intel Secure Key Technology version1.00
Intel Small Business Advantage (SBA) version0.00
Intel Smart Connect TechnologyNo
Intel Smart Connect Technology version0.00
Intel Smart Response Technology version0.00
Intel Stable Image Platform Program (SIPP)No
Intel Stable Image Platform Program (SIPP) version0.00
Intel Trusted Execution TechnologyNo
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Anti-Theft Technology (Intel® AT)No
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Yes
Intel® High Definition Audio (Intel® HD Audio)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)No
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® InTru™ 3D TechnologyNo
Intel® Insider™No
Intel® OS GuardNo
Intel® Quick Sync Video TechnologyYes
Intel® Secure KeyYes
Intel® Small Business Advantage (Intel® SBA)No
Intel® Smart Response TechnologyNo
Intel® Turbo Boost TechnologyNo
Intel® Wireless Display (Intel® WiDi)No
Maximum number of PCI Express lanes6
Number of execution units12
Thermal Monitoring TechnologiesYes
UARTYes
Memory channels supported by processorDual
Memory types supported by processorDDR3L, LPDDR3-SDRAM, LPDDR4-SDRAM

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)5 - 95%

Other features

Processor ARK ID95594
