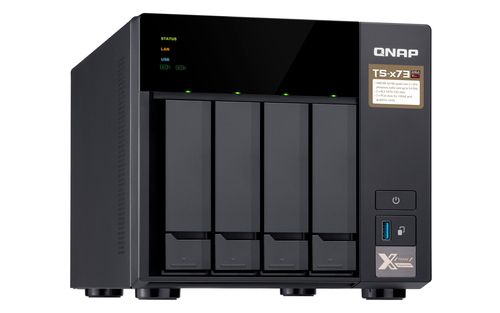

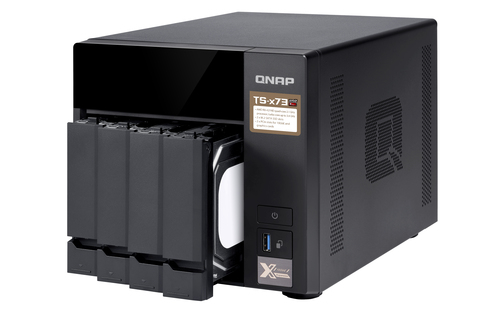

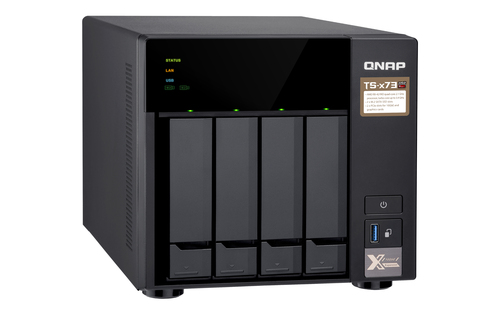

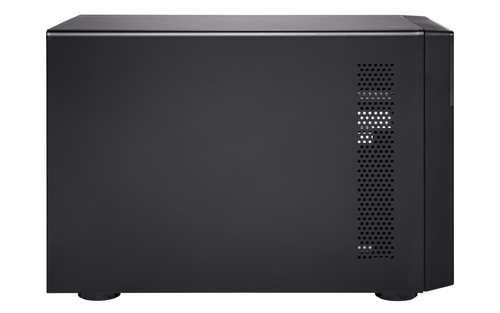

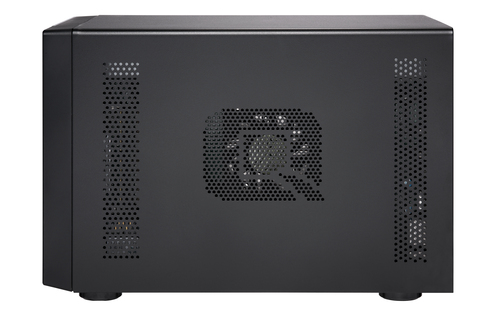

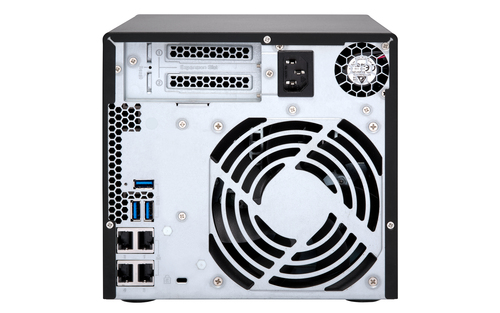

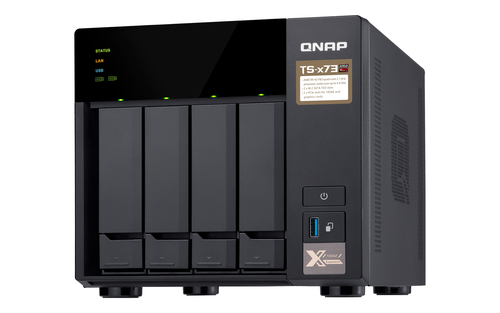

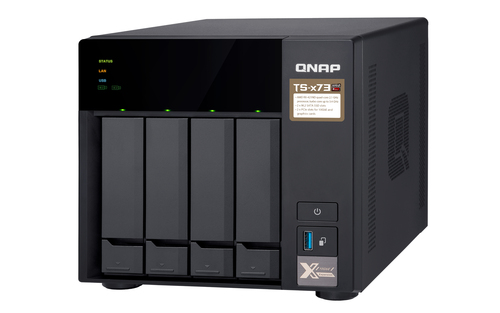

QNAP TS-473-4G NAS Tower AMD Embedded R-Series SoC RX-421ND

4 GB DDR4 16 TB HDD QNAP Turbo System Black

Model TS-473-4GPart no. TS-473-4G/16TB-IWEAN 5050914104054

107 specifications

Overview

Brand: QNAP
Category: NAS & Storage Servers
Model: TS-473-4G
Part number: TS-473-4G/16TB-IW
EAN / UPC: 5050914104054, 5051868067761, 5055628428199
Also known as: QNAP TS-473-4G NAS Tower AMD Embedded R-Series SoC RX-421ND 4 GB DDR4 16 TB HDD QNAP Turbo System Black

107 specifications in 13 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	16 TB
Number of storage drives installed	4
Number of storage drives supported	6
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Storage drive capacity	4 TB
Storage drive interface	Serial ATA III
Supported storage drive interfaces	Serial ATA III
Storage drive sizes supported	2.5,3.5"
Number of M.2 (M & B) slots	2
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD
Online RAID migration	Yes
Online RAID expansion	Yes
RAID rebuild	Yes
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, ext3, ext4
Bad block scan	Yes
Disk roaming	Yes

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Wi-Fi	No
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Dynamic DNS (DDNS)	Yes
Supported network protocols	CIFS/SMB, AFP (v3.3), NFS (v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, SMSC

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Fiber ports quantity	0
3.5 mm (1/8-inch) out	Yes
Microphone in	Yes
PCI Express x4 (Gen 3.x) slots	2

Specification	Value
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Multilingual support	Yes
Third-party support	Yes
Built-in optical drive	No
Card reader integrated	No
Snapshot	Yes
Web-based management	Yes
Access Control List (ACL)	Yes
Backup button	Yes
Browser supported	Internet Explorer 10+, Chrome, Safari 7+, Firefox
Built-in BitTorrent client	Yes
Built-in FTP server	Yes
Built-in iTunes server	Yes
Disk scan	Yes
Hot spare	Yes
On/off switch	Yes
Password authentication	Yes
S.M.A.R.T. support	Yes
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, SNMPv3, SSH, SSL/TLS
System log	Yes
Universal Plug and Play (UPnP)	Yes

Specification	Value
Operating system installed	QNAP Turbo System
Operating system version	4.3.4
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Linux operating systems supported	Yes
Mac compatibility	Yes
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	250 W
Number of power supply units	1
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%

Specification	Value
Digital Living Network Alliance (DLNA) certified	Yes
Power management	Yes
