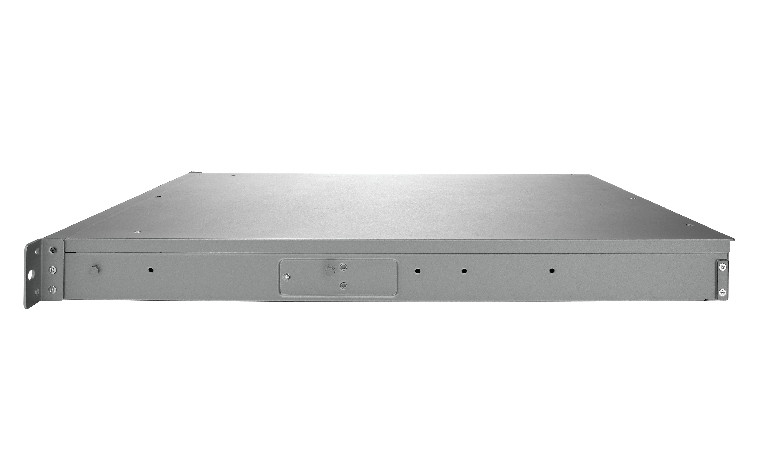

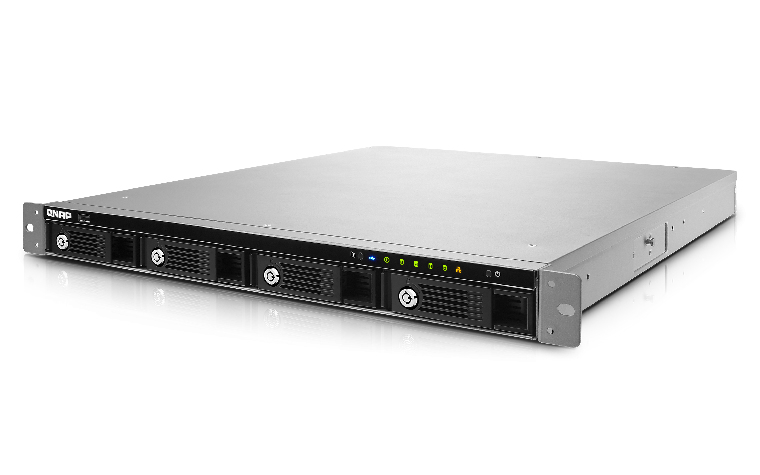

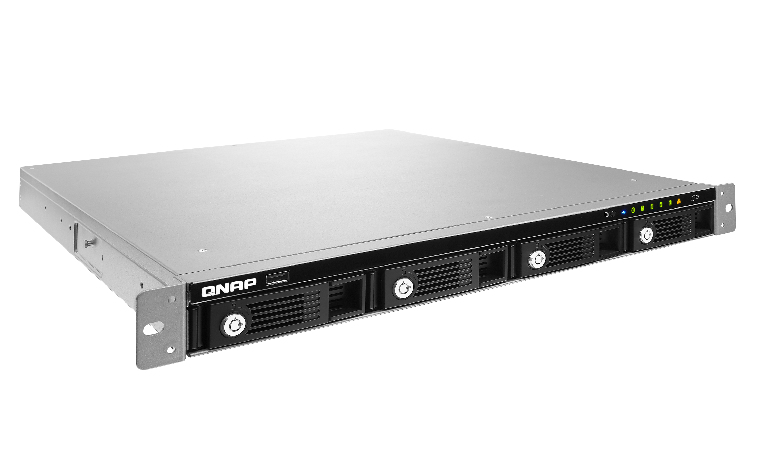

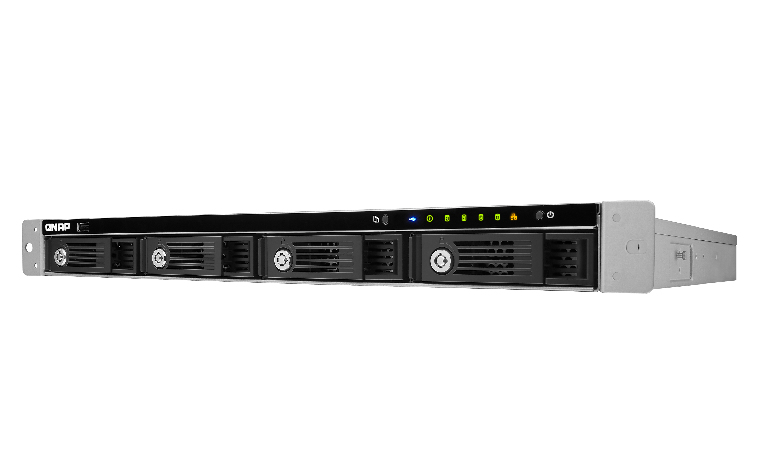

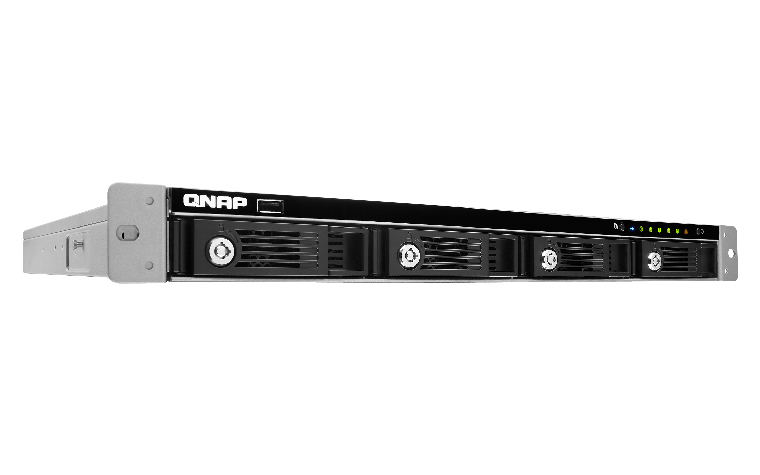

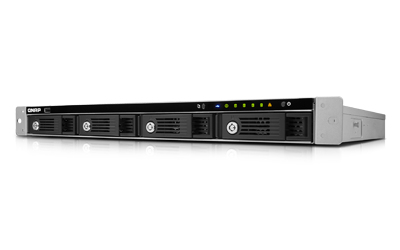

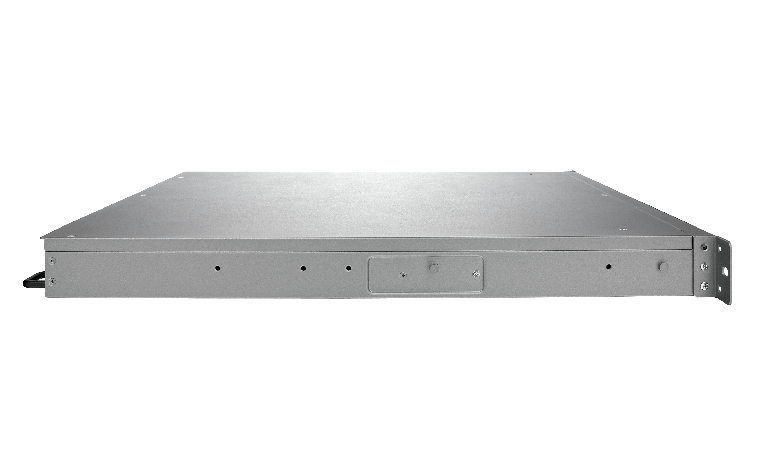

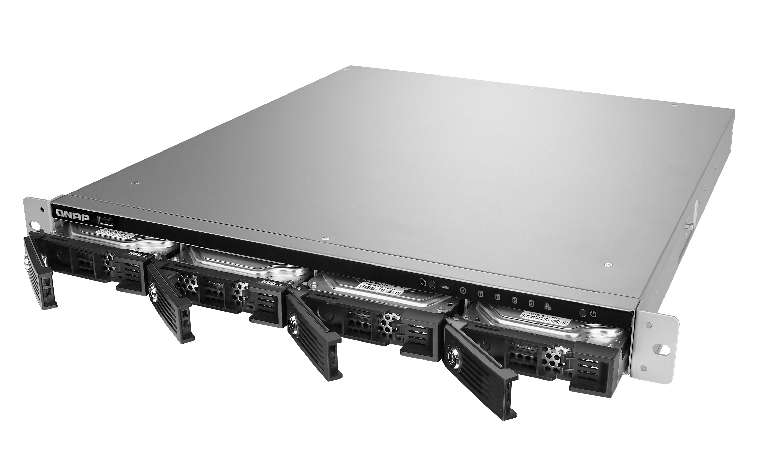

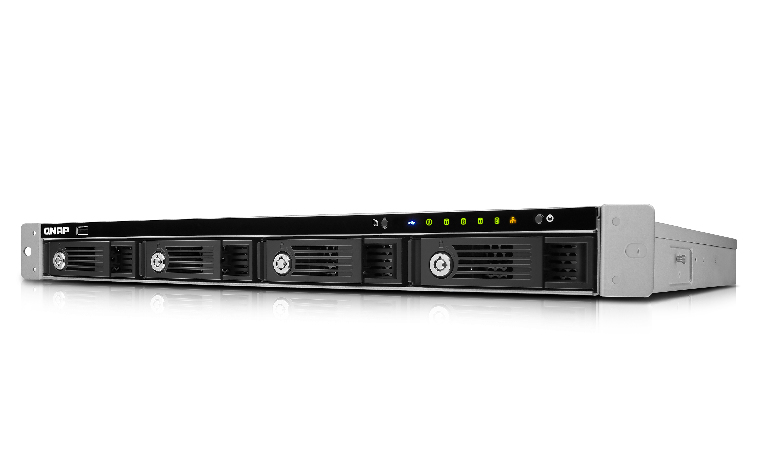

QNAP TS-470U-SP + 1X 0S03678

QNAP TS-470U-SP + 1X 0S03678

Model TS-470U-SP + 1X 0S03678

70 specifications
  • ProcessorIntel® Celeron®
  • Memory2 GB
  • TypeNAS
  • OSLinux
  • ColourBlack, Grey
  • Storage drives installedYes
See all specifications

Overview

Processor
Intel® Celeron®
Memory
2 GB
Type
NAS
OS
Linux
Colour
Black, Grey
Storage drives installed
Yes
Brand
QNAP
Model
TS-470U-SP + 1X 0S03678
Part number
TS-470U-SP + 1X 0S03678
Also known as
QNAP TS-470U-SP + 1X 0S03678 NAS/storage server Rack (1U) Intel® Celeron® 2 GB DDR3 16 TB HDD Linux Black, Grey

Specifications

70 specifications in 12 groups

Storage

Storage drives installedYes
Total installed storage capacity16 TB
Number of storage drives installed4
Number of storage drives supported4
Installed storage drive typeHDD
Supported storage drive typesHDD & SSD
Storage drive capacity4 TB
Storage drive interfaceSerial ATA II, Serial ATA III
Storage drive size2.5/3.5"
RAID supportYes
RAID levels0, 1, 5, 6, 10
Hot-swap drive baysYes
Supported file systemsext3, ext4, FAT32, HFS+, NTFS

Processor

Processor familyIntel® Celeron®
Processor frequency2.7 GHz
Processor cores2

Memory

Internal memory2 GB
Internal memory typeDDR3
Maximum RAM supported16 GB
Memory slots2
Flash memory512 MB

Network

Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Wi-FiNo
DHCP clientYes
DHCP serverYes
Jumbo frames supportYes
iSCSI supportYes
Wake-on-LAN readyYes
Supported network protocolsCIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC

Ports & interfaces

Ethernet LAN (RJ-45) ports4
USB 2.0 ports quantity5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Fiber ports quantity0
HDMI ports quantity1

Design

Chassis typeRack (1U)
Cooling typeActive
Product colourBlack, Grey
Number of fans2 fan(s)
Fan diameter4 cm
LED indicatorsYes
Cable lock slotYes
Cable lock slot typeKensington

Performance

TypeNAS
Device classSmall & Medium Business
Backup functionYes
Backup featuresCloud, iSCSI LUN
BuzzerYes
Multilingual supportYes
Web-based managementYes
Access Control List (ACL)Yes
On/off switchYes
Reset buttonYes

Software

Operating system installedLinux
Windows operating systems supportedYes
Linux operating systems supportedYes
Mac operating systems supportedYes

Power

Power supply locationBuilt-in
Power supply unit (PSU) capacity250 W
Number of power supply units2
Redundant power supply (RPS) supportYes
AC input voltage100-240 V
AC input frequency50 - 60 Hz
Fan voltage12 V

Weight & dimensions

Width439 mm
Depth499 mm
Height44 mm

Packaging content

Cables includedAC, LAN (RJ-45)

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)5 - 95%
