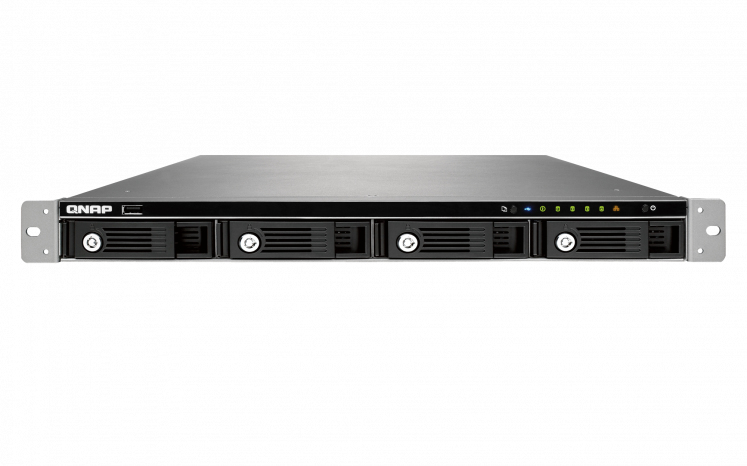

QNAP TS-469U-RP 2x2TB

Model TS-469U-RP 2x2TBPart no. TS-469U-RP/2X2,0TBEAN 4050487692447

107 specifications

Overview

Brand: QNAP
Category: NAS & Storage Servers
Model: TS-469U-RP 2x2TB
Part number: TS-469U-RP/2X2,0TB
EAN / UPC: 4050487692447, 4050487773665
Also known as: QNAP TS-469U-RP 2x2TB Rack (1U) Intel Atom® D2700 1 GB DDR3 4 TB QNAP Turbo NAS System Black

107 specifications in 15 groups

Specification	Value
Total installed storage capacity	4 TB
Number of storage drives installed	2
Number of storage drives supported	4
Storage drive capacity	2 TB
Storage drive interface	Serial ATA II, Serial ATA III
Storage drive size	2.5/3.5"
Maximum supported storage capacity	16 TB
RAID levels	0, 1, 5, 6, 10, JBOD
Hot-swap drive bays	Yes
Supported file systems	ext3, ext4, FAT32, HFS+, NTFS

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D2700
Processor frequency	2.13 GHz
Processor cores	2
Processor threads	4
Processor cache	1 MB
L3 cache	1 MB
Bus type	DMI
ECC supported by processor	No
Number of processors installed	1
Physical Address Extension (PAE)	36 bit
Processor cache type	L2
Processor code	SR0D9
Processor codename	Cedarview
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	22 X 22 mm
Processor socket	BGA 559
Stepping	B2
System bus rate	2.5 GT/s
Thermal Design Power (TDP)	10 W
Tjunction	100 °C
Maximum internal memory supported by processor	4 GB
Memory bandwidth supported by processor (max)	6.4 GB/s

Specification	Value
Wi-Fi	No
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Compliance industry standards	IEEE 802.3ad
Cabling technology	10/100/1000Base-T(X)
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, SMSC

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
VGA (D-Sub) ports quantity	1
eSATA ports quantity	2
WAN connection	Ethernet (RJ-45)
eSATA	Yes

Specification	Value
On-board graphics card base frequency	640 MHz
Number of displays supported (on-board graphics)	2

Specification	Value
Operating system installed	QNAP Turbo NAS System

Specification	Value
Power supply unit (PSU) capacity	300 W
Number of power supply units	1
Redundant power supply (RPS) support	Yes
Power consumption (typical)	52 W
Power consumption (sleep)	37 W

Specification	Value
Cables included	AC, LAN (RJ-45)

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Intel 64	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel ME Firmware Version	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	No
Maximum number of PCI Express lanes	4
Physical Address Extension (PAE)	Yes
Memory channels supported by processor	Single
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 95%

Specification	Value
Compatible operating systems	Windows XP, Vista, 7, Server 2003/2008 R2 Apple Mac OS X Linux & UNIX
Data transfer rate	6 Gbit/s
Fan	11.5
Networking features	Dual Gigabit Ethernet
Power requirements	100-240V
Processor ARK ID	59683
