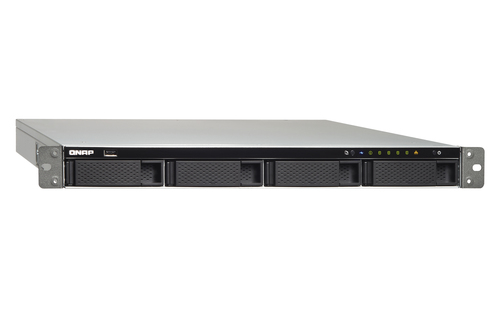

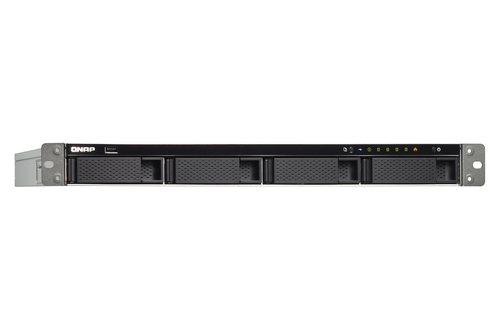

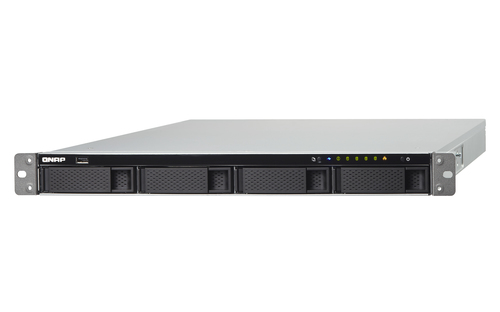

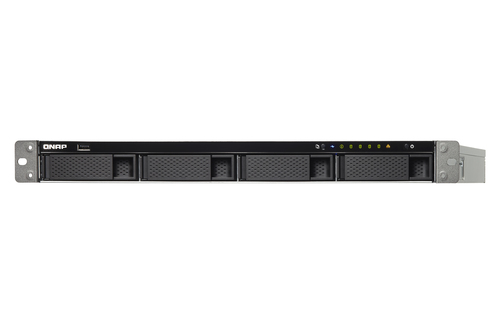

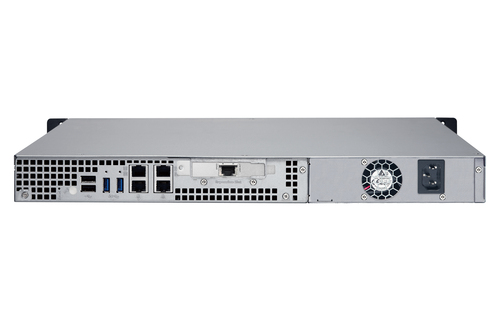

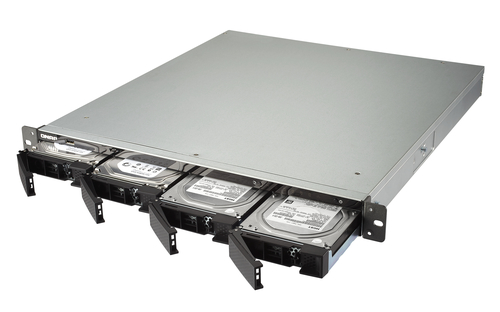

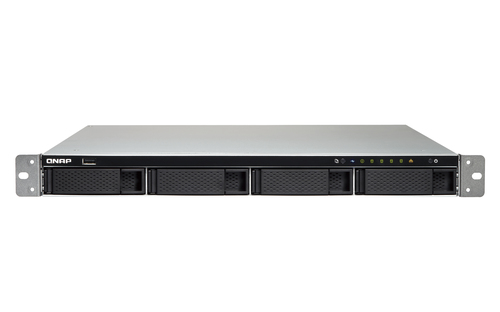

QNAP TS-463XU-4G NAS Rack (1U) AMD G GX-420MC
QNAP

TS-463XU-4G NAS Rack (1U) AMD G GX-420MC

4 GB DDR3 4 TB HDD QNAP Turbo System Black

Model TS-463XU-4GPart no. TS-463XU-4G+4XST1000VN002

91 specifications
  • ProcessorAMD G
  • Memory4 GB
  • Noise36.5 dB
  • TypeNAS
  • OSQNAP Turbo System
  • Weight7.63 kg
See all specifications

Overview

Processor
AMD G
Memory
4 GB
Noise
36.5 dB
Type
NAS
OS
QNAP Turbo System
Weight
7.63 kg
Brand
QNAP
Model
TS-463XU-4G
Part numbers
TS-463XU-4G+4XST1000VN002, TS-463XU-4G+4XST4000VN008, TS-463XU-4G+4XST2000VN004
Also known as
QNAP TS-463XU-4G NAS Rack (1U) AMD G GX-420MC 4 GB DDR3 4 TB HDD QNAP Turbo System Black

Specifications

91 specifications in 12 groups

Storage

Storage drives installedYes
Total installed storage capacity4 TB
Number of storage drives installed4
Number of storage drives supported4
Installed storage drive typeHDD
Supported storage drive typesHDD & SSD
Storage drive capacity1 TB
Supported storage drive interfacesSerial ATA III
Storage drive sizes supported2.5,3.5"
RAID supportYes
RAID levels0, 1, 5, 6, 10, 50, 60, JBOD
Online RAID migrationYes
Online RAID expansionYes
Hot-swap drive baysYes
Supported file systemsFAT32, HFS+, NTFS, ext3, ext4

Processor

Processor familyAMD G
Processor modelGX-420MC
Processor frequency2 GHz
Processor cores4
Processor operating modes64-bit

Memory

Internal memory4 GB
Internal memory typeDDR3
Maximum RAM supported16 GB
Memory form factorSO-DIMM
Memory slots2
Flash memory512 MB

Network

Ethernet LANYes
Ethernet LAN data rates10,100,1000,10000 Mbit/s
Ethernet LAN data rate supported (max)10000 Mbit/s
Copper ethernet cabling technology10BASE-T, 1000BASE-T
Wi-FiNo
DHCP serverYes
Jumbo frames supportYes
iSCSI supportYes
Wake-on-LAN readyYes
Supported network protocolsPPTP, L2TP/IPSec, OpenVPN VPN

Ports & interfaces

Ethernet LAN (RJ-45) ports4
USB portYes
USB 2.0 ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Fiber ports quantity0

Design

Chassis typeRack (1U)
Cooling typeActive
Product colourBlack
Number of fans2 fan(s)
Fan diameter4 cm
LED indicatorsHDD, LAN, Status, USB
Cable lock slotYes
Cable lock slot typeKensington

Performance

TypeNAS
Device classHome & Home Office
Backup functionYes
Backup featuresCloud, USB drive, iSCSI LUN
BuzzerYes
Multilingual supportYes
Noise level36.5 dB
Share folder access right managementYes
Web-based managementYes
Access Control List (ACL)Yes
Browser supportedSafari 7+, Chrome, Internet Explorer 10+, Firefox
Hot spareYes
On/off switchYes
Reset buttonYes
S.M.A.R.T. supportYes
Security algorithms256-bit AES, FIPS 140-2, HTTPS, SSH
Share folderCIFS/SMB
System logYes
Universal Plug and Play (UPnP)Yes

Software

Operating system installedQNAP Turbo System
Operating system version4.3.4
Windows operating systems supportedWindows 10, Windows 7, Windows 8
Linux operating systems supportedYes
Mac operating systems supportedYes
Server operating systems supportedWindows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016

Power

Power supply locationBuilt-in
Power supply unit (PSU) capacity250 W
Number of power supply units1
Power consumption (typical)50.46 W
Power consumption (HDD standby)34.06 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Output current5 A

Weight & dimensions

Width439 mm
Depth499 mm
Height44 mm
Weight7.63 kg
Package weight11.6 kg

Packaging content

Cables includedAC, LAN (RJ-45)
Quick installation guideYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)5 - 95%
