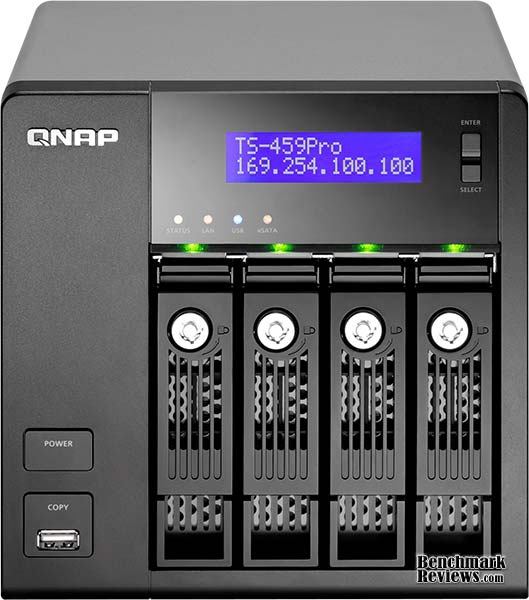

QNAP TS-459 Pro+

Model TS-459 Pro+Part no. TS-459 PRO+/2TBEAN 5051868514128

98 specifications

Overview

Brand: QNAP
Category: NAS & Storage Servers
Model: TS-459 Pro+
Part numbers: TS-459 PRO+/2TB, TS-459 PRO+, TS-459 PRO+/4TB, TS-459 PRO+/8TB
EAN / UPC: 5051868514128, 4712511121773, 5050914354251, 5050914657208 +1 more
Also known as: QNAP TS-459 Pro+ Tower Intel Atom® D525 1 GB DDR2 0 TB Linux

98 specifications in 13 groups

Specification	Value
Total installed storage capacity	0 TB
Number of storage drives supported	4
Storage drive capacity	0 GB
Storage drive interface	Serial ATA
Storage drive size	3.5"
Maximum supported storage capacity	8 TB
RAID levels	0, 1, 5, 6
Hot-swap drive bays	Yes
Supported file systems	EXT3, EXT4, FAT32, HFS+, NTFS

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D525
Processor frequency	1.8 GHz
Processor cores	2
Processor threads	4
Processor cache	1 MB
L2 cache	1 MB
Bus type	DMI
Compatible processor series	Intel Atom®
ECC supported by processor	No
Number of processors installed	1
Physical Address Extension (PAE)	32 bit
Processing Die size	87 mm²
Processor cache type	L2
Processor code	SLBXC
Processor codename	Pineview
Processor lithography	45 nm
Processor operating modes	64-bit
Processor package size	22 x 22 mm
Processor socket	BGA 559
Stepping	B0
Thermal Design Power (TDP)	13 W
Tjunction	100 °C
Maximum internal memory supported by processor	4 GB
Memory bandwidth supported by processor (max)	6.4 GB/s
Conflict-Free processor	No

Specification	Value
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Compliance industry standards	IEEE802.3, IEEE802.3u, IEEE802.3ab
Cabling technology	10/100/1000Base-T(X)
Data link protocols	TCP/IP
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	CIFS/SMB, AFP (3.2), NFS (v3), FTP, HTTP, HTTPS, Telnet, SSH, iSCSI

Specification	Value
Operating system installed	Linux

Specification	Value
Power supply unit (PSU) capacity	250 W
Power consumption (typical)	35 W
Power consumption (sleep)	19 W

Specification	Value
Weight	3.65 kg

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Demand Based Switching	No
Intel Enhanced Halt State	No
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	No
Number of Processing Die Transistors	176 M
Thermal Monitoring Technologies	No
Memory channels supported by processor	Single

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95%

Specification	Value
Compatible operating systems	Windows 2000/XP/Vista/7/Server 2003/Server 2008 Mac Linux Unix
Dimensions (WxDxH)	180 x 235 x 177 mm
Fan	90mm, 12V DC
Link/Act LED	Yes
Networking features	Gigabit Ethernet
Power requirements	100-240V AC, 50/60Hz
Processor ARK ID	49490
Connectivity LEDs	Yes
