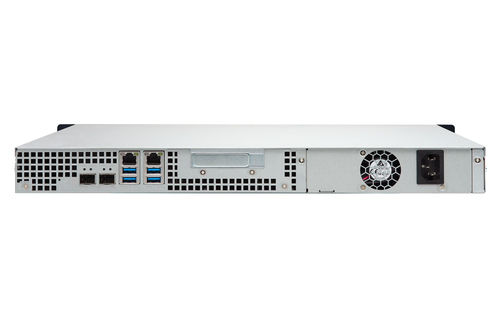

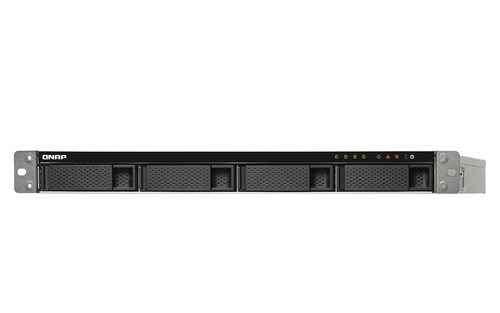

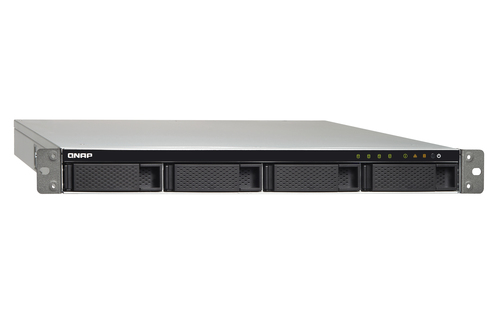

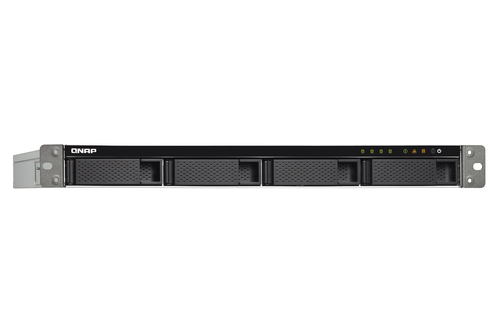

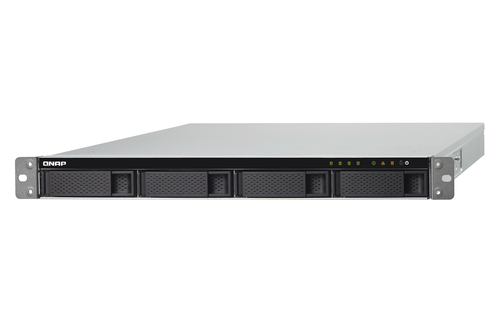

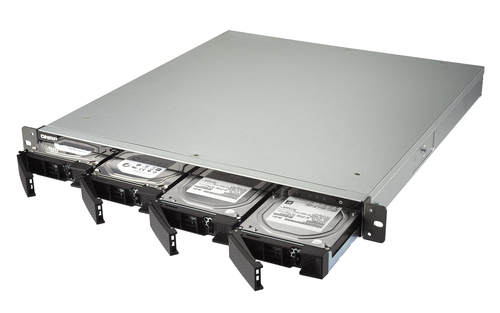

QNAP TS-432XU NAS Rack (1U) Annapurna Labs Alpine AL-324

QNAP TS-432XU NAS Rack (1U) Annapurna Labs Alpine AL-324

2 GB DDR4 0 TB QNAP Turbo System Black

Model TS-432XUPart no. TS-432XU-RP-2G-24TB-GLDEAN 5051868076534

70 specifications

ProcessorAnnapurna Labs
Memory2 GB
TypeNAS
OSQNAP Turbo System
ColourBlack
Storage drives installedNo

See all specifications

Overview

Processor: Annapurna Labs
Memory: 2 GB
Type: NAS
OS: QNAP Turbo System
Colour: Black
Storage drives installed: No

Brand: QNAP
Category: NAS & Storage Servers
Model: TS-432XU
Part numbers: TS-432XU-RP-2G-24TB-GLD, TS-432XU-2G, TS-432XU-RP-2G-12TB, TS-432XU-RP-2G-16TB, TS-432XU-RP-2G-8TB, TS-432XU-RP-2G-24TB-IW +34 more
EAN / UPC: 5051868076534, 818215134515, 4713213513439, 5050914101008 +56 more
Also known as: QNAP TS-432XU NAS Rack (1U) Annapurna Labs Alpine AL-324 2 GB DDR4 0 TB QNAP Turbo System Black

Specifications

70 specifications in 11 groups

Storage

Specification	Value
Storage drives installed	No
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	4
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Storage drive capacity	0 GB
Supported storage drive interfaces	Serial ATA III
Storage drive sizes supported	2.5,3.5"
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD
Online RAID migration	Yes
Online RAID expansion	Yes
Supported file systems	FAT32, HFS+, NTFS, ext3, ext4

Processor

Specification	Value
Processor family	Annapurna Labs
Processor model	Alpine AL-324
Processor frequency	1.7 GHz
Processor cores	4

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR4
Maximum RAM supported	16 GB
Memory form factor	SO-DIMM
Memory slots	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10000 Mbit/s
Ethernet LAN data rate supported (max)	10000 Mbit/s
Wi-Fi	No
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
Wake-on-LAN ready	Yes
Dynamic DNS (DDNS)	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB port	Yes
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Fiber ports quantity	2
Fiber optic connector	SFP+

Design

Specification	Value
Chassis type	Rack (1U)
Cooling type	Active
Product colour	Black
Number of fans	2 fan(s)
Fan diameter	4 cm

Performance

Specification	Value
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	iSCSI LUN
Snapshot	Yes
Browser supported	Apple Safari 7, Google Chrome, Microsoft Internet Explorer 10, Mozilla Firefox
Hot spare	Yes
Security algorithms	256-bit AES

Software

Specification	Value
Operating system installed	QNAP Turbo System
Operating system version	4.3.4
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac compatibility	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016

Power

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	250 W
Number of power supply units	1
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Fan voltage	12 V
Output current	3.5 A

Weight & dimensions

Specification	Value
Width	439 mm
Depth	499 mm
Height	44 mm

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
