TS-432XeU NAS Rack (1U)
4 GB DDR4 0 TB QNAP QTS Black, Grey
Model TS-432XeUPart no. TS-432XEU-4GEAN 4711103091708
61 specifications
- Memory4 GB
- TypeNAS
- OSQNAP QTS
- Weight4.91 kg
- ColourBlack, Grey
- Storage drives installedNo
Overview
- Memory
- 4 GB
- Type
- NAS
- OS
- QNAP QTS
- Weight
- 4.91 kg
- Colour
- Black, Grey
- Storage drives installed
- No
- Brand
- QNAP
- Category
- NAS & Storage Servers
- Model
- TS-432XeU
- Part number
- TS-432XEU-4G
- EAN / UPC
- 4711103091708
- Also known as
- QNAP TS-432XeU NAS Rack (1U) 4 GB DDR4 0 TB QNAP QTS Black, Grey
Specifications
61 specifications in 11 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Total installed storage capacity | 0 TB |
| Number of storage drives installed | 0 |
| Number of storage drives supported | 4 |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Storage drive capacity | 0 GB |
| Supported storage drive interfaces | Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 3.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, JBOD |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| RAID rebuild | Yes |
| Hot-swap drive bays | Yes |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Annapurna Labs |
| Processor frequency | 1.7 GHz |
| Processor cores | 4 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR4 |
| Memory form factor | SO-DIMM |
| Flash memory | 4000 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| DHCP server | Yes |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| Wake-on-LAN ready | Yes |

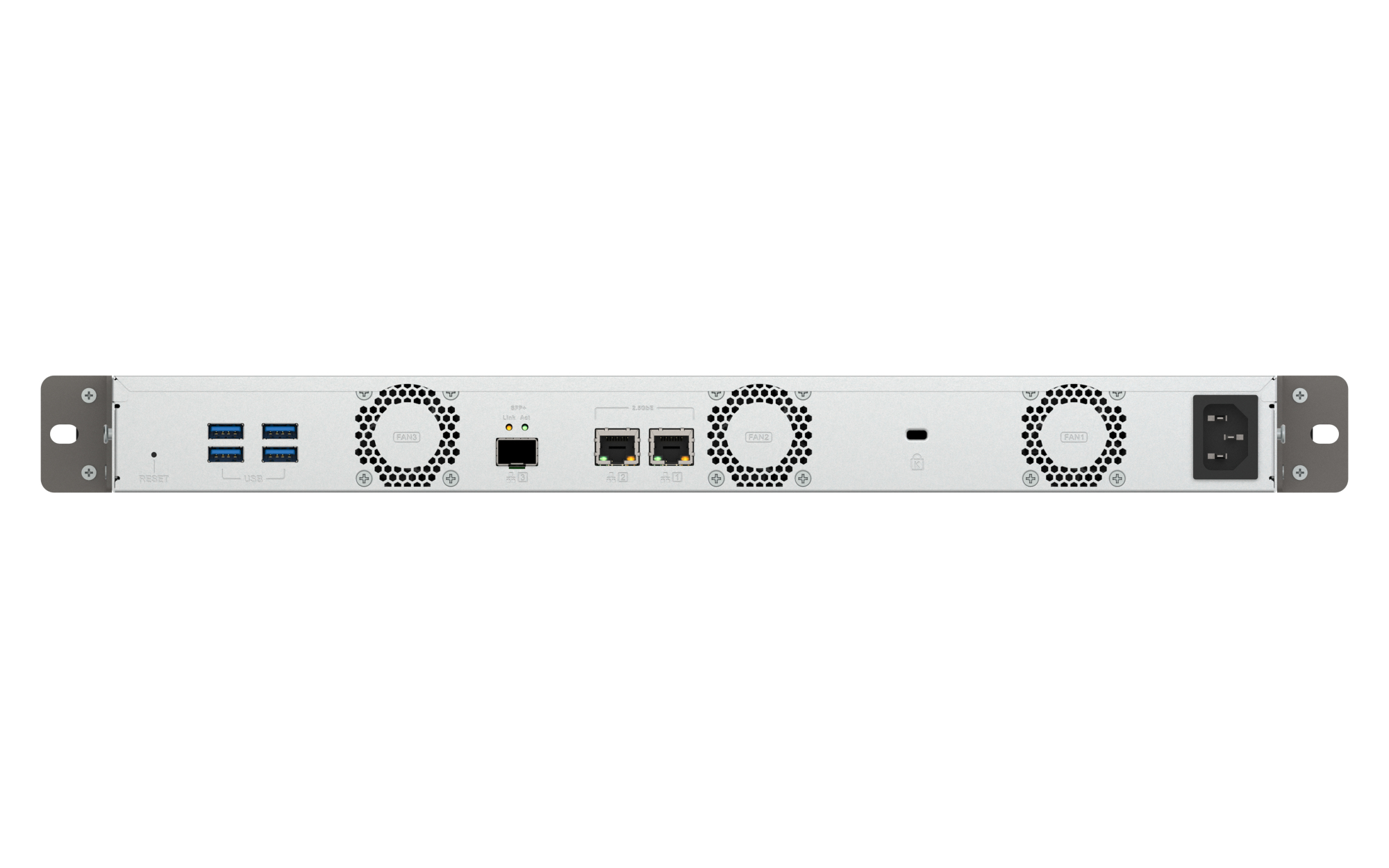

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP+ |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Cooling type | Active |
| Product colour | Black, Grey |
| Number of fans | 3 fan(s) |
| Fan diameter | 4 cm |
Performance
| Specification | Value |
|---|---|
| Type | NAS |
| Device class | Home & Home Office |
| Backup function | Yes |
| Buzzer | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | QNAP QTS |
| Operating system version | 5.2.9 |
Power
| Specification | Value |
|---|---|
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 100 W |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| Fan voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482.6 mm |
| Depth | 290.1 mm |
| Height | 43.3 mm |
| Weight | 4.91 kg |
| Package width | 461 mm |
| Package depth | 170 mm |
| Package height | 582 mm |
| Package weight | 5.28 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
