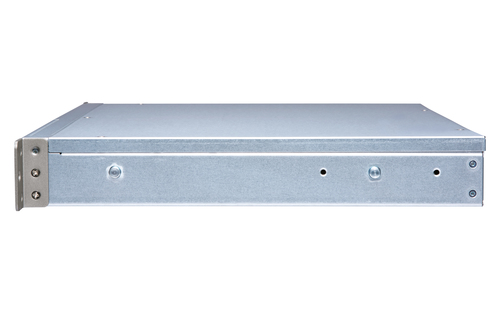

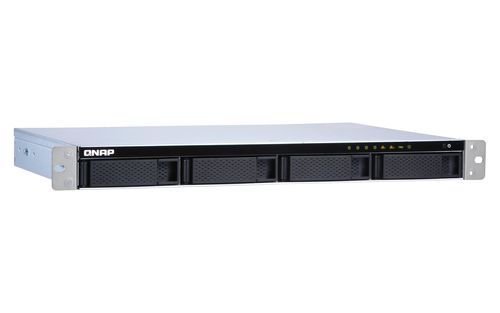

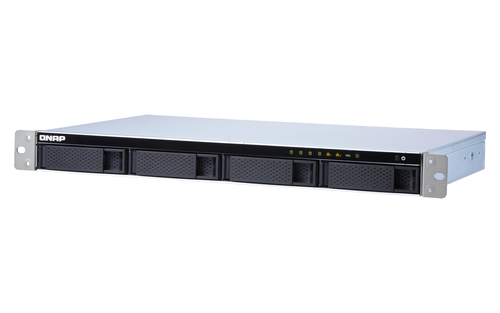

TS-431XEU-2G NAS Rack (1U) Annapurna Labs Alpine AL-314

2 GB DDR3 32 TB HDD QNAP Turbo System Black, Grey

Model TS-431XEU-2GPart no. TS-431XEU-2G + 4X ST8000VN004

122 specifications

ProcessorAnnapurna Labs
Memory2 GB
Noise20.3 dB
TypeNAS
OSQNAP Turbo System
Weight4.15 kg

See all specifications

Overview

Processor: Annapurna Labs
Memory: 2 GB
Noise: 20.3 dB
Type: NAS
OS: QNAP Turbo System
Weight: 4.15 kg

Brand: QNAP
Category: NAS & Storage Servers
Model: TS-431XEU-2G
Part numbers: TS-431XEU-2G + 4X ST8000VN004, TS-431XEU-2G + 4X ST6000VN001, TS-431XEU-2G + 4X ST4000VN006
Also known as: QNAP TS-431XEU-2G NAS Rack (1U) Annapurna Labs Alpine AL-314 2 GB DDR3 32 TB HDD QNAP Turbo System Black, Grey

Specifications

122 specifications in 12 groups

Storage

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	32 TB
Number of storage drives installed	4
Number of storage drives supported	4
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Storage drive capacity	8 TB
Storage drive interface	Serial ATA III
Supported storage drive interfaces	Serial ATA II, Serial ATA III
Storage drive size	3.5"
Storage drive sizes supported	2.5,3.5"
HDD speed	7200 RPM
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD
Online RAID migration	Yes
Online RAID expansion	Yes
RAID rebuild	Yes
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, exFAT, ext3, ext4
Auto-rebuild	Yes
Bad block scan	Yes
Disk roaming	Yes

Processor

Specification	Value
Processor manufacturer	Annapurna Labs
Processor family	Annapurna Labs
Processor model	Alpine AL-314
Processor frequency	1.7 GHz
Processor cores	4
Processor architecture	ARM Cortex-A15

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3
Memory clock speed	1600 MHz
Maximum RAM supported	8 GB
Memory form factor	SO-DIMM
Memory slots	1
Flash memory	512 MB

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,10000 Mbit/s
Ethernet LAN data rate supported (max)	10000 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Dynamic DNS (DDNS)	Yes
Link aggregation	Yes
Supported network protocols	CIFS/SMB, AFP v3.3, NFS v3, FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB port	Yes
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Fiber ports quantity	1
Fiber optic connector	SFP+

Design

Specification	Value
Chassis type	Rack (1U)
Cooling type	Active
Product colour	Black, Grey
Number of fans	3 fan(s)
Fan diameter	4 cm
LED indicators	HDD, LAN, Status, USB
Built-in display	No
Cable lock slot	Yes
Cable lock slot type	Kensington
Built-in speaker(s)	No

Performance

Specification	Value
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Number of users	4096 user(s)
Noise level	20.3 dB
Third-party support	Yes
Video input channels	2 channels
Card reader integrated	No
Snapshot	Yes
Management protocols	SNMP v2/3
Share folder access right management	Yes
Web-based management	Yes
Access Control List (ACL)	Yes
Browser supported	Apple Safari 7+, Google Chrome, Microsoft Internet Explorer 10+, Mozilla Firefox
Built-in FTP server	Yes
Built-in iTunes server	Yes
Disk scan	Yes
Hot spare	Yes
On/off switch	Yes
Password authentication	Yes
Reset button	Yes
S.M.A.R.T. support	Yes
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, SSH
Share folder	512
System log	Yes
USB copy function	No
Universal Plug and Play (UPnP)	Yes

Software

Specification	Value
Operating system installed	QNAP Turbo System
Operating system version	5.0.0
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Power

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	100 W
Number of power supply units	1
Redundant power supply (RPS) support	No
Power consumption (typical)	30.99 W
Power consumption (HDD standby)	12.42 W
AC input voltage	100 - 240 V
AC input frequency	50 / 60 Hz
Fan voltage	12 V

Weight & dimensions

Specification	Value
Width	439 mm
Depth	291 mm
Height	44 mm
Weight	4.15 kg
Package weight	5.78 kg

Packaging content

Specification	Value
External power adapter	No
Cables included	AC, LAN (RJ-45)
Power cables quantity	1
Rack mount kit	Yes
Remote control included	No

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 70 °C
