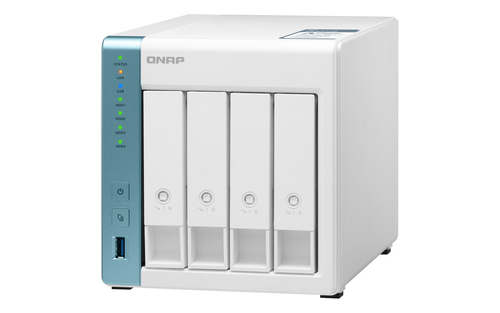

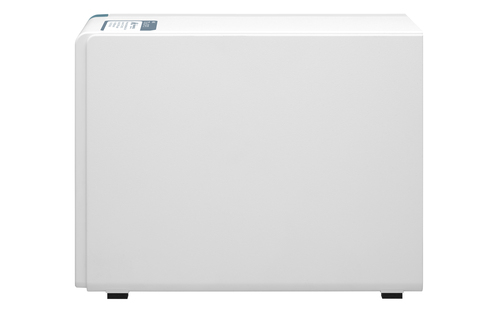

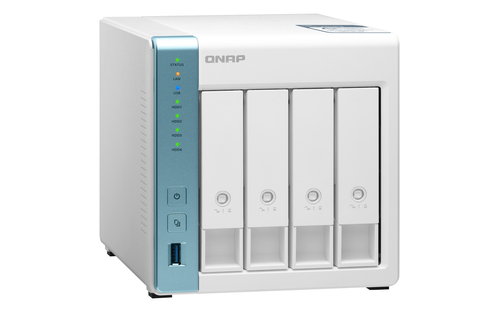

TS-431P3 NAS Tower Annapurna Labs AL314

4 GB DDR3 0 TB QNAP QTS White

Model TS-431P3Part no. TS-431P3-2G-USEAN 885022018901

110 specifications

ProcessorAnnapurna Labs
Memory4 GB
Noise19.5 dB
TypeNAS
OSQNAP QTS
Weight3 kg

See all specifications

Overview

Processor: Annapurna Labs
Memory: 4 GB
Noise: 19.5 dB
Type: NAS
OS: QNAP QTS
Weight: 3 kg

Brand: QNAP
Category: NAS & Storage Servers
Model: TS-431P3
Part numbers: TS-431P3-2G-US, TS-431P3-4G-US, TS-431P3-2G + 4X ST4000VN008, TS-431P3-4G + 4X ST1000VN002, TS-431P3-2G + 4X ST2000VN004, TS-431P3-2G + 4X ST1000VN002 +34 more
EAN / UPC: 885022018901, 885022018895, 5051868151583, 5050914162665 +25 more
Also known as: QNAP TS-431P3 NAS Tower Annapurna Labs AL314 4 GB DDR3 0 TB QNAP QTS White

Specifications

110 specifications in 14 groups

Storage

Specification	Value
Storage drives installed	No
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	4
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Storage drive capacity	0 GB
Supported storage drive interfaces	Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5,3.5"
Number of system drives installed	1
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD
Online RAID migration	Yes
Online RAID expansion	Yes
RAID rebuild	Yes
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, ext3, ext4
Auto-rebuild	Yes
Bad block scan	Yes
Disk roaming	Yes

Processor

Specification	Value
Processor manufacturer	Annapurna Labs
Processor family	Annapurna Labs
Processor model	AL314
Processor frequency	1.7 GHz
Processor cores	4
Number of processors supported	1

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3
Maximum RAM supported	8 GB
Memory form factor	SO-DIMM
Memory slots	1
Flash memory	512 MB

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000,2500 Mbit/s
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Dynamic DNS (DDNS)	Yes
Link aggregation	Yes
Load balancing system	Yes
WLAN adapter supported	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB port	Yes
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Fiber ports quantity	0

Design

Specification	Value
Chassis type	Tower
Cooling type	Active
Product colour	White
Number of fans	1 fan(s)
Fan diameter	12 cm
Drive bay locking	Yes
LED indicators	HDD, LAN, Power, Status, USB
Cable lock slot	Yes
Cable lock slot type	Kensington

Performance

Specification	Value
Type	NAS
Device class	Home & Home Office
Backup function	Yes
Backup features	Cloud, USB drive, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Noise level	19.5 dB
Third-party support	Yes
Snapshot	Yes
Share folder access right management	Yes
Web-based management	Yes
Access Control List (ACL)	Yes
Browser supported	Mozilla Firefox, Microsoft Edge, Google Chrome, Apple Safari
Built-in BitTorrent client	Yes
Built-in FTP server	Yes
Disk scan	Yes
Hot spare	Yes
On/off switch	Yes
Password authentication	Yes
Reset button	Yes
S.M.A.R.T. support	Yes
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, SSH
Share folder	AFP, CIFS/SMB, FTP, WebDAV
System log	Yes
USB copy function	Yes
Universal Plug and Play (UPnP)	Yes

Software

Specification	Value
Operating system installed	QNAP QTS
Operating system version	5.0.0
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.10 Yosemite
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Power

Specification	Value
Power supply location	External
Power supply unit (PSU) capacity	90 W
Number of power supply units	1
Power consumption (typical)	26.7 W
Power consumption (sleep)	11.65 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Fan voltage	12 V

Weight & dimensions

Specification	Value
Width	160 mm
Depth	219 mm
Height	169 mm
Weight	3 kg
Package weight	4.3 kg

Packaging content

Specification	Value
External power adapter	Yes
Cables included	AC, LAN (RJ-45)
Number of screws	28

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 70 °C

Logistics data

Specification	Value
Harmonized System (HS) code	84714100

Other features

Specification	Value
Digital Living Network Alliance (DLNA) certified	Yes
