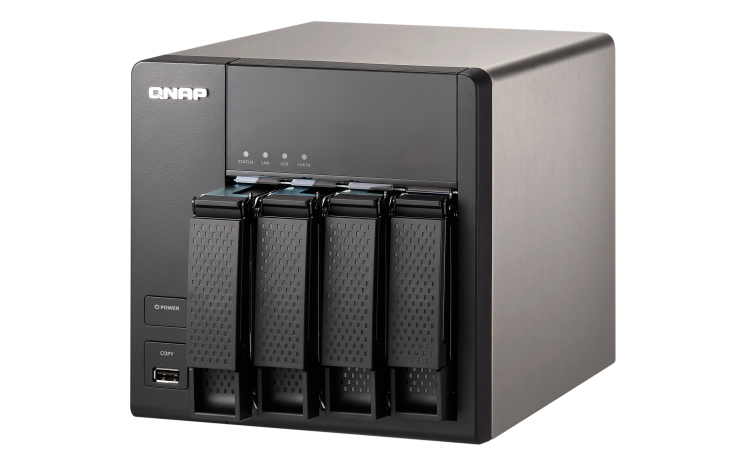

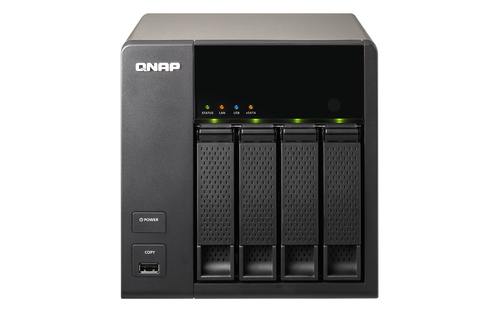

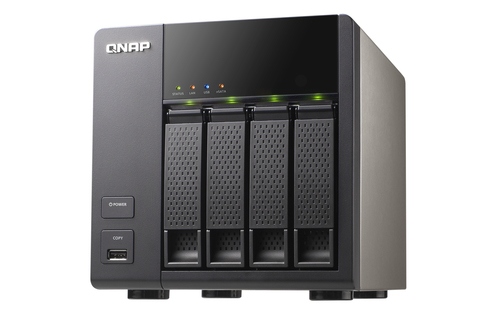

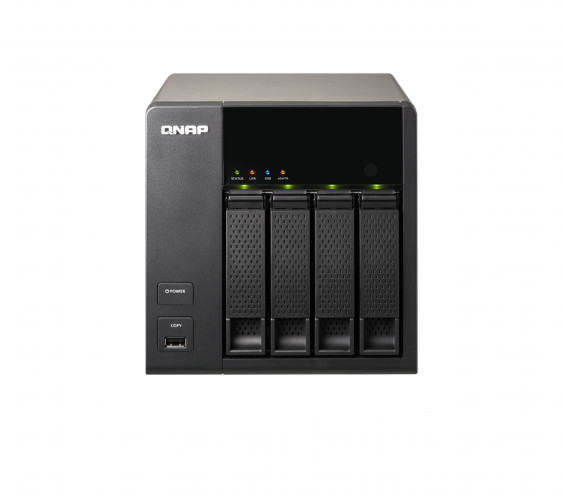

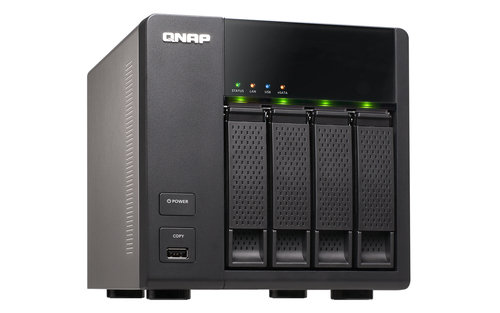

QNAP TS-420, 4x2TB, 2xD-Link DCS-932L

Model TS-420, 4x2TB, 2xD-Link DCS-932LPart no. TS-420+2TBSG+932L

72 specifications

Overview

Brand: QNAP
Category: NAS & Storage Servers
Model: TS-420, 4x2TB, 2xD-Link DCS-932L
Part number: TS-420+2TBSG+932L
Also known as: QNAP TS-420, 4x2TB, 2xD-Link DCS-932L NAS Tower Marvell 0.5 GB DDR3 8 TB HDD QNAP Turbo NAS System Black

72 specifications in 12 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	8 TB
Number of storage drives installed	4
Number of storage drives supported	4
Installed storage drive type	HDD
Supported storage drive types	HDD
Storage drive capacity	2 TB
Storage drive interface	Serial ATA, Serial ATA II
Storage drive size	2.5/3.5"
Maximum supported storage capacity	16 TB
RAID support	Yes
RAID levels	0, 1, 5, 5+0, 5+1, 6, 10, JBOD
Hot-swap drive bays	Yes
Supported file systems	ext3, ext4, FAT32, HFS+, NTFS

Specification	Value
Processor family	Marvell
Processor frequency	1.6 GHz

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Supported network protocols	TCP/ IP

Specification	Value

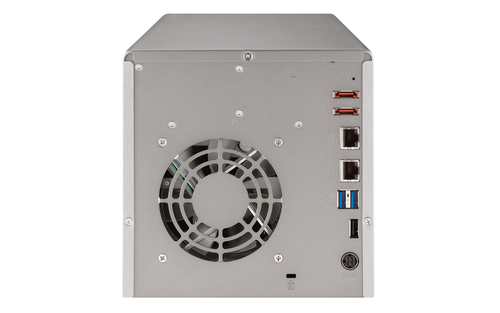

Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Fiber ports quantity	0
eSATA ports quantity	2

Specification	Value
Chassis type	Tower
Cooling type	Active
Product colour	Black
Number of fans	1 fan(s)
Fan diameter	9 cm
LED indicators	eSATA, HDD, LAN, Power, Status, USB
Display type	LCD
Cable lock slot	Yes
Cable lock slot type	Kensington

Specification	Value
Operating system installed	QNAP Turbo NAS System
Operating system version	4.0
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012

Specification	Value
Power supply location	External
Power supply unit (PSU) capacity	120 W
Power consumption (typical)	31 W
Power consumption (sleep)	13 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz

Specification	Value
External power adapter	Yes

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
