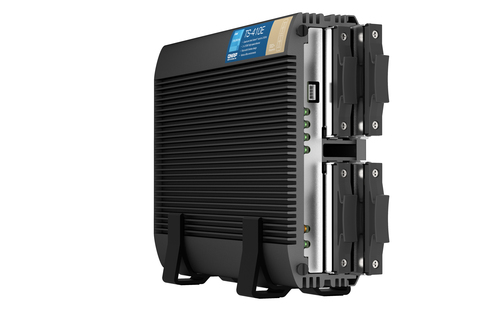

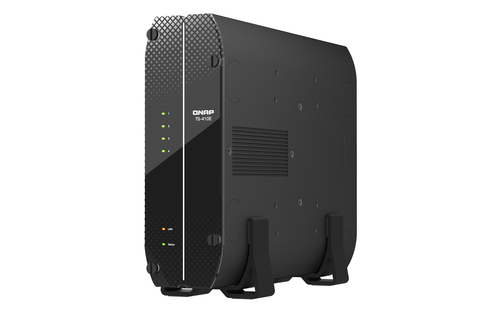

TS-410E NAS Tower Intel® Celeron® J6412
8 GB 0 TB QNAP QTS Black
Model TS-410EPart no. TS-410E-8GEAN 885022024360
75 specifications
- ProcessorIntel® Celeron®
- Memory8 GB
- TypeNAS
- OSQNAP QTS
- Weight2.54 kg
- ColourBlack
Overview
- Processor
- Intel® Celeron®
- Memory
- 8 GB
- Type
- NAS
- OS
- QNAP QTS
- Weight
- 2.54 kg
- Colour
- Black
- Brand
- QNAP
- Category
- NAS & Storage Servers
- Model
- TS-410E
- Part number
- TS-410E-8G
- EAN / UPC
- 885022024360, 4711103082010
- Also known as
- QNAP TS-410E NAS Tower Intel® Celeron® J6412 8 GB 0 TB QNAP QTS Black
Specifications
75 specifications in 13 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Total installed storage capacity | 0 TB |
| Number of storage drives installed | 0 |
| Number of storage drives supported | 4 |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | Serial ATA III |
| Storage drive sizes supported | 2.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| RAID rebuild | Yes |
| Hot-swap drive bays | Yes |
| Supported file systems | FAT32, HFS+, exFAT, ext3, ext4 |
| Auto-rebuild | Yes |
| Bad block scan | Yes |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | J6412 |
| Processor frequency | 2.6 GHz |
| Processor cores | 4 |
| Processor threads | 4 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum RAM supported | 8 GB |
| Flash memory | 4000 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Jumbo frames support | Yes |
| Wake-on-LAN ready | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4b |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Cooling type | Passive |
| Product colour | Black |
| LED indicators | LAN, Power, SSD, Status |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Performance
| Specification | Value |
|---|---|
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Buzzer | Yes |
| Multilingual support | Yes |
| Backup button | Yes |
| Disk scan | Yes |
| On/off switch | Yes |
| Reset button | Yes |
| S.M.A.R.T. support | Yes |
| System log | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | QNAP QTS |
| Operating system version | 5.0.1 |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Power
| Specification | Value |
|---|---|
| Power supply location | External |
| Power supply unit (PSU) capacity | 90 W |
| Power consumption (typical) | 22.694 W |
| Power consumption (sleep) | 13.494 W |
| AC input voltage | 100 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 254 mm |
| Height | 60 mm |
| Weight | 2.54 kg |
| Package width | 325 mm |
| Package depth | 180 mm |
| Package height | 271 mm |
| Package weight | 3.83 kg |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -45 - 85 °C |
Other features
| Specification | Value |
|---|---|
| Warranty period | 3 year(s) |
