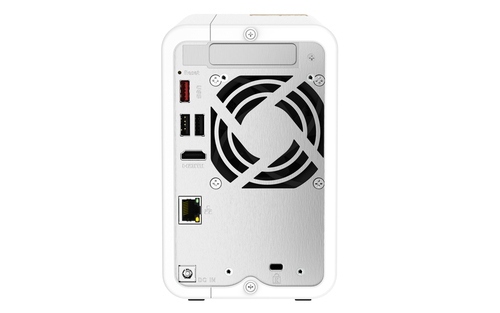

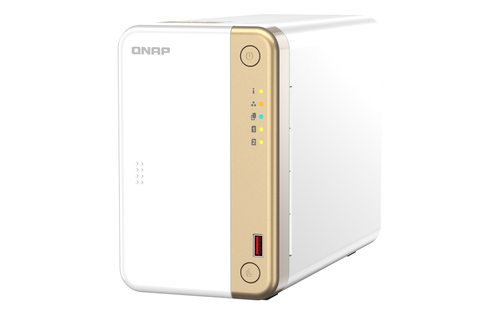

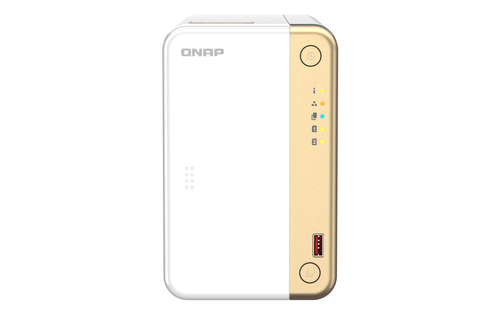

TS-262 NAS Tower Intel® Celeron® N4505

4 GB 0 TB QNAP QTS Gold, White

Model TS-262Part no. TS-262-4G/20TB-EXOSEAN 5051868225000

110 specifications

ProcessorIntel® Celeron®
Memory4 GB
TypeNAS
OSQNAP QTS
Weight1.55 kg
ColourGold, White

See all specifications

Overview

Processor: Intel® Celeron®
Memory: 4 GB
Type: NAS
OS: QNAP QTS
Weight: 1.55 kg
Colour: Gold, White

Brand: QNAP
Category: NAS & Storage Servers
Model: TS-262
Part numbers: TS-262-4G/20TB-EXOS, TS-262-4G/20TB-HC, TS-262-4G/24TB-EXOS, TS-262-4G/24TB-IW, TS-262-4G/28TB-EXOS, TS-262-4G/2TB-IW +34 more
EAN / UPC: 5051868225000, 5051868225017, 5051868225024, 5050914245924 +25 more
Also known as: QNAP TS-262 NAS Tower Intel® Celeron® N4505 4 GB 0 TB QNAP QTS Gold, White

Specifications

110 specifications in 14 groups

Storage

Specification	Value
Storage drives installed	No
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	2
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	Serial ATA III
Storage drive sizes supported	2.5,3.5"
Number of M.2 (M & B) slots	2
RAID support	Yes
RAID levels	0, 1, JBOD
Online RAID migration	Yes
Online RAID expansion	Yes
RAID rebuild	Yes
Hot-swap drive bays	Yes
Supported file systems	HFS+, NTFS, exFAT, ext3, ext4
Disk roaming	Yes

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	N4505
Processor frequency	2 GHz
Processor boost frequency	2.9 GHz
Processor cores	2
Processor threads	2
Processor cache	4 MB
CPU configuration (max)	1
On-board graphics card model	Intel® UHD Graphics

Memory

Specification	Value
Internal memory	4 GB
Maximum RAM supported	4 GB
Flash memory	4000 MB

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Dynamic DNS (DDNS)	Yes
Supported network protocols	IPv4, IPv6

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB port	Yes
USB 2.0 ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
HDMI ports quantity	1
HDMI version	2.0
Concurrent connections	1500
PCI Express x2 (Gen 3.x) slots	1

Design

Specification	Value
Chassis type	Tower
Cooling type	Active
Product colour	Gold, White
Number of fans	1 fan(s)
Fan diameter	7 cm
LED indicators	HDD, LAN, Power, Status, USB
Cable lock slot	Yes
Cable lock slot type	Kensington

Performance

Specification	Value
Type	NAS
Device class	Home & Home Office
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Number of users	4096 user(s)
Snapshot	Yes
Management protocols	SNMP V2/V3
Share folder access right management	Yes
Access Control List (ACL)	Yes
Browser supported	Apple Safar, Google Chrome, Microsoft Edge, Mozilla Firefox
Built-in FTP server	Yes
Disk scan	Yes
Hot spare	Yes
On/off switch	Yes
Remotely operated	Yes
Reset button	Yes
S.M.A.R.T. support	Yes
Security algorithms	256-bit AES, FIPS 140-2
Share folder	512
System log	Yes
USB copy function	Yes

Software

Specification	Value
Operating system installed	QNAP QTS
Operating system version	5.0.1
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Ent
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2019
Other operating systems supported	IBM AIX 7.1, IBM AIX 7.2, Solaris 10, Solaris 10 SPARC, Solaris 11, Solaris 11 SPARC

Power

Specification	Value
Power supply location	External
Power supply unit (PSU) capacity	65 W
Power consumption (typical)	12.448 W
Power consumption (sleep)	8.198 W
AC input voltage	100 - 240 V
Fan voltage	12 V

Weight & dimensions

Specification	Value
Width	105 mm
Depth	226 mm
Height	168 mm
Weight	1.55 kg
Package weight	2.68 kg

Packaging content

Specification	Value
External power adapter	Yes
Cables included	AC, LAN (RJ-45)
Power cables quantity	1
Quick installation guide	Yes
Number of screws	12

Processor special features

Specification	Value
Enhanced Intel SpeedStep Technology	Yes
Idle States	Yes
Intel 64	Yes
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 70 °C

Other features

Specification	Value
Fibre Channel	Yes
