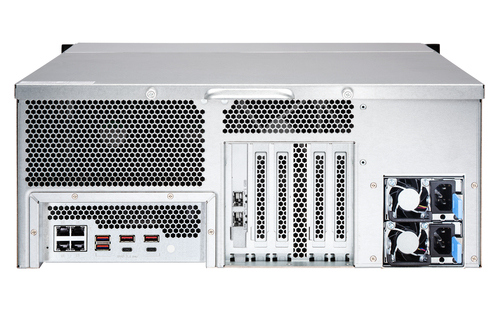

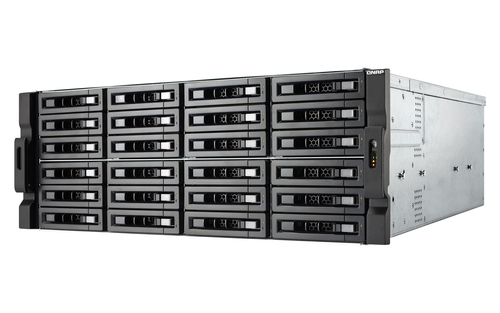

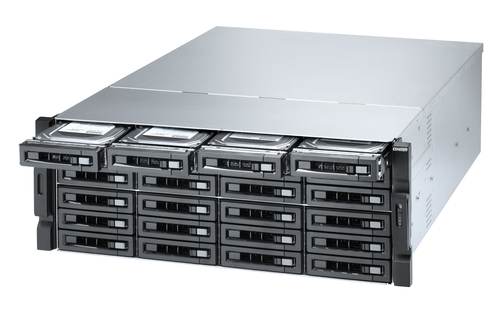

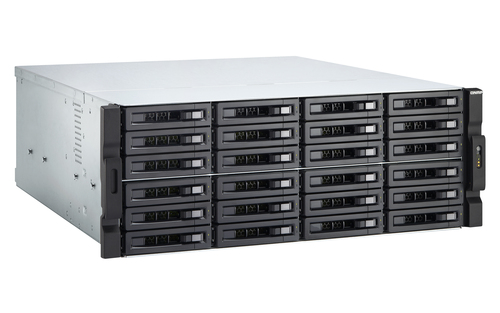

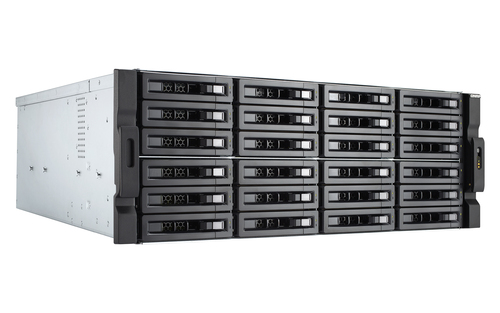

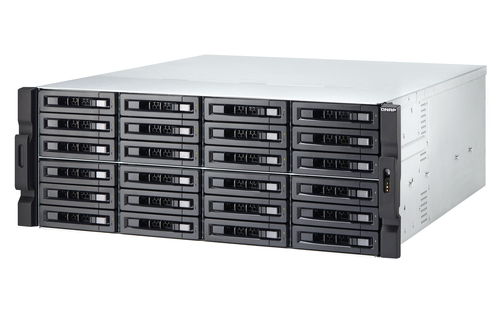

QNAP TS-2483XU-RP NAS Rack (4U) Intel® Xeon® E-2136

16 GB DDR4 0 TB QNAP QTS Black

Model TS-2483XU-RPPart no. TS-2483XU-RP-E2136-16G/72TB-EXOSEAN 5050914082048

149 specifications

Overview

Brand: QNAP
Category: NAS & Storage Servers
Model: TS-2483XU-RP
Part numbers: TS-2483XU-RP-E2136-16G/72TB-EXOS, TS-2483XU-RP-E2136-16G, TS-2483XU-RP-E2136-16G-144TB-EXS, TS-2483XU-RP-E2136-16G-192TB-EXS, TS-2483XU-RP-E2136-16G-24TB-EXOS, TS-2483XU-RP-E2136-16G/384TB-IWP +34 more
EAN / UPC: 5050914082048, 885022016563, 4713213514610, 5050914082086 +56 more
Also known as: QNAP TS-2483XU-RP NAS Rack (4U) Intel® Xeon® E-2136 16 GB DDR4 0 TB QNAP QTS Black

149 specifications in 15 groups

Specification	Value
Storage drives installed	No
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	24
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Storage drive capacity	0 GB
Supported storage drive interfaces	Serial ATA III
Storage drive sizes supported	2.5,3.5"
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, 50, 60, JBOD
Online RAID migration	Yes
Online RAID expansion	Yes
RAID rebuild	Yes
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, ext3, ext4
Bad block scan	Yes

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon®
Processor model	E-2136
Processor frequency	3.3 GHz
Processor boost frequency	4.5 GHz
Processor cores	6
Processor threads	12
Processor cache	12 MB
Bus type	DMI3
CPU configuration (max)	1
ECC supported by processor	Yes
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Processor cache type	Smart Cache
Processor codename	Coffee Lake
Processor lithography	14 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor socket	LGA 1151 (Socket H4)
Scalability	1S
System bus rate	8 GT/s
Thermal Design Power (TDP)	80 W
Tjunction	100 °C
On-board graphics card model	Not available
Maximum internal memory supported by processor	128 GB
Memory bandwidth supported by processor (max)	41.6 GB/s

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,10000 Mbit/s
Ethernet LAN data rate supported (max)	10000 Mbit/s
Wi-Fi	No
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Dynamic DNS (DDNS)	Yes
Link aggregation	Yes
Supported network protocols	TCP/IP, IPv4, IPv6
WLAN adapter supported	Yes

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Fiber ports quantity	2
Fiber optic connector	SFP+
PCI Express x4 (Gen 3.x) slots	2
PCI Express x8 (Gen 3.x) slots	1

Specification	Value
Type	NAS
Device class	Large Enterprise Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Noise level	28.7 dB
Share folder access right management	Yes
Web-based management	Yes
Access Control List (ACL)	Yes
Browser supported	Apple Safari 7+, Google Chrome, Microsoft Internet Explorer 10+, Mozilla Firefox
Built-in FTP server	Yes
Built-in iTunes server	Yes
Hot spare	Yes
On/off switch	Yes
Reset button	Yes
S.M.A.R.T. support	Yes
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, SNMPv3, SSH, SSL/TLS
Share folder	CIFS/SMB
System log	Yes
Universal Plug and Play (UPnP)	Yes

Specification	Value
Operating system installed	QNAP QTS
Operating system version	4.3.5
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	800 W
Number of power supply units	2
Redundant power supply (RPS) support	Yes
Power consumption (typical)	168.97 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Fan voltage	12 V

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Enhanced Halt State	Yes
Intel Secure Key Technology version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Maximum number of PCI Express lanes	16
Thermal Monitoring Technologies	Yes
Memory channels supported by processor	Dual
Memory types supported by processor	DDR4-SDRAM

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%

Specification	Value
Harmonized System (HS) code	84714100

Specification	Value
Digital Living Network Alliance (DLNA) certified	Yes
Processor ARK ID	134857
