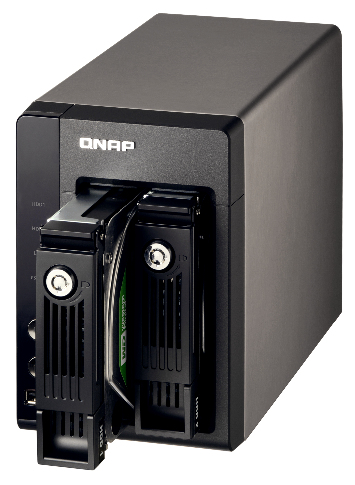

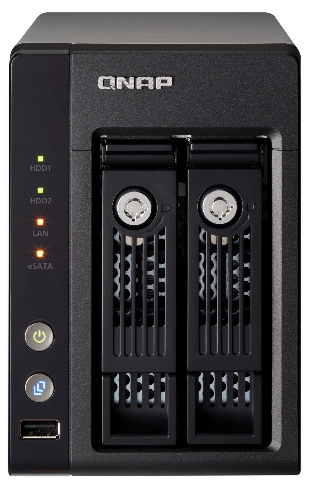

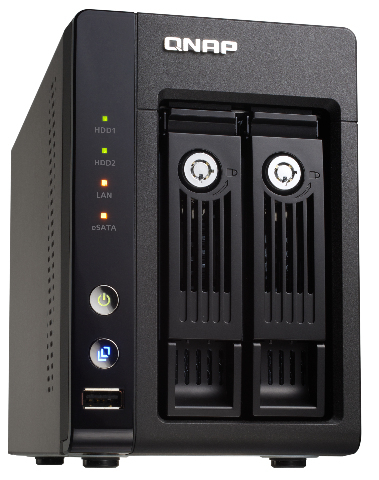

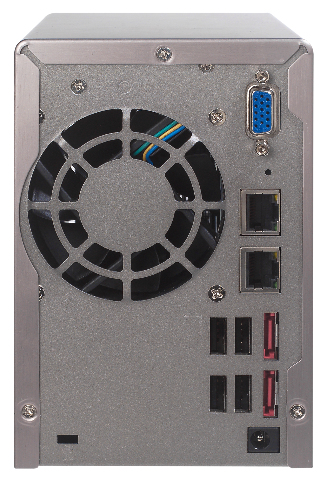

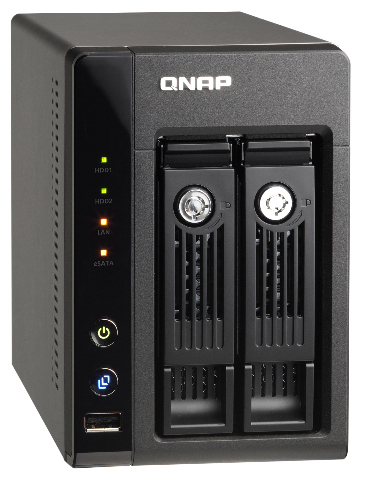

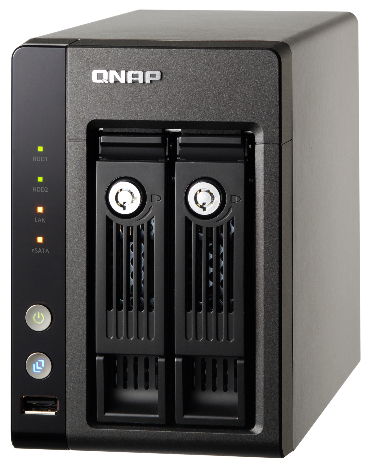

QNAP TS-239 Pro II+ Turbo NAS

Model TS-239 Pro II+ Turbo NASPart no. TS-239-PROII+-EU

84 specifications

Overview

Brand: QNAP
Category: NAS & Storage Servers
Model: TS-239 Pro II+ Turbo NAS
Part number: TS-239-PROII+-EU
Also known as: QNAP TS-239 Pro II+ Turbo NAS Tower Intel Atom® D525 1 GB 0 TB

84 specifications in 13 groups

Specification	Value
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	2
Storage drive capacity	0 GB
Storage drive interface	Serial ATA
RAID levels	0, 1
Supported file systems	EXT3, EXT4, FAT32, HFS+, NTFS

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D525
Processor frequency	1.8 GHz
Processor cores	2
Processor threads	4
Processor cache	1 MB
Bus type	DMI
ECC supported by processor	No
Physical Address Extension (PAE)	32 bit
Processing Die size	87 mm²
Processor cache type	L2
Processor code	SLBXC
Processor codename	Pineview
Processor lithography	45 nm
Processor operating modes	64-bit
Processor package size	22 x 22 mm
Processor socket	BGA 559
Stepping	B0
Thermal Design Power (TDP)	13 W
Tjunction	100 °C
Maximum internal memory supported by processor	4 GB
Memory bandwidth supported by processor (max)	6.4 GB/s
Conflict-Free processor	No

Specification	Value
Internal memory	1 GB
Flash memory	512 MB

Specification	Value
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Compliance industry standards	IEEE 802.3ad
Supported network protocols	CIFS/ SMB, AFP (3.2), NFS(v3), FTP, HTTP, HTTPS, Telnet, SSH, iSCSI, SNMP, SMTP, SMSC

Specification	Value
Number of users	2048 user(s)
Management protocols	CIFS/ SMB, AFP, NFS, FTP/ FTPS, HTTP/ HTTPS, WebDAV
Web-based management	Yes
On/off switch	Yes
Reset button	Yes
Security algorithms	256-bit WEP, HTTPS, SSH, SSL/TLS

Specification	Value
Power supply unit (PSU) capacity	84 W
Power consumption (typical)	23 W
Power consumption (sleep)	16 W

Specification	Value
Weight	1.74 kg
Package weight	2.92 kg

Specification	Value
External power adapter	Yes

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Demand Based Switching	No
Intel Enhanced Halt State	No
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	No
Number of Processing Die Transistors	176 M
Thermal Monitoring Technologies	No
Memory channels supported by processor	Single

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95%

Specification	Value
Compatible operating systems	Microsoft Windows 2000/XP/Vista (32/ 64-bit)/7 (32/ 64-bit)/Server 2003/ 2008 Apple Mac OS X Linux & UNIX
Dimensions (WxDxH)	102 x 216 x 150 mm
Fan	70 mm
Link/Act LED	Yes
Networking features	Gigabit Ethernet
Power requirements	100-240V AC, 50/60Hz
Processor ARK ID	49490
I/O ports	2 x eSATA 1 x VGA
Number of drive bays	2
