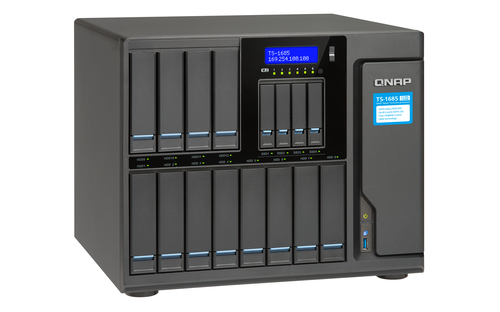

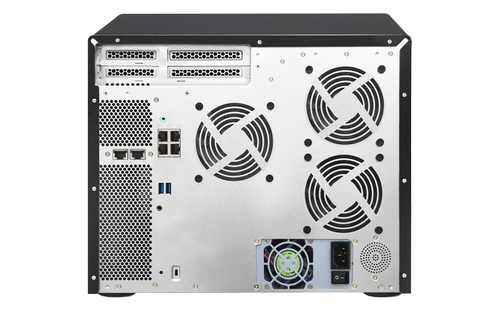

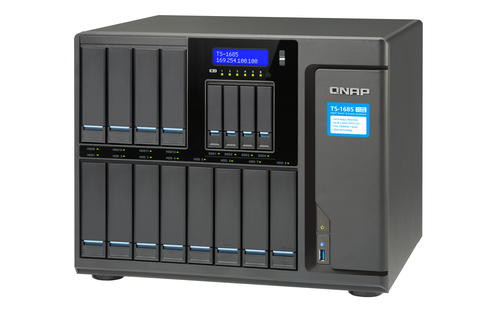

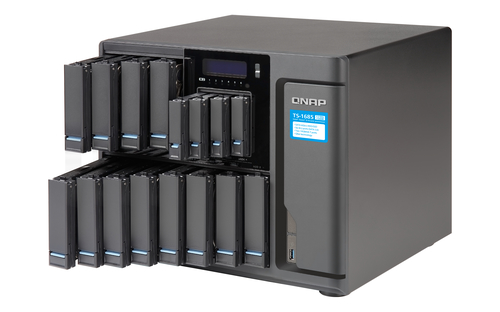

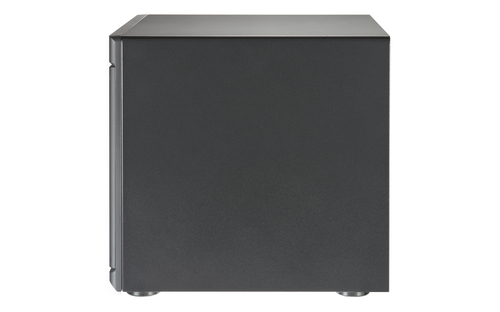

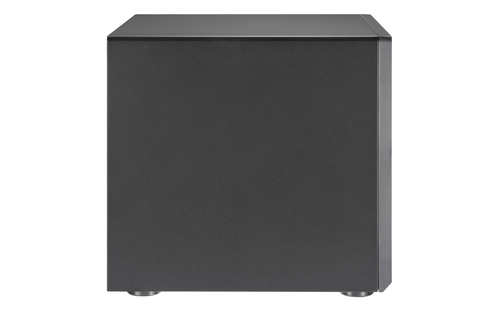

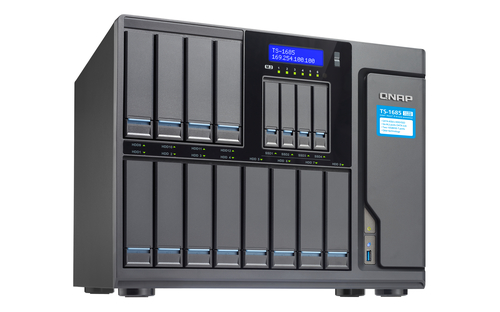

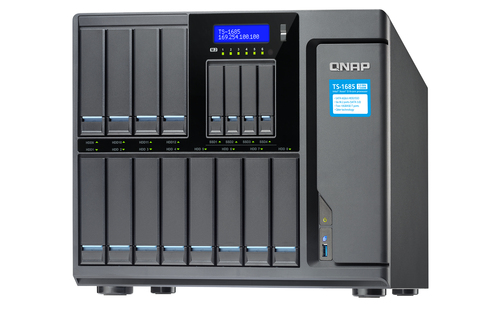

TS-1685-D1521 NAS Desktop Intel® Xeon® D D-1521

16 GB DDR4 144 TB HDD QNAP Turbo System Black

Model TS-1685-D1521Part no. TS-1685-D1521-8G/48TB-IWP

132 specifications

Overview

Brand: QNAP
Category: NAS & Storage Servers
Model: TS-1685-D1521
Part numbers: TS-1685-D1521-8G/48TB-IWP, TS-1685-D1521-16G/144TB-IWP, TS-1685-D1521-16G/24TB-IWP, TS-1685-D1521-16G/12TB-EXOS, TS-1685-D1521-32G/168TB-IW, TS-1685-D1521-16G/48TB-EXOS +34 more
Also known as: QNAP TS-1685-D1521 NAS Desktop Intel® Xeon® D D-1521 16 GB DDR4 144 TB HDD QNAP Turbo System Black

132 specifications in 14 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	144 TB
Number of storage drives installed	12
Number of storage drives supported	22
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Storage drive capacity	12 TB
Supported storage drive interfaces	M.2, Serial ATA III
Storage drive sizes supported	3.5"
RAID support	Yes
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, ext3, ext4

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® D
Processor model	D-1521
Processor frequency	2.4 GHz
Processor boost frequency	2.7 GHz
Processor cores	4
Processor threads	8
Processor cache	6 MB
CPU configuration (max)	1
PCI Express configurations	1x16, 1x4, 1x8
PCI Express slots version	2.0, 3.0
Processor code	SR2DF
Processor codename	Broadwell
Processor lithography	14 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Xeon D-1500
Processor socket	BGA 1667
Scalability	1S
Stepping	V2
Thermal Design Power (TDP)	45 W
Maximum internal memory supported by processor	128 GB
Conflict-Free processor	Yes

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,10000 Mbit/s
Ethernet LAN data rate supported (max)	10000 Mbit/s
Wi-Fi	No
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Supported network protocols	TCP/IP, IPv4 & IPv6

Specification	Value
Ethernet LAN (RJ-45) ports	6
USB port	Yes
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Fiber ports quantity	0

Specification	Value
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Multilingual support	Yes
Number of users	22.5 user(s)
Share folder access right management	Yes
Web-based management	Yes
Access Control List (ACL)	Yes
Browser supported	Microsoft Internet Explorer 10+, Google Chrome, Apple Safari 7+, Mozilla Firefox
Built-in FTP server	Yes
Built-in UPnP AV media server	Yes
Built-in iTunes server	Yes
Disk scan	Yes
Hot spare	Yes
On/off switch	Yes
Password authentication	Yes
Remotely operated	Yes
Reset button	Yes
S.M.A.R.T. support	Yes
Security algorithms	256-bit AES, HTTPS, SSH
Share folder	SMB/CIFS
System log	Yes

Specification	Value
Operating system installed	QNAP Turbo System
Operating system version	4.3
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 H
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Ma
Server operating systems supported	Windows Server 2012, Windows Server 2012 R2, Windows Server 2012 R2 x64, Windows Server 2012 x64

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	250 W
Number of power supply units	1
Power consumption (typical)	127 W
Power consumption (sleep)	61.36 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Fan voltage	12 V
Output current	3 A

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Enhanced Halt State	Yes
Intel Secure Key Technology version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Maximum number of PCI Express lanes	32
Thermal Monitoring Technologies	Yes
UART	Yes
Memory types supported by processor	DDR3-SDRAM, DDR4-SDRAM
