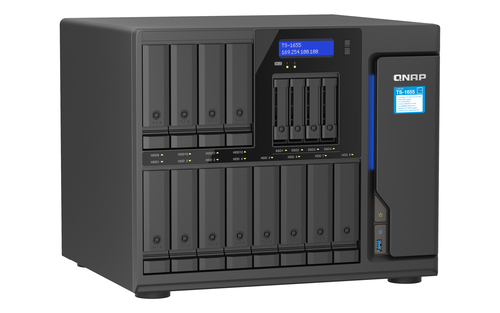

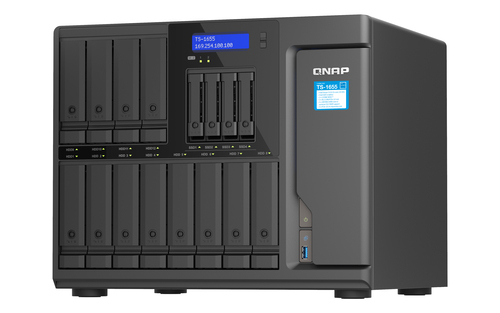

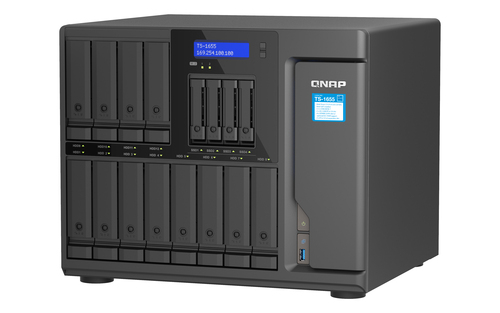

TS-1655 NAS Tower Intel Atom® C5125

8 GB DDR4 0 TB QNAP Turbo System Black

Model TS-1655Part no. TS-1655-8G/48TB-EXOSEAN 5050914226442

108 specifications

ProcessorIntel Atom®
Memory8 GB
TypeNAS
OSQNAP Turbo System
ColourBlack
Storage drives installedNo

See all specifications

Overview

Processor: Intel Atom®
Memory: 8 GB
Type: NAS
OS: QNAP Turbo System
Colour: Black
Storage drives installed: No

Brand: QNAP
Category: NAS & Storage Servers
Model: TS-1655
Part numbers: TS-1655-8G/48TB-EXOS, TS-1655-8G, TS-1655-8G-US, TS-1655-8G/160TB EXOS, TS-1655-8G/124TB EXOS, TS-1655-8G/192TB EXOS +20 more
EAN / UPC: 5050914226442, 885022025527, 4711103083178, 5051868216473 +22 more
Also known as: QNAP TS-1655 NAS Tower Intel Atom® C5125 8 GB DDR4 0 TB QNAP Turbo System Black

Specifications

108 specifications in 13 groups

Storage

Specification	Value
Storage drives installed	No
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	16
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5,3.5,M.2
Number of M.2 (M & B) slots	2
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, 50, 60, JBOD
Online RAID migration	Yes
Online RAID expansion	Yes
RAID rebuild	Yes
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, exFAT, ext3, ext4
Bad block scan	Yes
Disk roaming	Yes

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	C5125
Processor frequency	2.8 GHz
Processor cores	8
Processor threads	8

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4
Maximum RAM supported	128 GB
ECC	Yes
Memory form factor	UDIMM
Memory slots	4
Flash memory	5000 MB

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Dynamic DNS (DDNS)	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Concurrent connections	700
PCI Express x4 (Gen 3.x) slots	3

Design

Specification	Value
Chassis type	Tower
Cooling type	Active
Product colour	Black
Number of fans	5 fan(s)
Fan diameter	9.2 cm
Fan diameter 2	9.7 cm
Drive bay locking	Yes
LED indicators	HDD, LAN, M.2, Power, SSD, Status, USB
Built-in display	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington

Performance

Specification	Value
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, USB drive, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Number of users	4096 user(s)
Snapshot	Yes
Management protocols	SNMP V2/V3
Share folder access right management	Yes
Access Control List (ACL)	Yes
Browser supported	Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox
Built-in FTP server	Yes
Disk scan	Yes
Hot spare	Yes
On/off switch	Yes
Password authentication	Yes
Reset button	Yes
S.M.A.R.T. support	Yes
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, SSH, TLS
Share folder	CIFS/SMB, AFP, NFS, FTP
System log	Yes
USB copy function	Yes

Software

Specification	Value
Operating system installed	QNAP Turbo System
Operating system version	5.0.1
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Power

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	550 W
Number of power supply units	1
Power consumption (typical)	104.65 W
Power consumption (HDD standby)	94.957 W
AC input voltage	100 - 240 V
Fan voltage	12 V

Weight & dimensions

Specification	Value
Width	369.6 mm
Depth	319.8 mm
Height	294.3 mm
Package width	440 mm
Package depth	469 mm
Package height	493 mm
Package weight	16.7 kg

Packaging content

Specification	Value
Cables included	AC, LAN (RJ-45)
Power cables quantity	1
Number of screws	72
Drive tray key included	Yes
Package type	Box

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 70 °C

Other features

Specification	Value
Warranty period	3 year(s)
