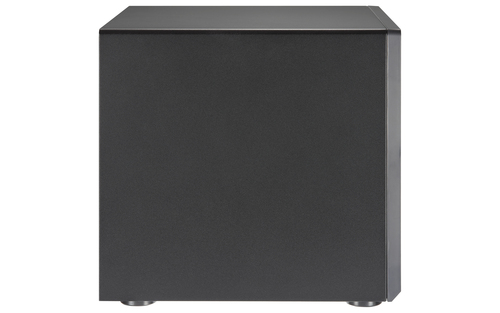

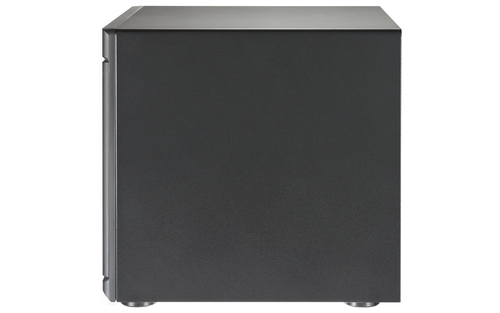

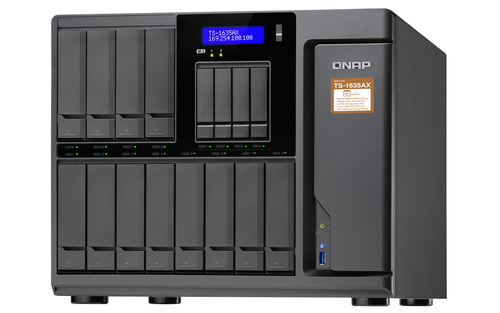

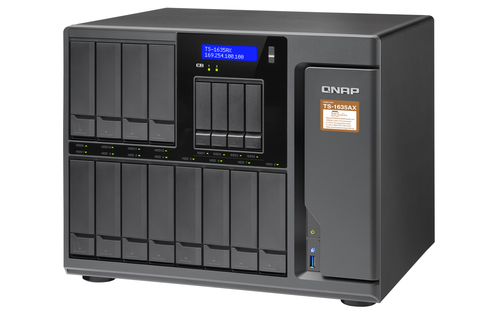

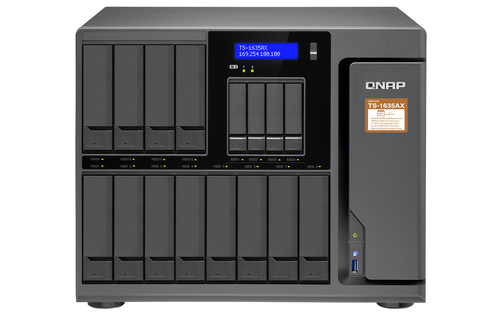

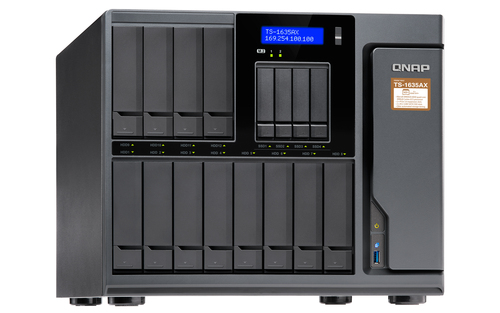

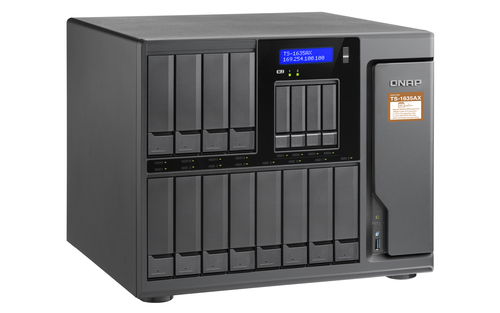

TS-1635AX-4G NAS Desktop Marvell
4 GB DDR4 192 TB HDD Black
Model TS-1635AX-4GPart no. TS-1635AX-4G/72TB-IWP
77 specifications
- ProcessorMarvell
- Memory4 GB
- Noise23 dB
- TypeNAS
- ColourBlack
- Storage drives installedYes
Overview
- Processor
- Marvell
- Memory
- 4 GB
- Noise
- 23 dB
- Type
- NAS
- Colour
- Black
- Storage drives installed
- Yes
- Brand
- QNAP
- Category
- NAS & Storage Servers
- Model
- TS-1635AX-4G
- Part numbers
- TS-1635AX-4G/72TB-IWP, TS-1635AX-4G/192TB-IWP, TS-1635AX-4G/168TB-EXOS, TS-1635AX-4G/192TB-EXOS, TS-1635AX-4G/96TB-IWP, TS-1635AX-4G/120TB-IWP +3 more
- Also known as
- QNAP TS-1635AX-4G NAS Desktop Marvell 4 GB DDR4 192 TB HDD Black
Specifications
77 specifications in 12 groups

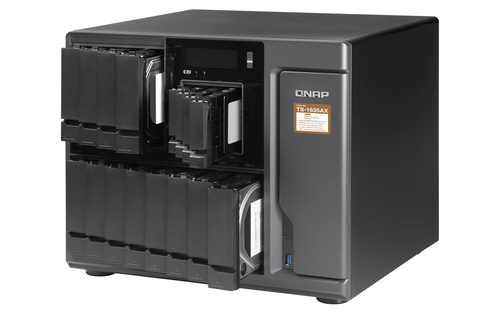

Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Total installed storage capacity | 192 TB |
| Number of storage drives supported | 16 |
| Installed storage drive type | HDD |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| Number of M.2 (M & B) slots | 2 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Hot-swap drive bays | Yes |
| Supported file systems | FAT32, HFS+, exFAT, ext3, ext4 |
Processor
| Specification | Value |
|---|---|
| Processor family | Marvell |
| Processor frequency | 1.6 GHz |
| Processor cores | 4 |
| Processor architecture | ARM Cortex-A7 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 16 GB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| DHCP client | Yes |
| DHCP server | Yes |
| iSCSI support | Yes |
| Wake-on-LAN ready | Yes |
| Dynamic DNS (DDNS) | Yes |

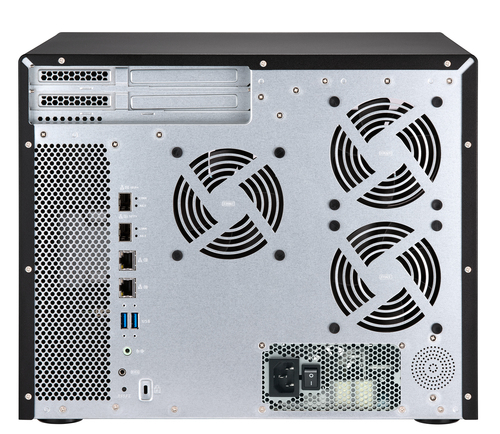

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | Yes |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| 3.5 mm (1/8-inch) out | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 4 fan(s) |
| Fan diameter | 9.2 cm |
| Fan diameter 2 | 6 cm |
| LED indicators | Yes |
| Built-in display | Yes |
| Display type | LCD |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
Performance
| Specification | Value |
|---|---|
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud, iSCSI LUN |
| Buzzer | Yes |
| Noise level | 23 dB |
| Snapshot | Yes |
| Web-based management | Yes |
| Browser supported | Apple Safari 7, Google Chrome, Microsoft Internet Explorer 10, Mozilla Firefox |
| Built-in FTP server | Yes |
| Hot spare | Yes |
| On/off switch | Yes |
| Reset button | Yes |
| Security algorithms | 256-bit AES |
Software
| Specification | Value |
|---|---|
| Operating system version | 4.3.4 |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 250 W |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Fan voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 369.9 mm |
| Depth | 319.8 mm |
| Height | 303.8 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, LAN (RJ-45) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
