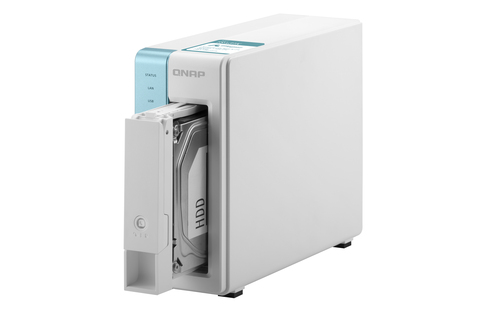

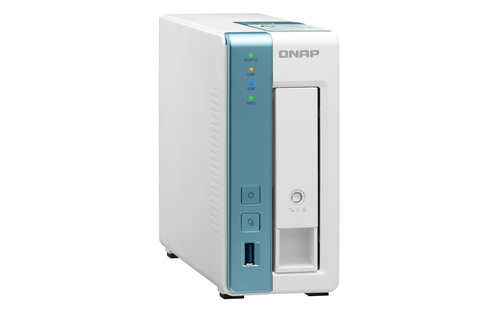

QNAP TS-131K NAS/storage server Tower Annapurna Labs Alpine AL-214

TS-131K NAS/storage server Tower Annapurna Labs Alpine AL-214

1 GB DDR4 0 TB QNAP QTS Turquoise, White

Model TS-131KPart no. TS-131K + 1X HDWG460UZSVAEAN 4713213516812

84 specifications

ProcessorAnnapurna Labs
Memory1 GB
Noise15.8 dB
TypeNAS
OSQNAP QTS
Weight1.16 kg

See all specifications

Overview

Processor: Annapurna Labs
Memory: 1 GB
Noise: 15.8 dB
Type: NAS
OS: QNAP QTS
Weight: 1.16 kg

Brand: QNAP
Category: NAS & Storage Servers
Model: TS-131K
Part numbers: TS-131K + 1X HDWG460UZSVA, TS-131K + 1X HDWG480UZSVA, TS-131K, TS-131K-US, TS-131K/2TB-RED, TS-131K/1TB-RED +34 more
EAN / UPC: 4713213516812, 885022018833, 5050914163877, 5051868139215 +35 more
Also known as: QNAP TS-131K NAS/storage server Tower Annapurna Labs Alpine AL-214 1 GB DDR4 0 TB QNAP QTS Turquoise, White

Specifications

84 specifications in 13 groups

Storage

Specification	Value
Storage drives installed	No
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	1
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Storage drive capacity	0 GB
Supported storage drive interfaces	Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5,3.5"
RAID support	No
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, exFAT, ext3, ext4

Processor

Specification	Value
Processor manufacturer	Annapurna Labs
Processor family	Annapurna Labs
Processor model	Alpine AL-214
Processor frequency	1.7 GHz
Processor cores	4

Memory

Specification	Value
Internal memory	1 GB
Internal memory type	DDR4
Maximum RAM supported	1 GB
Flash memory	512 MB

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
DHCP server	Yes
Wake-on-LAN ready	Yes
Dynamic DNS (DDNS)	Yes

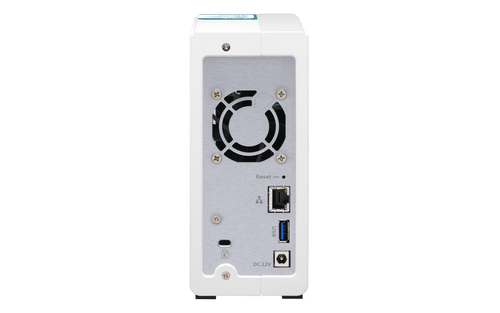

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB port	Yes
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2

Design

Specification	Value
Chassis type	Tower
Cooling type	Active
Product colour	Turquoise, White
Number of fans	1 fan(s)
Fan diameter	5 cm
LED indicators	HDD, LAN, Status, System
Cable lock slot	Yes
Cable lock slot type	Kensington

Performance

Specification	Value
Type	NAS
Device class	Home & Home Office
Backup function	Yes
Backup features	Cloud, USB drive, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Noise level	15.8 dB
Snapshot	Yes
Access Control List (ACL)	Yes
Browser supported	Mozilla Firefox, Microsoft Edge, Google Chrome, Apple Safari
Built-in FTP server	Yes
Hot spare	Yes
On/off switch	Yes
Reset button	Yes
S.M.A.R.T. support	Yes
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, SSL/TLS, TLS
Share folder	CIFS/SMB
System log	Yes
Universal Plug and Play (UPnP)	Yes

Software

Specification	Value
Operating system installed	QNAP QTS
Operating system version	5.0.0
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Other operating systems supported	Yes

Power

Specification	Value
Power supply location	External
Power supply unit (PSU) capacity	36 W
Number of power supply units	1
Power consumption (typical)	11.62 W
Power consumption (sleep)	7.29 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Fan voltage	12 V

Weight & dimensions

Specification	Value
Width	73 mm
Depth	219 mm
Height	161 mm
Weight	1.16 kg
Package weight	1.99 kg

Packaging content

Specification	Value
External power adapter	Yes
Cables included	AC, LAN (RJ-45)
Power cables quantity	1

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 70 °C

Logistics data

Specification	Value
Harmonized System (HS) code	84714100
