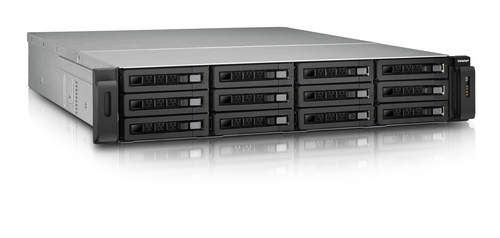

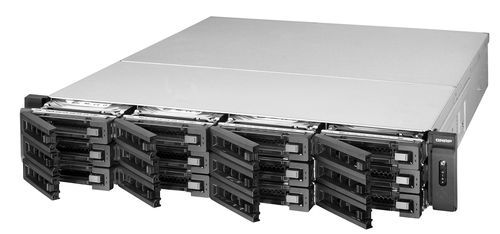

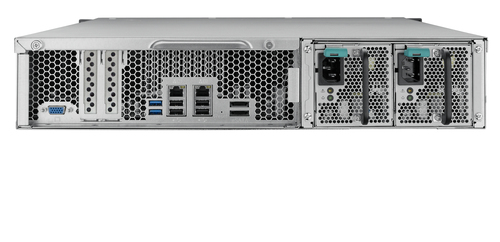

QNAP TS-1279U-RP NAS/storage server Rack (2U) Intel® Core™ i3 i3-2120

2 GB DDR3 0 TB Black

Model TS-1279U-RPPart no. TS-1279U-E10G/24TBEAN 5711045970320

112 specifications

Overview

Brand: QNAP
Category: NAS & Storage Servers
Model: TS-1279U-RP
Part numbers: TS-1279U-E10G/24TB, TS-1279U-E10G/48TB, TS-1279U-E10G, TS-1279U-RP + 12X ST4000VX000, TS-1279U-RP + 12X ST4000VX002, TS-1279U-RP + 12X ST4000NC000 +34 more
EAN / UPC: 5711045970320, 5050914698836, 5051868543449, 5051868535581 +13 more
Also known as: QNAP TS-1279U-RP NAS/storage server Rack (2U) Intel® Core™ i3 i3-2120 2 GB DDR3 0 TB Black

112 specifications in 14 groups

Specification	Value
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	12
Storage drive capacity	0 GB
Storage drive interface	Serial ATA
Storage drive size	2.5/3.5"
Maximum supported storage capacity	36 TB
RAID levels	1, 5, 6, 10, JBOD
Hot-swap drive bays	Yes
Supported file systems	ext3, ext4, FAT32, HFS+, NTFS

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	2nd gen Intel® Core™ i3
Processor model	i3-2120
Processor frequency	3.3 GHz
Processor cores	2
Processor threads	4
Processor cache	3 MB
L3 cache	3 MB
Bus type	DMI
CPU configuration (max)	1
CPU multiplier (bus/core ratio)	33
Number of processors installed	1
PCI Express slots version	2.0
Processor cache type	Smart Cache
Processor codename	Sandy Bridge
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor socket	LGA 1155 (Socket H2)
System bus rate	5 GT/s
Tcase	69.1 °C
Thermal Design Power (TDP)	65 W
On-board graphics card model	Intel® HD Graphics 2000
Maximum internal memory supported by processor	32 GB
Memory bandwidth supported by processor (max)	21 GB/s
Conflict-Free processor	No

Specification	Value
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Compliance industry standards	IEEE 802.3ad
Cabling technology	10/100/1000Base-T(X)
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	CIFS/SMB, AFP (3.2), NFS(v3), FTP, HTTP, HTTPS, Telnet, SSH, iSCSI, SNMP, SMTP, SMSC

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
eSATA ports quantity	2
eSATA	Yes

Specification	Value
On-board graphics card ID	0x102
On-board graphics card base frequency	850 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
Number of displays supported (on-board graphics)	2

Specification	Value
Power supply unit (PSU) capacity	600 W
Redundant power supply (RPS) support	Yes
Power consumption (typical)	165 W
Power consumption (sleep)	68 W

Specification	Value
Weight	15.9 kg

Specification	Value
External power adapter	No

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Maximum number of PCI Express lanes	16
Thermal Monitoring Technologies	Yes
Memory channels supported by processor	Dual

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%

Specification	Value
Compatible operating systems	Microsoft Windows XP, Vista (32/64-bit), Windows 7 (32/64-bit), Server 2003/2008 R2, Apple Mac OS X, Linux, UNIX
Dimensions (WxDxH)	439 x 520 x 88 mm
Fan	60 mm
Networking features	Gigabit Ethernet
Power requirements	100 - 240 VAC, 50/60Hz
Processor ARK ID	53426
Expansion slots	2
