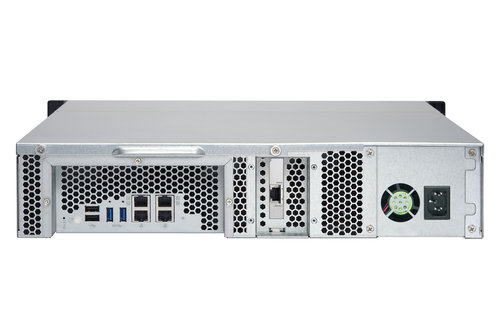

QNAP TS-1263XU-4G NAS Rack (2U) AMD G GX-420MC
QNAP

TS-1263XU-4G NAS Rack (2U) AMD G GX-420MC

4 GB DDR3L 96 TB HDD QNAP Turbo System Black

Model TS-1263XU-4GPart no. TS-1263XU-4G+12XST8000NE0004

89 specifications
  • ProcessorAMD G
  • Memory4 GB
  • Noise35.7 dB
  • TypeNAS
  • OSQNAP Turbo System
  • Weight16.1 kg
See all specifications

Overview

Processor
AMD G
Memory
4 GB
Noise
35.7 dB
Type
NAS
OS
QNAP Turbo System
Weight
16.1 kg
Brand
QNAP
Model
TS-1263XU-4G
Part numbers
TS-1263XU-4G+12XST8000NE0004, TS-1263XU-4G+12XST2000NE0025, TS-1263XU-4G+12XST4000NE0025, TS-1263XU-4G+12XST4000VN008
Also known as
QNAP TS-1263XU-4G NAS Rack (2U) AMD G GX-420MC 4 GB DDR3L 96 TB HDD QNAP Turbo System Black

Specifications

89 specifications in 12 groups

Storage

Storage drives installedYes
Total installed storage capacity96 TB
Number of storage drives installed12
Number of storage drives supported12
Installed storage drive typeHDD
Supported storage drive typesHDD
Storage drive capacity8 TB
Supported storage drive interfacesSerial ATA III
Storage drive sizes supported2.5,3.5"
RAID supportYes
RAID levels0, 1, 5, 6, 10, 50, 60, JBOD
Online RAID migrationYes
Online RAID expansionYes
Hot-swap drive baysYes
Supported file systemsFAT32, HFS+, NTFS, ext3, ext4
Bad block scanYes

Processor

Processor familyAMD G
Processor modelGX-420MC
Processor frequency2 GHz
Processor cores4

Memory

Internal memory4 GB
Internal memory typeDDR3L
Maximum RAM supported16 GB
Memory form factorSO-DIMM
Memory slots2
Flash memory512 MB

Network

Ethernet LANYes
Ethernet LAN data rates10,100,1000,10000 Mbit/s
Ethernet LAN data rate supported (max)10000 Mbit/s
Copper ethernet cabling technology10GBASE-T, 1000BASE-T
Wi-FiNo
DHCP serverYes
Jumbo frames supportYes
iSCSI supportYes
Wake-on-LAN readyYes
Supported network protocolsPPTP, L2TP/IPSec, OpenVPN VPN

Ports & interfaces

Ethernet LAN (RJ-45) ports4
USB portYes
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Fiber ports quantity0

Design

Chassis typeRack (2U)
Cooling typeActive
Product colourBlack
Number of fans2 fan(s)
Fan diameter7 cm
LED indicatorsHDD, LAN, Power, Status, USB
Cable lock slotYes
Cable lock slot typeKensington

Performance

TypeNAS
Backup functionYes
Backup featuresCloud, iSCSI LUN
BuzzerYes
Multilingual supportYes
Noise level35.7 dB
Share folder access right managementYes
Web-based managementYes
Access Control List (ACL)Yes
Backup buttonYes
Browser supportedSafari 7+, Chrome, Internet Explorer 10+, Firefox
Hot spareYes
On/off switchYes
Reset buttonYes
S.M.A.R.T. supportYes
Security algorithms256-bit AES, FIPS 140-2, HTTPS, SSH
Share folderCIFS/SMB
System logYes

Software

Operating system installedQNAP Turbo System
Operating system version4.3.4
Windows operating systems supportedWindows 10, Windows 7, Windows 8
Linux operating systems supportedYes
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supportedWindows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016

Power

Power supply locationBuilt-in
Power supply unit (PSU) capacity250 W
Number of power supply units1
Power consumption (typical)135.02 W
Power consumption (HDD standby)44.78 W
AC input voltage100 - 240 V
Output current5 A

Weight & dimensions

Width482 mm
Depth534 mm
Height89 mm
Weight16.1 kg
Package weight19 kg

Packaging content

Cables includedAC, LAN (RJ-45)
Quick installation guideYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)5 - 95%
