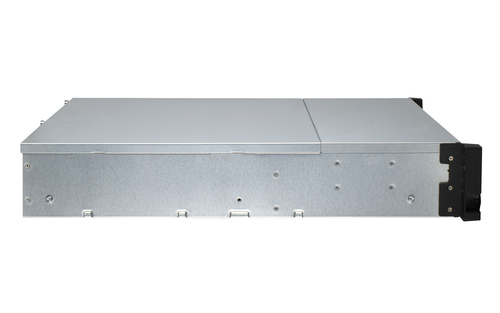

QNAP TS-1253U NAS/storage server Rack (2U) Intel® Celeron®

4 GB DDR3L 0 TB QNAP Turbo System Black, Grey

Model TS-1253UPart no. TS-1253U/60TB-HGSTEAN 5050914932848

95 specifications

Overview

Brand: QNAP
Category: NAS & Storage Servers
Model: TS-1253U
Part numbers: TS-1253U/60TB-HGST, TS-1253U/72TB-HGST, TS-1253U/6X4,0TB, TS-1253U/6X3,0TB, TS-1253U/12X2,0TB, TS-1253U/12X3,0TB +34 more
EAN / UPC: 5050914932848, 4058154171141, 4058154171066, 4058154171073 +21 more
Also known as: QNAP TS-1253U NAS/storage server Rack (2U) Intel® Celeron® 4 GB DDR3L 0 TB QNAP Turbo System Black, Grey

95 specifications in 13 groups

Specification	Value
Storage drives installed	No
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	12
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Storage drive interface	Serial ATA II, Serial ATA III
Storage drive size	2.5/3.5"
RAID support	Yes
RAID levels	0, 10, 5, 6, 1
Hot-swap drive bays	Yes
Supported file systems	ext3, ext4, FAT32, HFS+, NTFS

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n)
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Link aggregation	Yes
Supported network protocols	CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, SMSC

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Fiber ports quantity	0
HDMI ports quantity	1

Specification	Value
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Noise level	35.2 dB
Built-in optical drive	No
Card reader integrated	No
Management protocols	SNMP v2 & v3
Share folder access right management	Yes
Web-based management	Yes
Access Control List (ACL)	Yes
Browser supported	Microsoft Internet Explorer 10+, Mozilla Firefox 8+, Apple Safari 4+, Google Chrome
Built-in FTP server	Yes
Built-in UPnP AV media server	Yes
Hot spare	Yes
On/off switch	Yes
Password authentication	Yes
Reset button	Yes
S.M.A.R.T. support	Yes
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS
Share folder	CIFS/SMB
System log	Yes

Specification	Value
Operating system installed	QNAP Turbo System
Operating system version	4.1
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows Vista Enterprise, Windows XP Professional, Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2003, Windows Server 2003 R2, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	250 W
Number of power supply units	1
Redundant power supply (RPS) support	No
Power consumption (typical)	83.52 W
Power consumption (sleep)	35.14 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Fan voltage	12 V

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95%

Specification	Value
Digital Living Network Alliance (DLNA) certified	Yes
Power management	Yes
