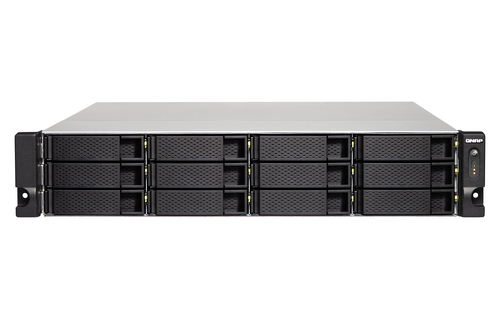

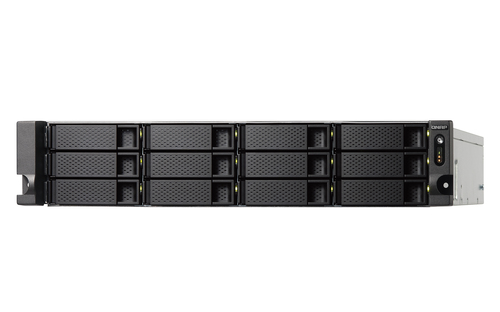

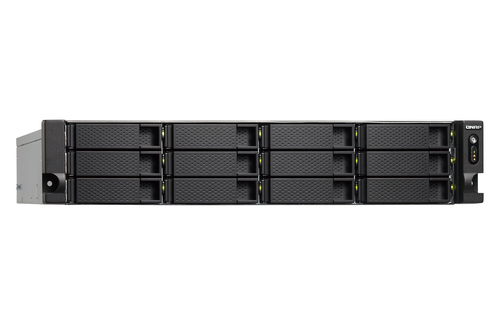

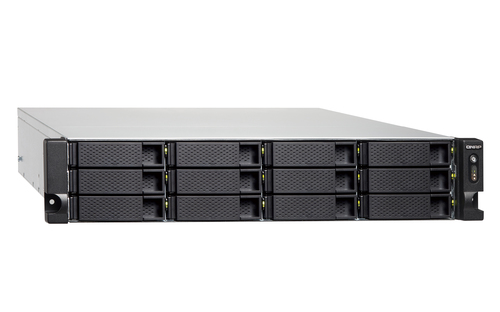

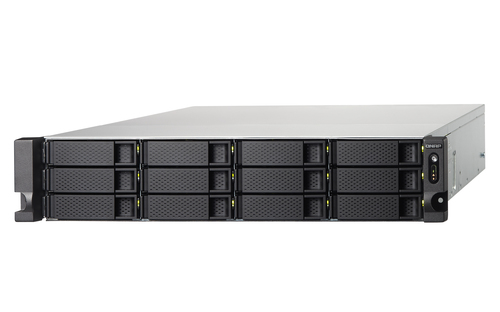

QNAP TS-1232XU-4G NAS Rack (2U) Annapurna Labs Alpine AL-324

TS-1232XU-4G NAS Rack (2U) Annapurna Labs Alpine AL-324

4 GB DDR4 48 TB HDD QNAP Turbo System Black

Model TS-1232XU-4GPart no. TS-1232XU-4G+12XST4000VN008

92 specifications

ProcessorAnnapurna Labs
Memory4 GB
Noise41.6 dB
TypeNAS
OSQNAP Turbo System
Weight9.93 kg

See all specifications

Overview

Processor: Annapurna Labs
Memory: 4 GB
Noise: 41.6 dB
Type: NAS
OS: QNAP Turbo System
Weight: 9.93 kg

Brand: QNAP
Category: NAS & Storage Servers
Model: TS-1232XU-4G
Part numbers: TS-1232XU-4G+12XST4000VN008, TS-1232XU-4G+12XST8000NE0004, TS-1232XU-4G+12XST4000NE0025, TS-1232XU-4G+12XST2000NE0025
Also known as: QNAP TS-1232XU-4G NAS Rack (2U) Annapurna Labs Alpine AL-324 4 GB DDR4 48 TB HDD QNAP Turbo System Black

Specifications

92 specifications in 13 groups

Storage

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	48 TB
Number of storage drives installed	12
Number of storage drives supported	12
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Storage drive capacity	4 TB
Storage drive interface	Serial ATA III
Storage drive sizes supported	2.5,3.5"
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD
Online RAID migration	Yes
Online RAID expansion	Yes
RAID rebuild	Yes

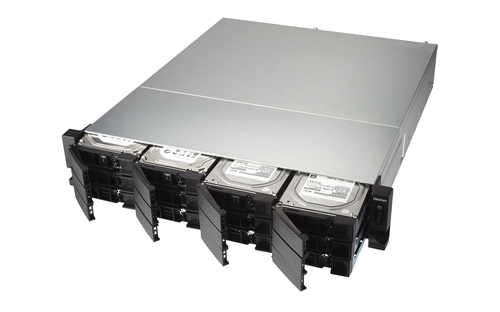

Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, exFAT, ext3, ext4
Bad block scan	Yes

Processor

Specification	Value
Processor family	Annapurna Labs
Processor model	Alpine AL-324
Processor frequency	1.7 GHz
Processor cores	4
Processor architecture	ARM Cortex-A57
PCI Express configurations	2x2
PCI Express slots version	2.0
Processor operating modes	64-bit

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR4
Maximum RAM supported	16 GB
Memory form factor	UDIMM
Memory slots	1
Flash memory	512 MB

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Ethernet LAN data rate supported (max)	10000 Mbit/s
Wi-Fi	No
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Dynamic DNS (DDNS)	Yes

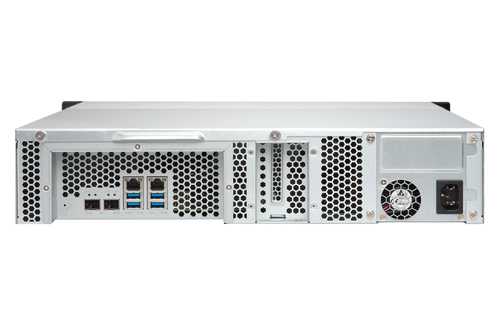

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB port	Yes
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Fiber ports quantity	2
Fiber optic connector	SFP+

Design

Specification	Value
Chassis type	Rack (2U)
Cooling type	Active
Product colour	Black
Number of fans	2 fan(s)
Fan diameter	7 cm
Fan diameter 2	7 cm
LED indicators	HDD, LAN, Status
Cable lock slot	Yes
Cable lock slot type	Kensington

Performance

Specification	Value
Type	NAS
Device class	Large Enterprise Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Noise level	41.6 dB
Snapshot	Yes
Browser supported	Apple Safari 7, Google Chrome, Microsoft Internet Explorer 10, Mozilla Firefox
On/off switch	Yes
Reset button	Yes
S.M.A.R.T. support	Yes
Security algorithms	256-bit AES, HTTPS, SSH
Universal Plug and Play (UPnP)	Yes

Software

Specification	Value
Operating system installed	QNAP Turbo System
Operating system version	4.3.4
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016

Power

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	250 W
Number of power supply units	1
Power consumption (typical)	77.32 W
Power consumption (HDD standby)	36.31 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Fan voltage	12 V
Output current	3.5 A

Weight & dimensions

Specification	Value
Width	482 mm
Depth	534 mm
Height	89 mm
Weight	9.93 kg

Packaging content

Specification	Value
Cables included	AC, LAN (RJ-45)
Quick installation guide	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%

Other features

Specification	Value
Compliance certificates	RoHS
