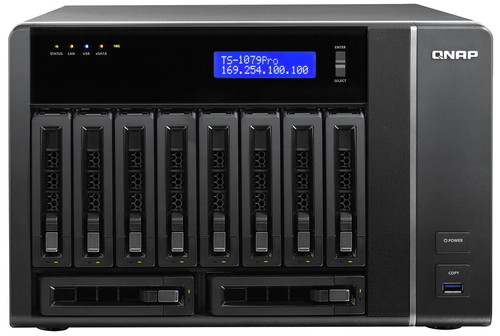

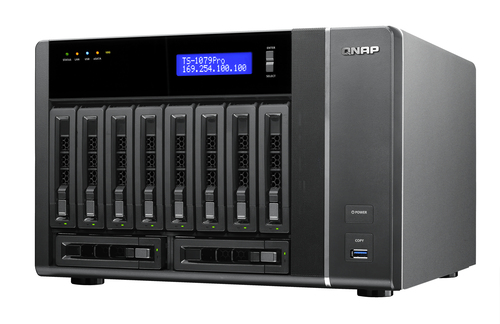

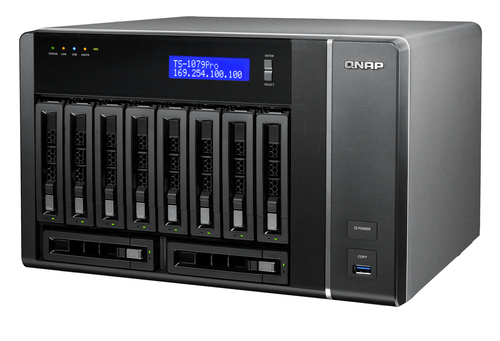

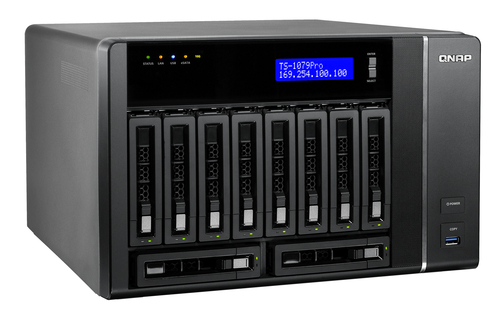

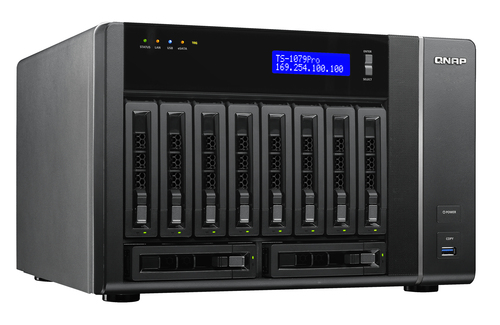

TS-1079PRO-40TB-EC NAS Tower Intel® Core™ i3 i3-2120
2 GB DDR3 10 TB HDD Embedded LINUX Aluminium, Black
Model TS-1079PRO-40TB-ECPart no. TS-1079PRO-10TB
116 specifications
- ProcessorIntel® Core™ i3
- Memory2 GB
- Noise28.87 dB
- TypeNAS
- OSEmbedded LINUX
- Weight9.84 kg
Overview
- Processor
- Intel® Core™ i3
- Memory
- 2 GB
- Noise
- 28.87 dB
- Type
- NAS
- OS
- Embedded LINUX
- Weight
- 9.84 kg
- Brand
- QNAP
- Category
- NAS & Storage Servers
- Model
- TS-1079PRO-40TB-EC
- Part numbers
- TS-1079PRO-10TB, TS-1079PRO-10TB-EC, TS-1079PRO-20TB-EC, TS-1079PRO-20TB-TS, TS-1079PRO-30TB-EC, TS-1079PRO-10TB-RED +23 more
- Also known as
- QNAP TS-1079PRO-40TB-EC NAS Tower Intel® Core™ i3 i3-2120 2 GB DDR3 10 TB HDD Embedded LINUX Aluminium, Black
Specifications
116 specifications in 13 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Total installed storage capacity | 10 TB |
| Number of storage drives supported | 10 |
| Installed storage drive type | HDD |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5+HS, 5, 6, 6+HS, 10+HS, 10 |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| Hot-swap drive bays | Yes |
| Supported file systems | FAT32, HFS+, NTFS, ext3, ext4 |
| Bad block scan | Yes |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 2nd gen Intel® Core™ i3 |
| Processor model | i3-2120 |
| Processor frequency | 3.3 GHz |
| Processor cores | 2 |
| Bus type | DMI |
| CPU configuration (max) | 1 |
| CPU multiplier (bus/core ratio) | 33 |
| Number of processors supported | 1 |
| On-board graphics card model | Intel® HD Graphics 2000 |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR3 |
| Flash memory | 512 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| DHCP client | Yes |
| DHCP server | Yes |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| Wake-on-LAN ready | Yes |
| Dynamic DNS (DDNS) | Yes |
| Link aggregation | Yes |
| Supported network protocols | CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, SMSC |
| WLAN adapter supported | Yes |

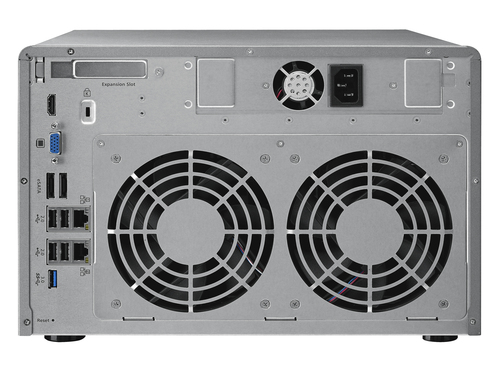

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | Yes |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| eSATA ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Cooling type | Active |
| Product colour | Aluminium, Black |
| Number of fans | 2 fan(s) |
| Fan diameter | 12 cm |
| LED indicators | HDD, LAN, Status, USB |
| Built-in display | Yes |
| Display type | LCD |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Performance
| Specification | Value |
|---|---|
| Type | NAS |
| Backup function | Yes |
| Backup features | Cloud, USB drive, iSCSI LUN |
| Buzzer | Yes |
| Multilingual support | Yes |
| Noise level | 28.87 dB |
| Third-party support | Yes |
| Snapshot | Yes |
| Management protocols | SNMP |
| Share folder access right management | Yes |
| Web-based management | Yes |
| Backup button | Yes |
| Browser supported | Microsoft Internet Explorer 10+, Mozilla Firefox 8, 9, 10, Apple Safari 4, 5, Google Chrome |
| Built-in FTP server | Yes |
| Hot spare | Yes |
| On/off switch | Yes |
| Reset button | Yes |
| S.M.A.R.T. support | Yes |
| Security algorithms | 256-bit AES, FIPS 140-2, HTTPS, SNMP, SNMPv2, SNMPv3, SSH |
| System log | Yes |
| USB copy function | Yes |
| Universal Plug and Play (UPnP) | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Embedded LINUX |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basi |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.7 Lion, Mac OS X 10.7.5 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
Power
| Specification | Value |
|---|---|
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 350 W |
| Number of power supply units | 1 |
| Power consumption (typical) | 121 W |
| Power consumption (sleep) | 40 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Fan voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 327 mm |
| Depth | 321.2 mm |
| Height | 217.5 mm |
| Weight | 9.84 kg |
| Package weight | 15.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, LAN (RJ-45) |
| Power cables quantity | 1 |
| Number of screws | 64 |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Dual Display Capable Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Similar products
All nas & storage servers
QNAP

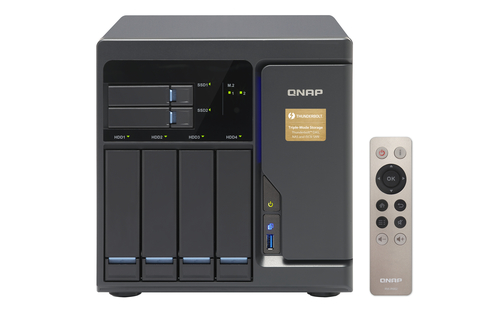

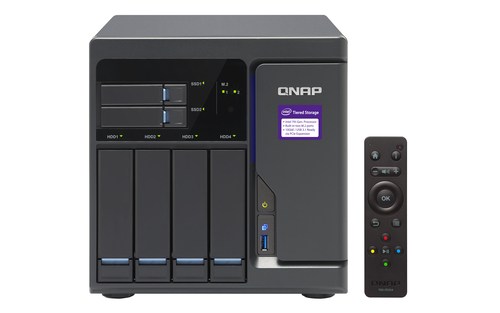

TVS-682 NAS Tower Intel® Core™ i3 i3-6100
Model TVS-682
- Processor
- Intel® Core™ i3
- Memory
- 8 GB
- Noise
- 20.5 dB
QNAP
TS-453BE-4G NAS Desktop Intel® Celeron® J3455
Model TS-453BE-4G
- Processor
- Intel® Celeron®
- Memory
- 2 GB
- Type
- NAS
QNAP
TS-453BE-2G NAS Desktop Intel® Celeron® J3455
Model TS-453BE-2G
- Processor
- Intel® Celeron®
- Memory
- 2 GB
- Type
- NAS
QNAP

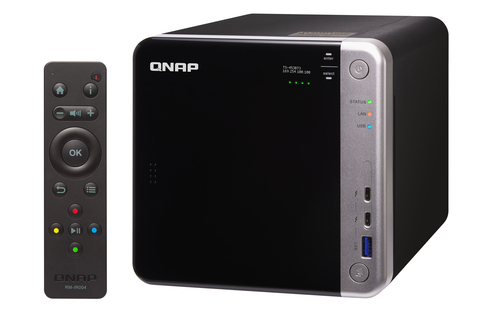

TS-453BT3 NAS Tower Intel® Celeron® J3455
Model TS-453BT3
- Processor
- Intel® Celeron®
- Memory
- 8 GB
- Type
- NAS
QNAP

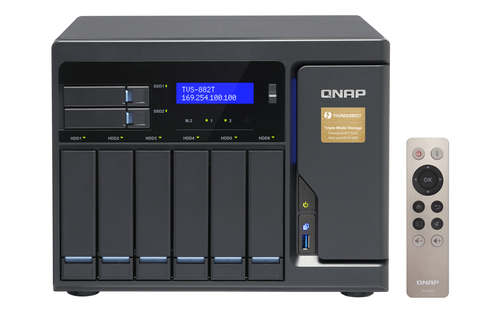

TVS-882T NAS Tower Intel® Core™ i5 i5-6500
Model TVS-882T
- Processor
- Intel® Core™ i5
- Memory
- 16 GB
- Noise
- 21.8 dB
QNAP

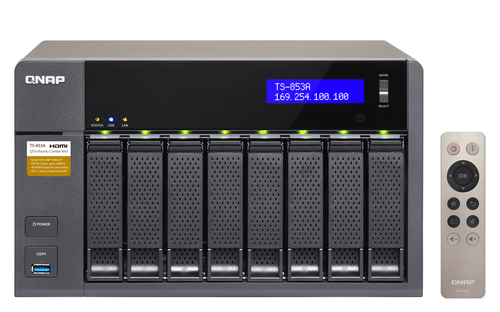

TS-853A NAS Tower Intel® Celeron® N3150
Model TS-853A
- Processor
- Intel® Celeron®
- Memory
- 4 GB
- Noise
- 22.1 dB
QNAP

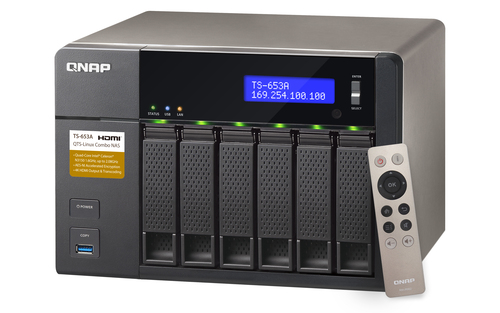

TS-653A NAS Tower Intel® Celeron® N3150
Model TS-653A
- Processor
- Intel® Celeron®
- Memory
- 4 GB
- Noise
- 21 dB
QNAP

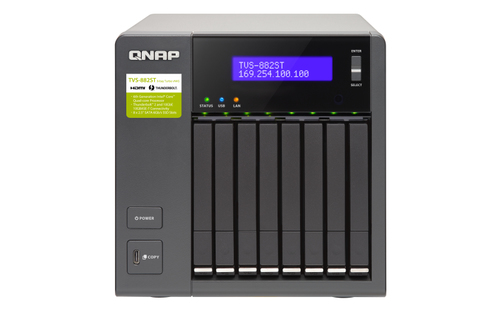

TVS-882ST NAS Desktop Intel® Core™ i5 i5-6442EQ
Model TVS-882ST
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Noise
- 15.2 dB
QNAP
TVS-871U-RP-I5-8G + 8 x 2TB Seagate IronWolf NAS HDD - Seagate Rescue Service
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Type
- NAS
QNAP

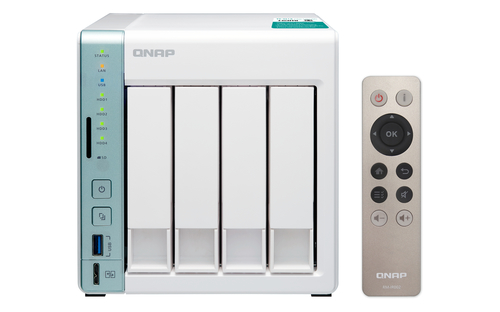

TS-451A NAS Tower Intel® Celeron® N3060
Model TS-451A
- Processor
- Intel® Celeron®
- Memory
- 2 GB
- Noise
- 18.1 dB
QNAP
TVS-682T NAS Tower Intel® Core™ i3 i3-6100
Model TVS-682T
- Processor
- Intel® Core™ i3
- Memory
- 8 GB
- Noise
- 20.5 dB
QNAP

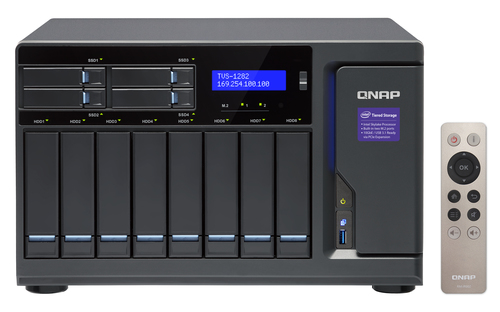

TVS-1282-I3-8G NAS Tower Intel® Core™ i3 i3-6100
