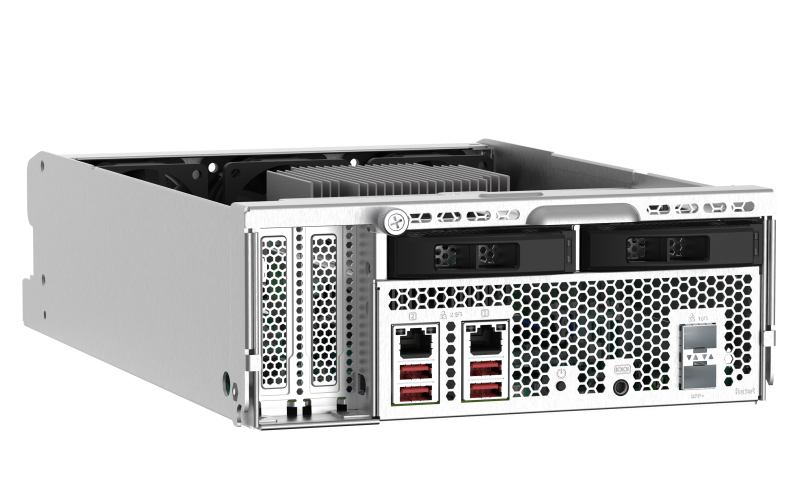

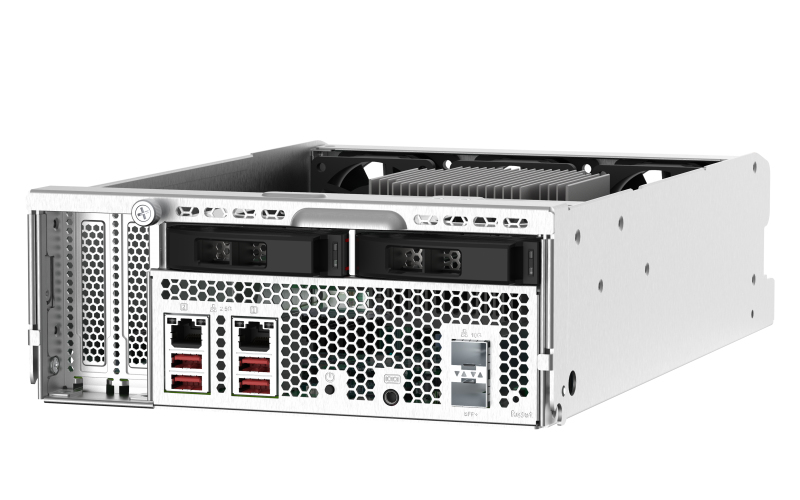

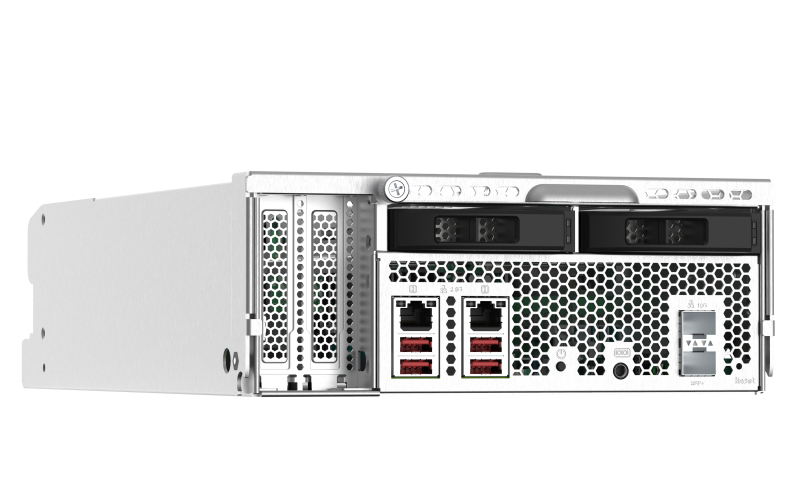

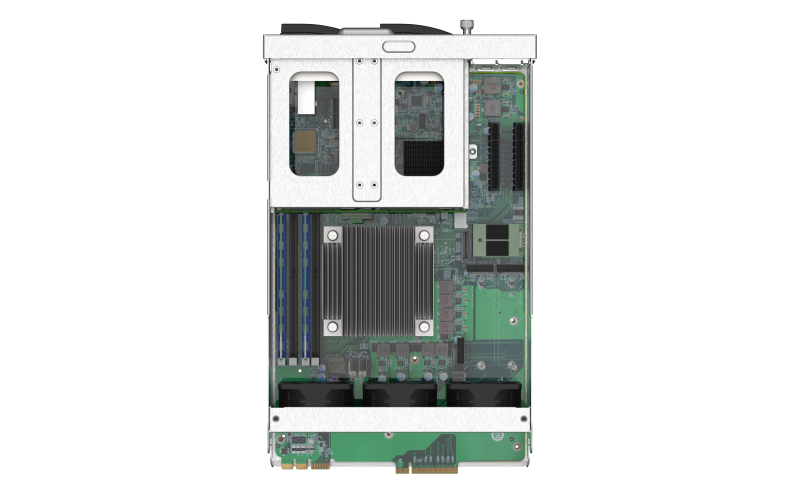

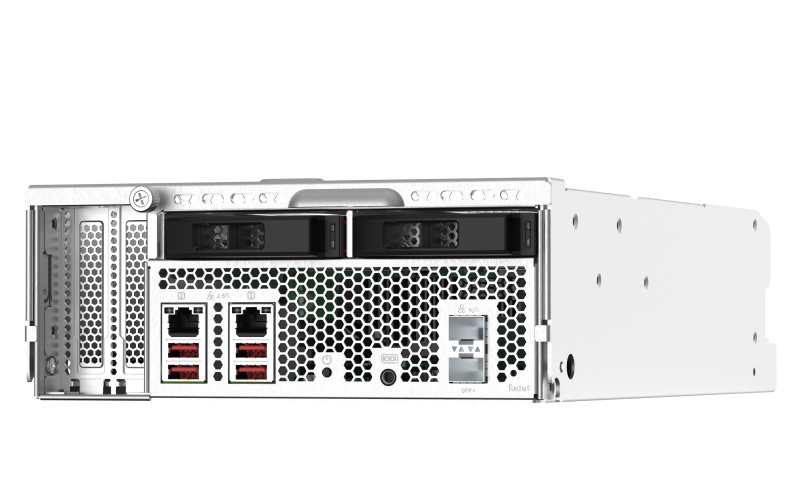

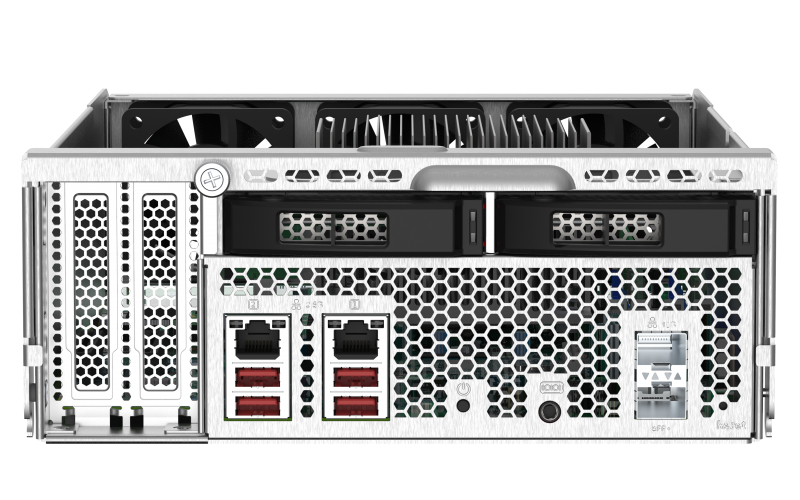

QNAP TNS-h1083X NAS Intel® Xeon® E-2236: Full Specifications

Overview

Processor: Intel® Xeon®
Memory: 16 GB
Type: NAS
Colour: Silver
Storage drives installed: No
Processor manufacturer: Intel

Brand: QNAP
Category: NAS & Storage Servers
Model: TNS-h1083X
Part numbers: TNS-H1083X-E2234-8G, TNS-H1083X-E2236-16G
EAN / UPC: 885022020119, 885022020126, 4713213518106, 4713213518090
Also known as: QNAP TNS-h1083X NAS Intel® Xeon® E-2236 16 GB DDR4 Silver

Specifications

41 specifications in 10 groups

Storage

Specification	Value
Storage drives installed	No
Storage drive interface	M.2

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon®
Processor model	E-2236
Processor frequency	3.4 GHz
Processor cores	6
CPU configuration (max)	1

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4
Maximum RAM supported	128 GB
Memory form factor	UDIMM
Memory slots	4
Flash memory	5120 MB

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Jumbo frames support	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	0
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
PCI Express x4 (Gen 3.x) slots	1
PCI Express x8 (Gen 3.x) slots	1

Design

Specification	Value
Product colour	Silver

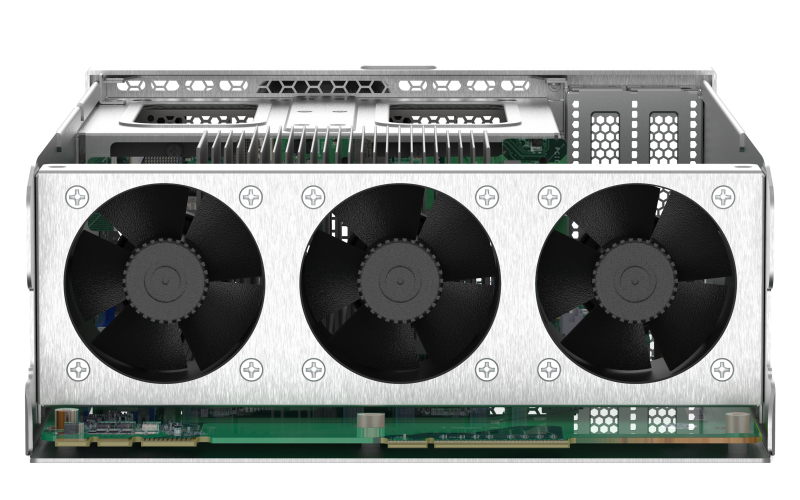

Number of fans	3 fan(s)
Fan diameter	6 cm

Performance

Specification	Value
Type	NAS

Weight & dimensions

Specification	Value
Width	86.9 mm
Depth	219.6 mm
Height	369.4 mm

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Logistics data

Specification	Value
Harmonized System (HS) code	84714100
