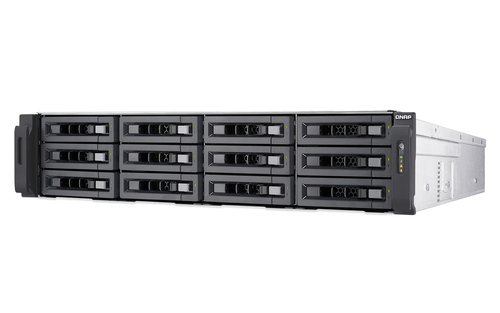

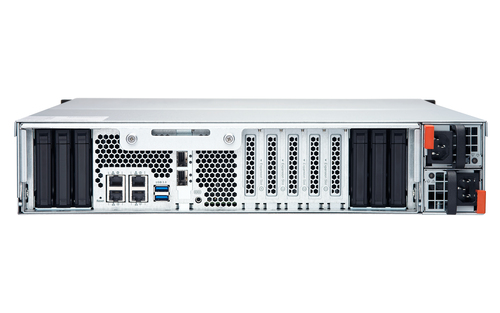

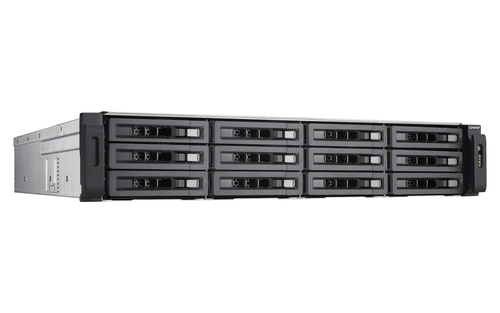

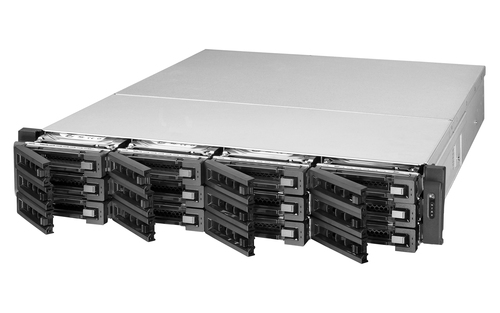

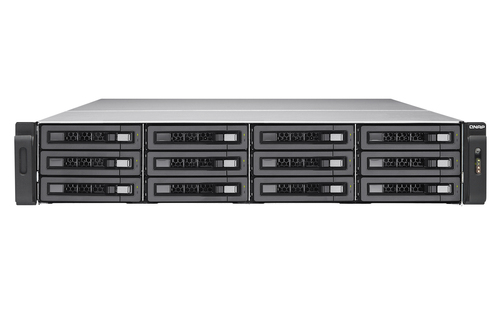

TES-1885U-D1521-8GR NAS Rack (2U) Intel® Xeon® D D-1521

8 GB DDR4 144 TB QNAP QTS Black, Grey

Model TES-1885U-D1521-8GRPart no. TES-1885U-D1521-8GR/48TB-USTAREAN 5051868197116

124 specifications

Overview

Brand: QNAP
Category: NAS & Storage Servers
Model: TES-1885U-D1521-8GR
Part numbers: TES-1885U-D1521-8GR/48TB-USTAR, TES-1885U-D1521-8GR/144TB-USTAR, TES-1885U-D1521-8GR/72TB-USTAR, TES-1885U-D1521-8GR/120TB-USTAR, TES-1885U-D1521-8GR/96TB-USTAR
EAN / UPC: 5051868197116, 5051868197260, 5051868197147, 5051868197253 +1 more
Also known as: QNAP TES-1885U-D1521-8GR NAS Rack (2U) Intel® Xeon® D D-1521 8 GB DDR4 144 TB QNAP QTS Black, Grey

124 specifications in 13 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	144 TB
Number of storage drives supported	18
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	Serial ATA, Serial Attached SCSI (SAS)
Storage drive sizes supported	2.5,3.5"
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, 50, 60, JBOD
Online RAID migration	Yes
Online RAID expansion	Yes
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, ext4
Bad block scan	Yes
Disk roaming	Yes

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN data rate supported (max)	10000 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Dynamic DNS (DDNS)	Yes
Link aggregation	Yes
Load balancing system	Yes
Supported network protocols	CIFS/SMB2/SMB3, NFS v3/NFS v4, FTP, FTPS, TFTP, HTTP, HTTPS, SSH, iSCSI, SNMP, SMTP, SMSC
WLAN adapter supported	Yes

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Fiber ports quantity	2
Fiber optic connector	SFP+

Specification	Value
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Third-party support	Yes
Video input channels	8 channels
Card reader integrated	No
Snapshot	Yes
Management protocols	SNMP V1/V2 & V3
Web-based management	Yes
Access Control List (ACL)	Yes
Backup button	No
Browser supported	Microsoft Internet Explorer, Mozilla Firefox, Apple Safari, Google Chrome
Built-in FTP server	Yes
Built-in UPnP AV media server	Yes
Hot spare	Yes
On/off switch	Yes
Password authentication	Yes
Remotely operated	Yes
Reset button	Yes
S.M.A.R.T. support	Yes
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS
System log	Yes
USB copy function	No
Universal Plug and Play (UPnP)	Yes

Specification	Value
Operating system installed	QNAP QTS
Operating system version	4.2
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	450 W
Number of power supply units	2
Redundant power supply (RPS) support	Yes
Power consumption (typical)	229.53 W
AC input voltage	100 - 240 V
AC input frequency	47 / 63 Hz

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Enhanced Halt State	Yes
Intel Secure Key Technology version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 70 °C
