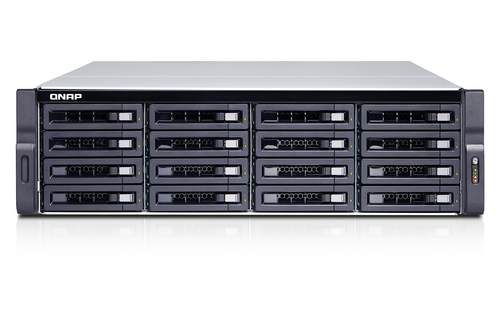

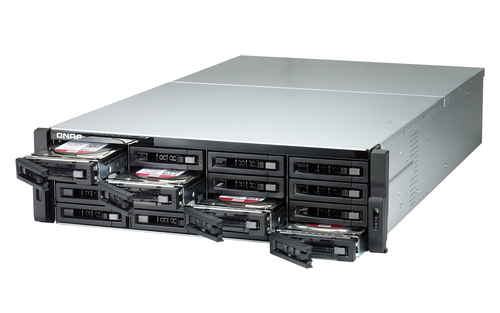

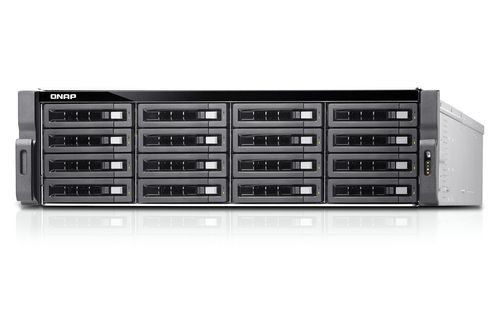

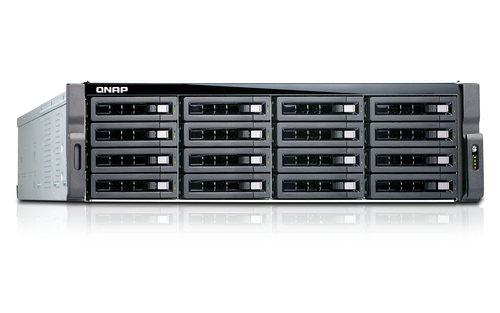

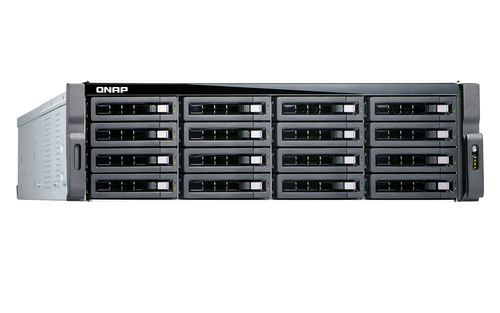

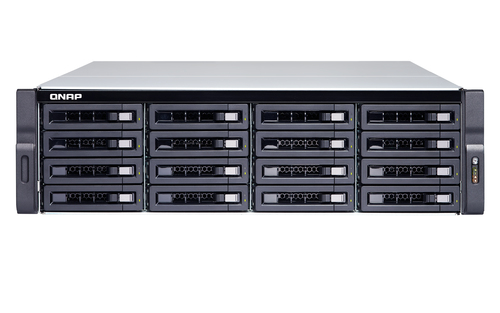

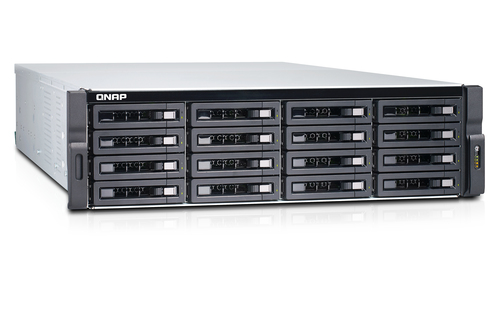

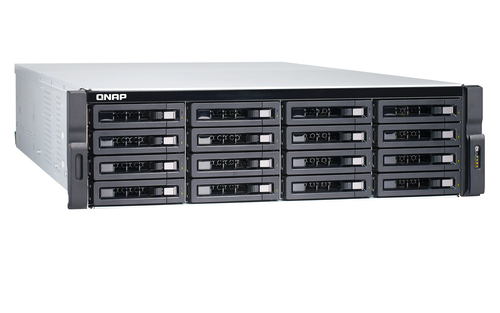

QNAP TDS-16489U R2
QNAP

TDS-16489U R2

Model TDS-16489U R2Part no. TDS-16489U-SE1-R2/64TB-IWPEAN 5050914121914

149 specifications
  • ProcessorIntel® Xeon® E5 v4
  • Memory128 GB
  • Noise37.8 dB
  • TypeNAS
  • OSQNAP QES
  • Weight22.4 kg
See all specifications

Overview

Processor
Intel® Xeon® E5 v4
Memory
128 GB
Noise
37.8 dB
Type
NAS
OS
QNAP QES
Weight
22.4 kg
Brand
QNAP
Model
TDS-16489U R2
Part numbers
TDS-16489U-SE1-R2/64TB-IWP, TDS-16489U-SE2-R2, TDS-16489U-SF3-R2, TDS-16489U-SF2-R2, TDS-16489U-SE1-R2, TDS-16489U-SF3-R2/128TB-EXOS +34 more
EAN / UPC
5050914121914, 4713213515600, 4713213515631, 4713213515624 +56 more
Also known as
QNAP TDS-16489U R2 NAS Rack (3U) Intel® Xeon® E5 v4 E5-2620V4 128 GB DDR4 0 TB QNAP QES Black, Grey

Specifications

149 specifications in 15 groups

Storage

Storage drives installedNo
Total installed storage capacity0 TB
Number of storage drives installed0
Number of storage drives supported20
Installed storage drive typeNo
Supported storage drive typesHDD & SSD
Storage drive capacity0 GB
Supported storage drive interfacesSerial ATA, Serial Attached SCSI (SAS)
Storage drive sizes supported2.5,3.5"
RAID supportYes
RAID levels0, 1, 5, 6, 10, 50, 60, JBOD
Online RAID migrationYes
Online RAID expansionYes
RAID rebuildYes
Hot-swap drive baysYes
Supported file systemsFAT32, HFS+, NTFS, ZFS, ext3, ext4

Processor

Processor manufacturerIntel
Processor familyIntel® Xeon® E5 v4
Processor modelE5-2620V4
Processor frequency2.1 GHz
Processor boost frequency3 GHz
Processor cores8
Processor threads16
Processor cache20 MB
Bus typeQPI
CPU configuration (max)2
ECC supported by processorYes
PCI Express slots version3.0
Physical Address Extension (PAE)46 bit
Processor cache typeSmart Cache
Processor codeSR2R6
Processor codenameBroadwell
Processor lithography14 nm
Processor operating modes64-bit
Processor package size45 x 52.5 mm
Processor seriesIntel Xeon E5-2600 v4
Processor socketLGA 2011-v3
Scalability2S
SteppingR0
System bus rate8 GT/s
Tcase74 °C
Thermal Design Power (TDP)85 W
Maximum internal memory supported by processor1.53 TB
Memory bandwidth supported by processor (max)68.3 GB/s
Conflict-Free processorYes

Memory

Internal memory128 GB
Internal memory typeDDR4
Maximum RAM supported1 TB
Memory slots16
Flash memory4000 MB

Network

Ethernet LANYes
Ethernet LAN data rates10,100,1000,10000 Mbit/s
Ethernet LAN data rate supported (max)10000 Mbit/s
Wi-FiNo
DHCP clientYes
DHCP serverYes
Jumbo frames supportYes
iSCSI supportYes
Wake-on-LAN readyYes
Dynamic DNS (DDNS)Yes
Link aggregationYes
Load balancing systemYes
Supported network protocolsTCP/IP (IPv4 & IPv6), CIFS/SMB2/SMB3, NFS v3/NFS v4, FTP, FTPS, TFTP, HTTP, HTTPS, SSH, iSCSI, SNMP, SMTP, SMSC
WLAN adapter supportedYes

Ports & interfaces

Ethernet LAN (RJ-45) ports2
USB portYes
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Fiber ports quantity4
Fiber optic connectorSFP+
PCI Express x8 (Gen 3.x) slots3

Design

Chassis typeRack (3U)
Cooling typeActive
Product colourBlack, Grey
Number of fans4 fan(s)
Fan diameter6 cm
LED indicatorsHDD, LAN, Status

Performance

TypeNAS
Device classSmall & Medium Business
Backup functionYes
Backup featuresCloud, iSCSI LUN
Multilingual supportYes
Noise level37.8 dB
SnapshotYes
Web-based managementYes
Access Control List (ACL)Yes
Browser supportedGoogle Chrome, Microsoft Internet Explorer, Mozilla Firefox, Apple Safari
Built-in FTP serverYes
Built-in iTunes serverYes
Hot spareYes
On/off switchYes
Reset buttonYes
S.M.A.R.T. supportYes
Security algorithms256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS
System logYes

Software

Operating system installedQNAP QES
Windows operating systems supportedWindows 10, Windows 7, Windows 8
Linux operating systems supportedYes
Mac operating systems supportedYes
Server operating systems supportedWindows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016

Power

Power supply locationBuilt-in
Power supply unit (PSU) capacity770 W
Number of power supply units1
Redundant power supply (RPS) supportYes
Power consumption (typical)362.86 W
Power consumption (HDD standby)254.21 W
AC input voltage100-127/200-240 V
AC input frequency50 - 60 Hz
Fan voltage12 V

Weight & dimensions

Width444 mm
Depth744 mm
Height130.8 mm
Weight22.4 kg
Package weight30.2 kg

Packaging content

Cables includedAC, LAN (RJ-45)
Quick installation guideYes
Number of screws128

Processor special features

Embedded options availableYes
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Demand Based SwitchingYes
Intel Enhanced Halt StateYes
Intel Flex Memory AccessNo
Intel Identity Protection Technology version0.00
Intel Secure Key Technology version1.00
Intel TSX-NIYes
Intel TSX-NI version1.00
Intel Trusted Execution TechnologyYes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Identity Protection Technology (Intel® IPT)No
Intel® OS GuardYes
Intel® Secure KeyYes
Intel® Turbo Boost Technology2.0
Maximum number of PCI Express lanes40
Number of QPI links2
Physical Address Extension (PAE)Yes
Thermal Monitoring TechnologiesYes
Memory channels supported by processorQuad
Memory types supported by processorDDR4-SDRAM

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)5 - 95%

Logistics data

Harmonized System (HS) code84714100

Other features

Processor ARK ID92986
