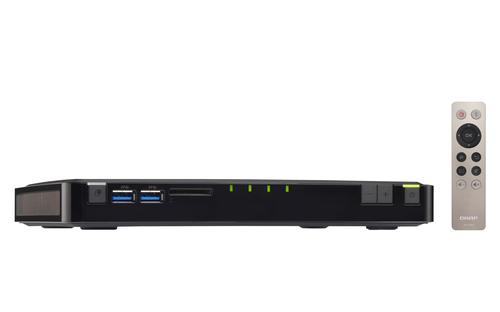

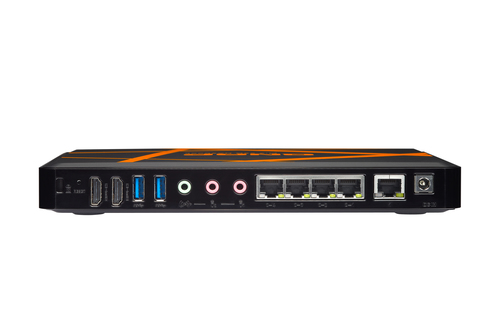

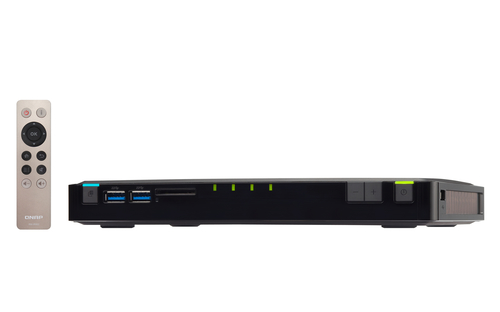

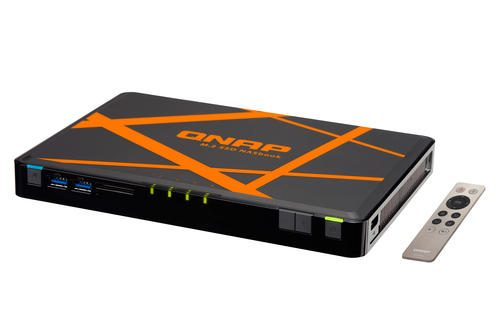

QNAP TBS-453A NAS Compact Intel® Celeron® N3150

4 GB DDR3L 0 TB QNAP Turbo System Black, Orange

Model TBS-453APart no. TBS-453A-8G/2X2,0TBEAN 5055628427741

154 specifications

ProcessorIntel® Celeron®
Memory4 GB
Noise10.8 dB
TypeNAS
OSQNAP Turbo System
Weight724 g

See all specifications

Overview

Processor: Intel® Celeron®
Memory: 4 GB
Noise: 10.8 dB
Type: NAS
OS: QNAP Turbo System
Weight: 724 g

Brand: QNAP
Category: NAS & Storage Servers
Model: TBS-453A
Part numbers: TBS-453A-8G/2X2,0TB, TBS-453A-8G/2X3,0TB, TBS-453A-8G/2X4,0TB, TBS-453A-8G/4X1,0TB, TBS-453A-8G/4X2,0TB, TBS-453A-8G/4X3,0TB +34 more
EAN / UPC: 5055628427741, 5055628427758, 5055628427680, 5055628440580 +18 more
Also known as: QNAP TBS-453A NAS Compact Intel® Celeron® N3150 4 GB DDR3L 0 TB QNAP Turbo System Black, Orange

Specifications

154 specifications in 15 groups

Storage

Specification	Value
Storage drives installed	No
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	4
Installed storage drive type	No
Supported storage drive types	SSD
Storage drive interface	M.2, Serial ATA III
Storage drive size	2.5"
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, ext3, ext4

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	N3150
Processor frequency	1.6 GHz
Processor boost frequency	2.08 GHz
Processor cores	4
Processor threads	4
Processor cache	2 MB
L2 cache	2 MB
CPU configuration (max)	1
ECC supported by processor	No
Integrated 4G WiMAX	No
PCI Express configurations	1x4, 4x1
PCI Express slots version	2.0
Processor cache type	Smart Cache
Processor code	SR29F
Processor codename	Braswell
Processor lithography	14 nm
Processor operating modes	64-bit
Processor package size	25 x 27 mm
Processor series	Intel Celeron N3000 series
Processor socket	BGA 1170
Scenario Design Power (SDP)	4 W
Stepping	C0
System bus rate	5 GT/s
Thermal Design Power (TDP)	6 W
Tjunction	90 °C
On-board graphics card model	Intel® HD Graphics
Maximum internal memory supported by processor	8 GB
Conflict-Free processor	Yes

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3L
Memory clock speed	1600 MHz
Maximum RAM supported	8 GB
Memory slots	2
Flash memory	4096 MB

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Supported network protocols	CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	5
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Fiber ports quantity	0
HDMI ports quantity	2

Graphics

Specification	Value
On-board graphics card base frequency	320 MHz
On-board graphics card burst frequency	640 MHz
Maximum on-board graphics card memory	8 GB
Number of displays supported (on-board graphics)	3

Design

Specification	Value
Chassis type	Compact
Cooling type	Active
Product colour	Black, Orange
Fan diameter	1 mm
Drive bay locking	Yes
LED indicators	Power, SSD, Status, USB
Cable lock slot	Yes
Cable lock slot type	Kensington

Performance

Specification	Value
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Noise level	10.8 dB
Access Control List (ACL)	Yes
Browser supported	Microsoft Internet Explorer 10+, Mozilla Firefox 8+, Apple Safari 4+, Google Chrome
On/off switch	Yes
Reset button	Yes
S.M.A.R.T. support	Yes
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS

Software

Specification	Value
Operating system installed	QNAP Turbo System
Operating system version	4.2
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 8, Windows 8 x64
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2003, Windows Server 2003 R2, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2

Power

Specification	Value
Power supply location	External
Power supply unit (PSU) capacity	65 W
Power consumption (typical)	15.2 W
Power consumption (sleep)	13.05 W
Power consumption (off)	0.98 W
Output voltage	19 V

Weight & dimensions

Specification	Value
Width	230 mm
Depth	165 mm
Height	25 mm
Weight	724 g

Packaging content

Specification	Value
External power adapter	Yes
Cables included	AC, LAN (RJ-45)
Quick installation guide	Yes
Number of screws	6

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Boot	Yes
Intel Secure Boot Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	0.00
Intel Smart Connect Technology	No
Intel Smart Connect Technology version	0.00
Intel Smart Response Technology version	0.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® OS Guard	No
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	Yes
Maximum number of PCI Express lanes	4
Number of execution units	12
Thermal Monitoring Technologies	Yes
UART	Yes
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3L-SDRAM

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%

Other features

Specification	Value
Processor ARK ID	87258
