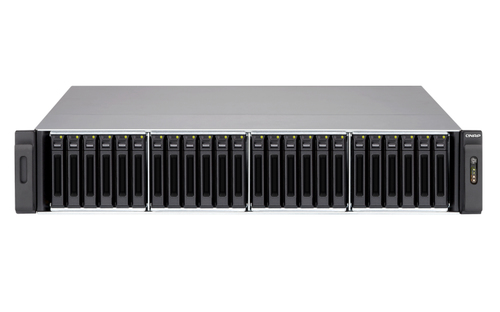

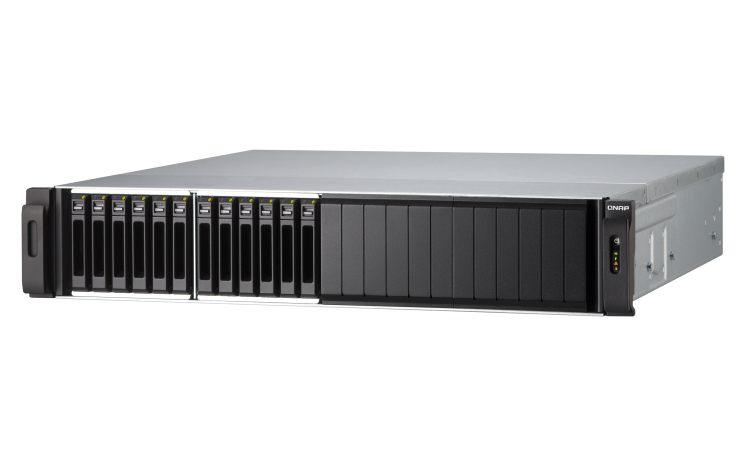

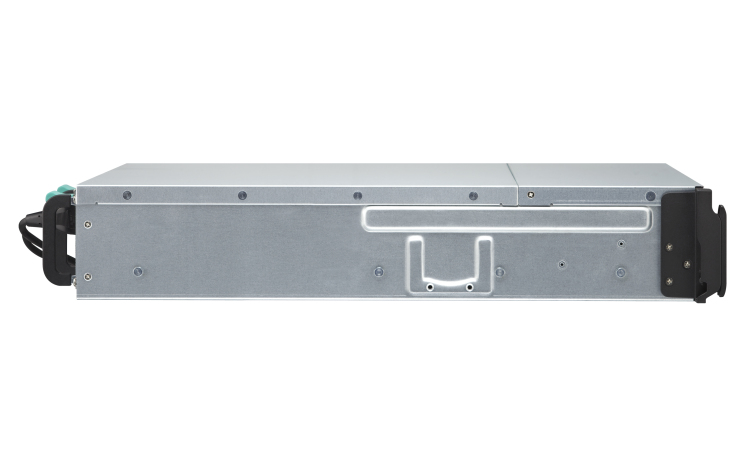

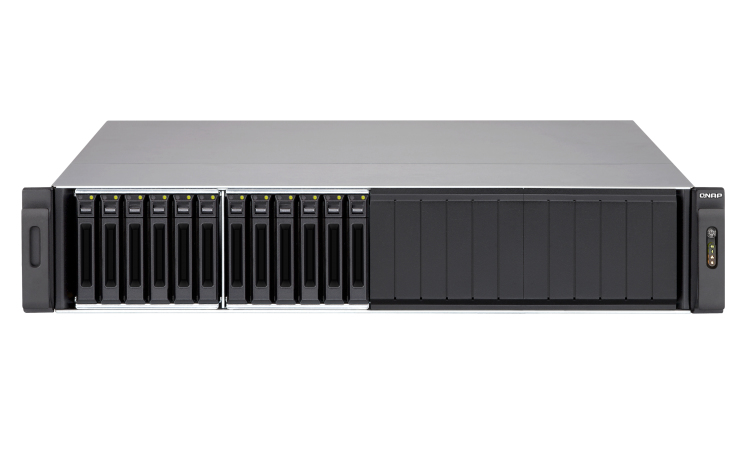

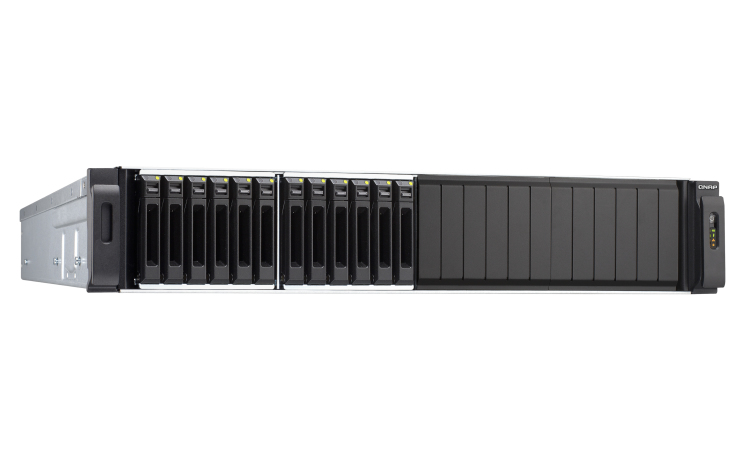

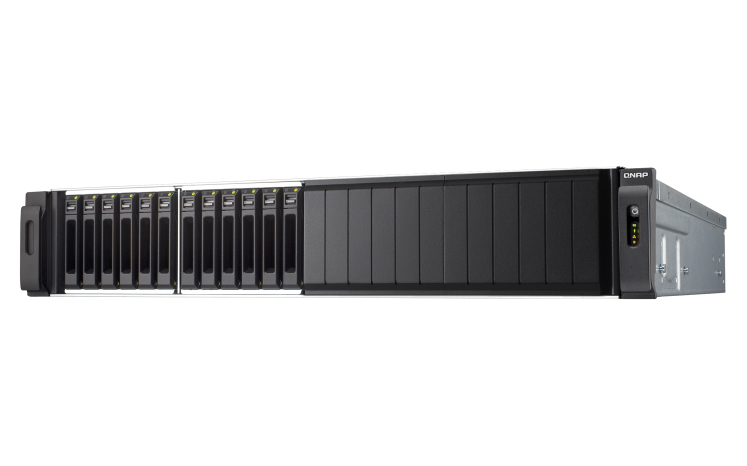

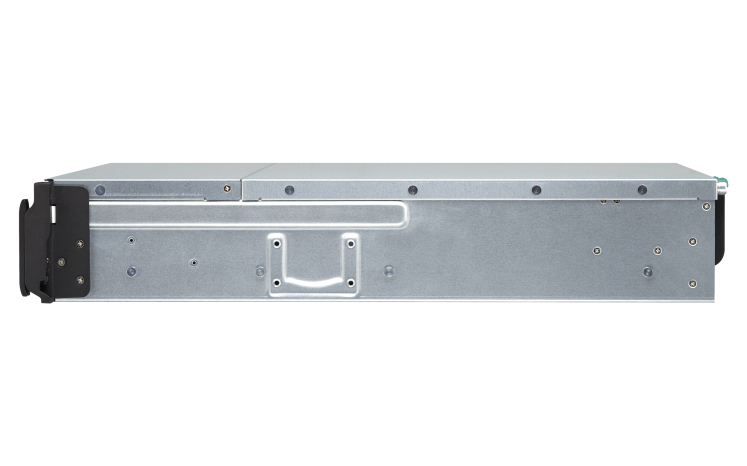

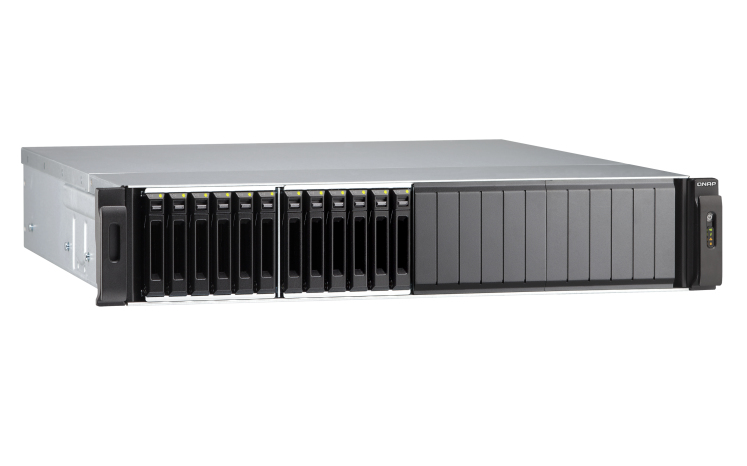

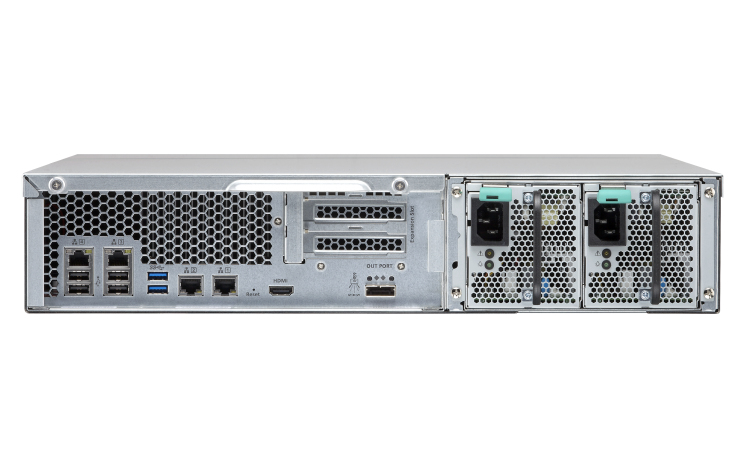

QNAP SS-EC1279U-SAS-RP NAS/storage server Rack (2U) Intel® Xeon® E3 V2 Family E3-1245V2

8 GB DDR3 Black

Model SS-EC1279U-SAS-RPEAN 4712511124620

111 specifications

Overview

Brand: QNAP
Category: NAS & Storage Servers
Model: SS-EC1279U-SAS-RP
Part number: SS-EC1279U-SAS-RP
EAN / UPC: 4712511124620, 5050914749217
Also known as: QNAP SS-EC1279U-SAS-RP NAS/storage server Rack (2U) Intel® Xeon® E3 V2 Family E3-1245V2 8 GB DDR3 Black

111 specifications in 14 groups

Specification	Value
Storage drives installed	No
Number of storage drives supported	12
Supported storage drive types	HDD & SSD
Storage drive interface	Serial ATA II, Serial ATA III
Storage drive size	2.5"
RAID support	Yes
Hot-swap drive bays	Yes

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E3 V2 Family
Processor model	E3-1245V2
Processor frequency	3.4 GHz
Processor boost frequency	3.8 GHz
Processor cores	4
Processor threads	8
Processor cache	8 MB
Bus type	DMI
CPU configuration (max)	1
CPU multiplier (bus/core ratio)	34
ECC supported by processor	Yes
PCI Express configurations	1x16+1x4, 1x8+3x4, 2x8+1x4
PCI Express slots version	3.0
Processor cache type	Smart Cache
Processor code	SR0P9
Processor codename	Ivy Bridge
Processor lithography	22 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor socket	LGA 1155 (Socket H2)
Stepping	E1
System bus rate	5 GT/s
Thermal Design Power (TDP)	77 W
On-board graphics card model	Intel® HD Graphics P4000
Maximum internal memory supported by processor	32 GB
Memory bandwidth supported by processor (max)	25.6 GB/s
Conflict-Free processor	No

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Fiber ports quantity	0
HDMI ports quantity	1

Specification	Value
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1250 MHz
Number of displays supported (on-board graphics)	3

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	600 W
Number of power supply units	1
Power consumption (typical)	157 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Fan voltage	12 V

Specification	Value
External power adapter	No
Cables included	AC

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Thermal Monitoring Technologies	Yes
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%

Specification	Value
Processor ARK ID	65729
