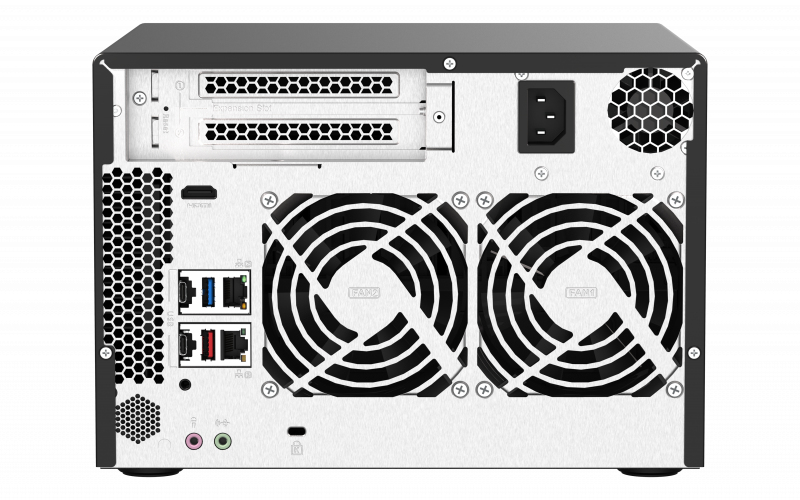

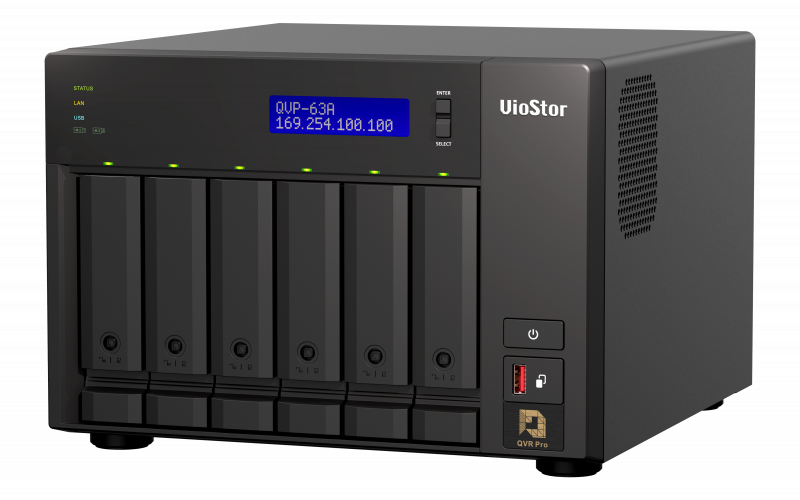

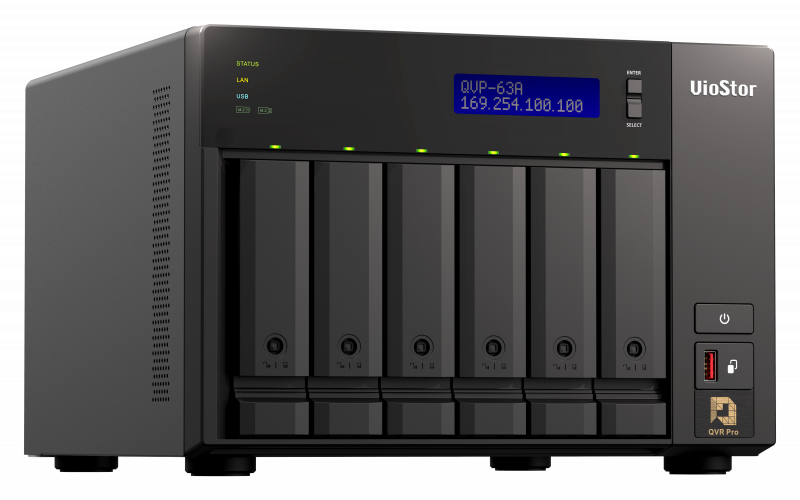

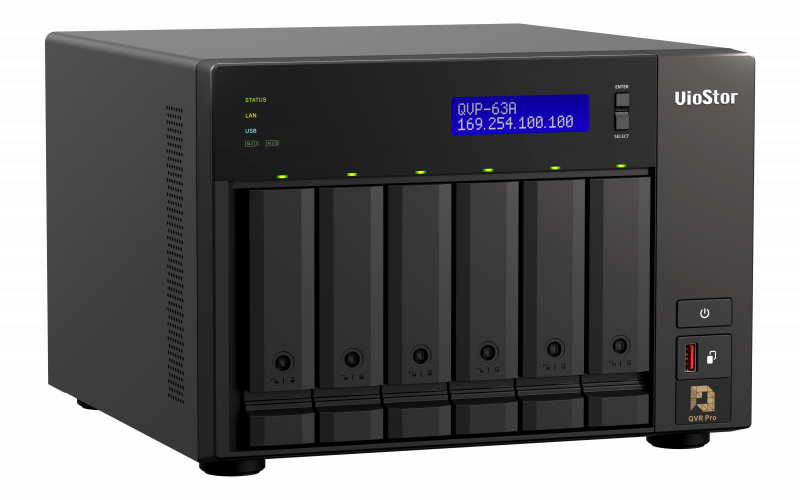

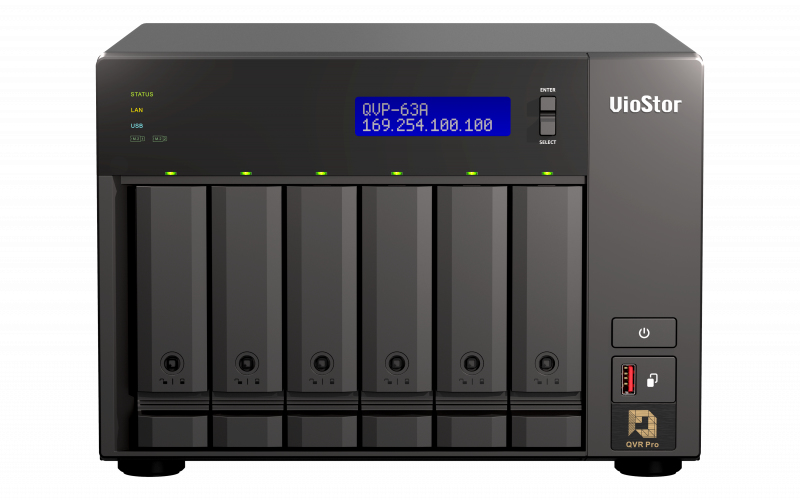

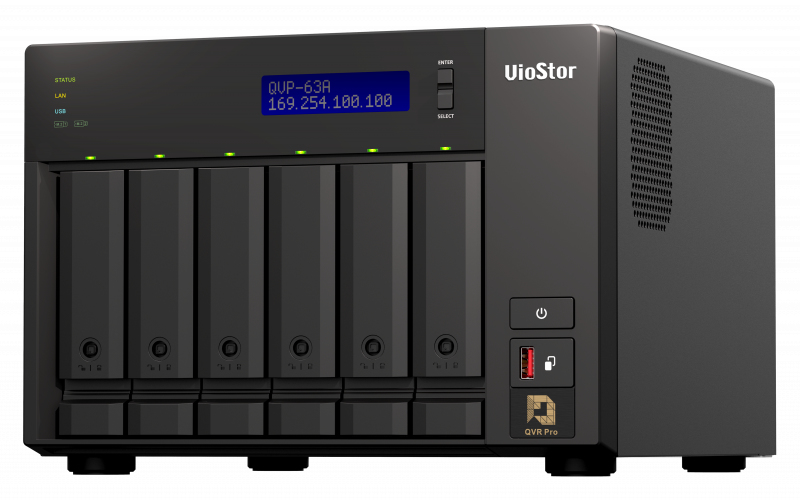

QNAP QVP-63A NAS/storage server Tower Intel® Core™ i3 i3-8100T

QVP-63A NAS/storage server Tower Intel® Core™ i3 i3-8100T

16 GB DDR4 0 TB QVR Pro OS (QVP) Black

Model QVP-63AEAN 4713213518519

105 specifications

ProcessorIntel® Core™ i3
Memory16 GB
Noise23.8 dB
TypeNAS
OSQVR Pro OS (QVP)
Weight6.55 kg

See all specifications

Overview

Processor: Intel® Core™ i3
Memory: 16 GB
Noise: 23.8 dB
Type: NAS
OS: QVR Pro OS (QVP)
Weight: 6.55 kg

Brand: QNAP
Category: NAS & Storage Servers
Model: QVP-63A
Part numbers: QVP-63A, QVP-63A/12TB-GOLD, QVP-63A/48TB-GOLD, QVP-63A/36TB-GOLD, QVP-63A/84TB-GOLD, QVP-63A/6TB-GOLD +2 more
EAN / UPC: 4713213518519
Also known as: QNAP QVP-63A NAS/storage server Tower Intel® Core™ i3 i3-8100T 16 GB DDR4 0 TB QVR Pro OS (QVP) Black

Specifications

105 specifications in 14 groups

Storage

Specification	Value
Storage drives installed	No
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	6
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Storage drive capacity	0 GB
Supported storage drive interfaces	M.2, Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5,3.5"
Number of M.2 (M & B) slots	2
RAID support	Yes
RAID levels	1, 5, 6, 10, JBOD
Online RAID migration	Yes
Online RAID expansion	Yes
Hot-swap drive bays	Yes
Supported file systems	ext4

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	8th gen Intel® Core™ i3
Processor model	i3-8100T
Processor frequency	3.1 GHz
Processor cores	4
Bus type	DMI3
CPU configuration (max)	1
Configurable TDP-down frequency	2.4 GHz

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4
Maximum RAM supported	32 GB
Memory form factor	SO-DIMM
Memory slots	2
Flash memory	5000 MB

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
DHCP server	Yes
Wake-on-LAN ready	Yes
Supported network protocols	HTTP, HTTPS, TCP/IP, UDP, DHCP, Static IP, DNS, DDNS, UPnP, FTP, NTP, and SMTP

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
HDMI ports quantity	1
HDMI version	2.0
Audio in/out	Yes
PCI Express x4 (Gen 3.x) slots	1

Design

Specification	Value
Chassis type	Tower
Cooling type	Active
Product colour	Black
Number of fans	4 fan(s)
Fan diameter	9.2 cm
Fan diameter 2	6 cm
LED indicators	HDD, LAN, Status, USB
Built-in display	Yes
Display type	LCD
Built-in speaker(s)	Yes
Number of built-in speakers	1

Performance

Specification	Value
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud
Buzzer	Yes
Noise level	23.8 dB
Web-based management	Yes
Hot spare	Yes
On/off switch	Yes
Reset button	Yes
S.M.A.R.T. support	Yes
Security algorithms	HTTPS, SSH
System log	Yes
USB copy function	Yes

Software

Specification	Value
Operating system installed	QVR Pro OS (QVP)

Power

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	250 W
Number of power supply units	1
Power consumption (typical)	45.6 W
Power consumption (sleep)	26.52 W
AC input voltage	100-240 V

Weight & dimensions

Specification	Value
Width	264.3 mm
Depth	279.6 mm
Height	188.2 mm
Weight	6.55 kg
Package weight	8.07 kg

Packaging content

Specification	Value
Cables included	AC, LAN (RJ-45)
Power cables quantity	1
Number of screws	56

Processor special features

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%

Logistics data

Specification	Value
Harmonized System (HS) code	84714100
