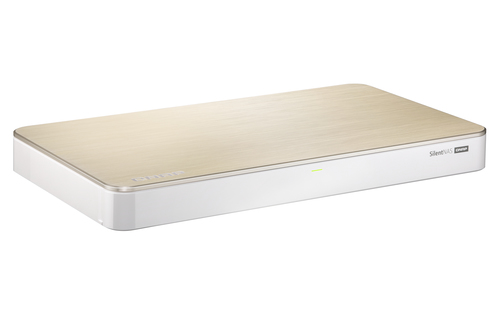

HS-453DX-4G NAS Tower Intel® Celeron® J4105
4 GB DDR4 8 TB HDD QNAP Turbo System Gold, White
Model HS-453DX-4GPart no. HS-453DX-4G+2XST4000VN008
150 specifications
- ProcessorIntel® Celeron®
- Memory4 GB
- Noise6.2 dB
- TypeNAS
- OSQNAP Turbo System
- Weight2.4 kg
Overview
- Processor
- Intel® Celeron®
- Memory
- 4 GB
- Noise
- 6.2 dB
- Type
- NAS
- OS
- QNAP Turbo System
- Weight
- 2.4 kg
- Brand
- QNAP
- Category
- NAS & Storage Servers
- Model
- HS-453DX-4G
- Part numbers
- HS-453DX-4G+2XST4000VN008, HS-453DX-4G+2XST1000VN002, HS-453DX-4G+2XST2000VN004
- Also known as
- QNAP HS-453DX-4G NAS Tower Intel® Celeron® J4105 4 GB DDR4 8 TB HDD QNAP Turbo System Gold, White
Specifications
150 specifications in 15 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Total installed storage capacity | 8 TB |
| Number of storage drives installed | 1 |
| Number of storage drives supported | 4 |
| Installed storage drive type | HDD |
| Supported storage drive types | HDD & SSD |
| Storage drive capacity | 4 TB |
| Supported storage drive interfaces | M.2, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| Number of M.2 (M & B) slots | 2 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| RAID rebuild | Yes |
| Hot-swap drive bays | Yes |
| Supported file systems | FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | J4105 |
| Processor frequency | 1.5 GHz |
| Processor boost frequency | 2.5 GHz |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor cache | 4 MB |
| CPU configuration (max) | 1 |
| ECC supported by processor | No |
| PCI Express configurations | 1x2, 1x2+2x1, 1x4, 2x1, 4x1 |
| PCI Express slots version | 2.0 |
| Processor codename | Gemini Lake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 25 x 24 mm |
| Processor socket | BGA 1090 |
| Thermal Design Power (TDP) | 10 W |
| Tjunction | 105 °C |
| On-board graphics card model | Intel® UHD Graphics 600 |
| Maximum internal memory supported by processor | 8 GB |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 8 GB |
| Memory form factor | SO-DIMM |
| Memory slots | 2 |
| Flash memory | 4096 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Wi-Fi | No |
| DHCP client | Yes |
| DHCP server | Yes |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| Wake-on-LAN ready | Yes |
| Dynamic DNS (DDNS) | Yes |
| Fault tolerance | Yes |
| Link aggregation | Yes |
| Load balancing system | Yes |
| Supported network protocols | TCP/IP, HTTP/HTTPS |

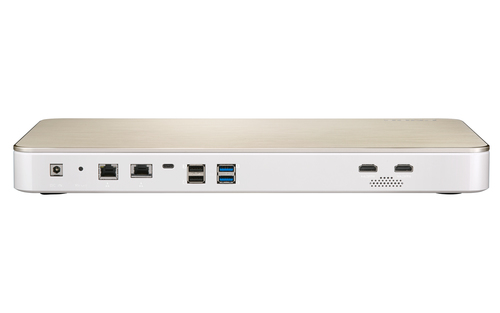

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB port | Yes |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Fiber ports quantity | 0 |
| HDMI ports quantity | 2 |
| HDMI version | 1.4b/2.0 |
| 3.5 mm (1/8-inch) out | Yes |
| Audio in/out | Yes |
| Microphone in | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x3185 |
| On-board graphics card base frequency | 250 MHz |
| On-board graphics card burst frequency | 750 MHz |
| On-board graphics card dynamic frequency (max) | 750 MHz |
| Maximum on-board graphics card memory | 8 GB |
| Number of displays supported (on-board graphics) | 3 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Product colour | Gold, White |
| LED indicators | HDD, Power, Status |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
Performance
| Specification | Value |
|---|---|
| Type | NAS |
| Device class | Home & Home Office |
| Backup function | Yes |
| Backup features | Cloud, iSCSI LUN |
| Multilingual support | Yes |
| Noise level | 6.2 dB |
| Snapshot | Yes |
| Management protocols | SNMP v2/v3 |
| Web-based management | Yes |
| Browser supported | Apple Safari 7+, Google Chrome, Microsoft Internet Explorer 10+, Mozilla Firefox |
| Built-in FTP server | Yes |
| Built-in iTunes server | Yes |
| Hot spare | Yes |
| On/off switch | Yes |
| Remotely operated | Yes |
| Reset button | Yes |
| S.M.A.R.T. support | Yes |
| Security algorithms | 256-bit AES, FIPS 140-2, HTTPS, SSH |
| Share folder | CIFS/SMB |
| System log | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | QNAP Turbo System |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 H |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 90 W |
| Power consumption (typical) | 16.93 W |
| Power consumption (HDD standby) | 13.55 W |
| AC input voltage | 100 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 404 mm |
| Depth | 220 mm |
| Height | 43.8 mm |
| Weight | 2.4 kg |
| Package weight | 3.87 kg |
Packaging content
| Specification | Value |
|---|---|
| External power adapter | Yes |
| Cables included | AC, LAN (RJ-45) |
| Quick installation guide | Yes |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Smart Response Technology version | 0.00 |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Smart Response Technology | No |
| Intel® Turbo Boost Technology | No |
| Maximum number of PCI Express lanes | 6 |
| Number of execution units | 12 |
| Thermal Monitoring Technologies | Yes |
| Memory channels supported by processor | Dual |
| Memory types supported by processor | DDR4-SDRAM, LPDDR4-SDRAM |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Other features
| Specification | Value |
|---|---|
| Digital Living Network Alliance (DLNA) certified | Yes |
| Processor ARK ID | 128989 |
