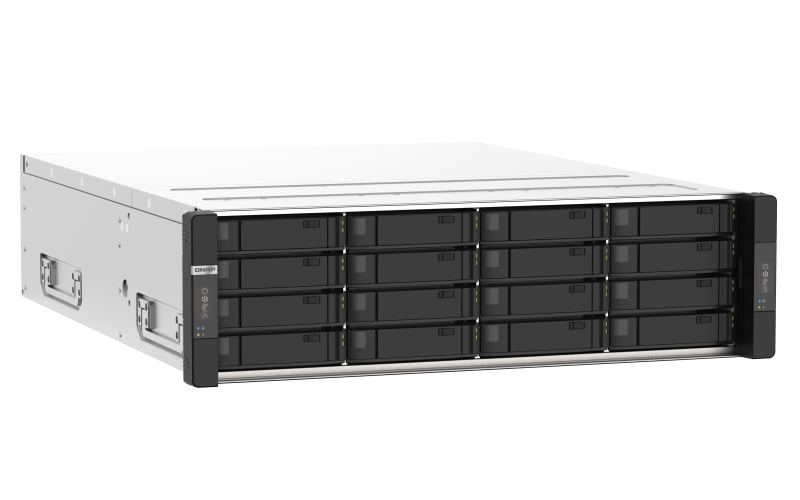

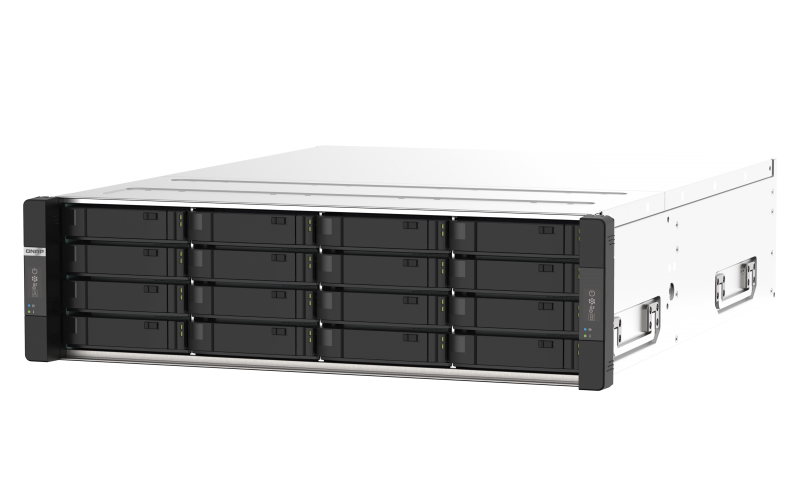

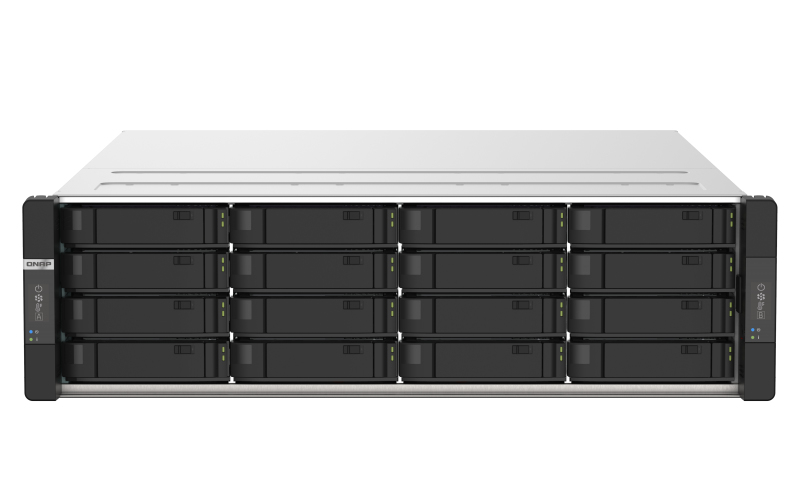

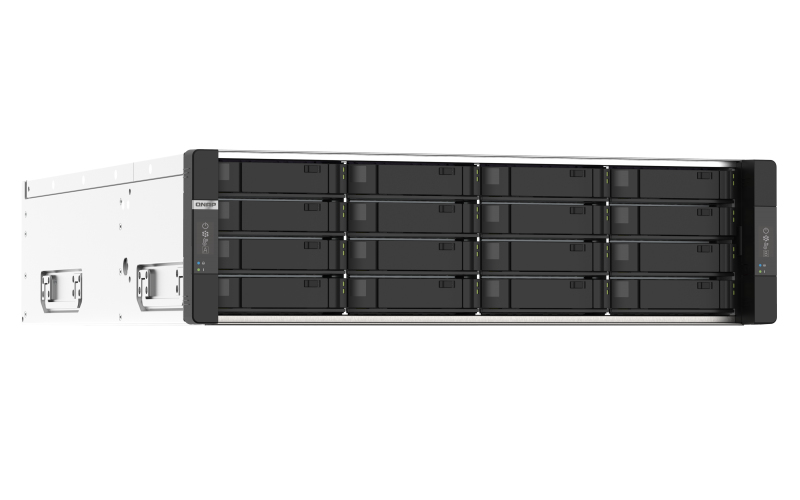

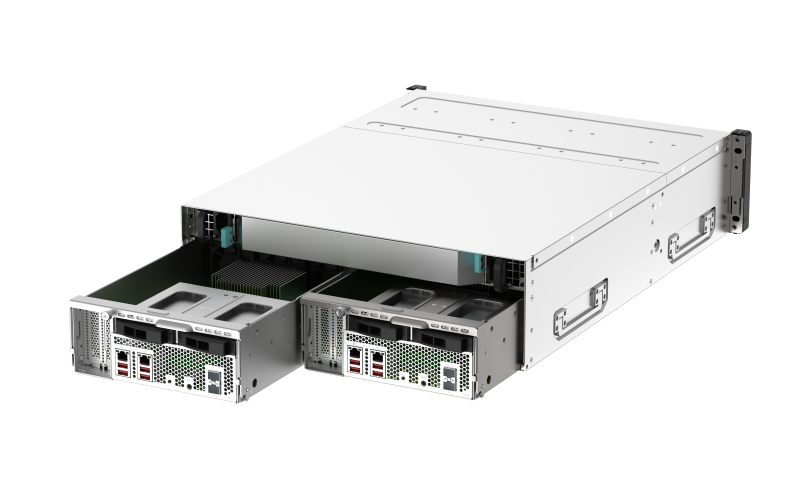

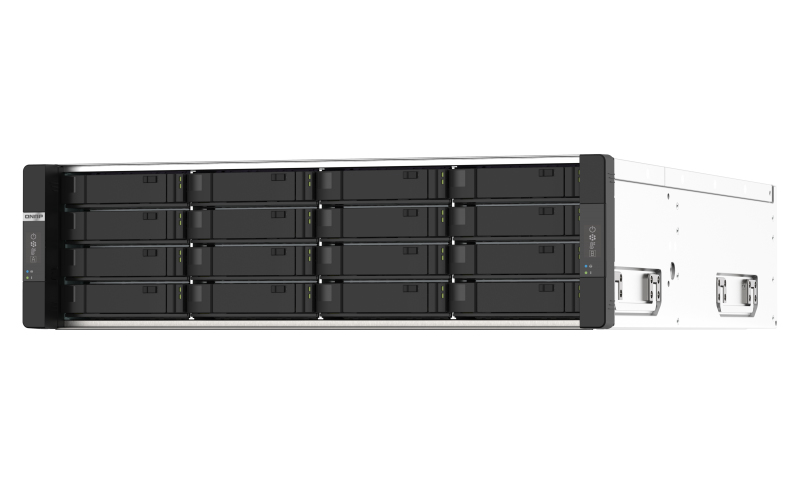

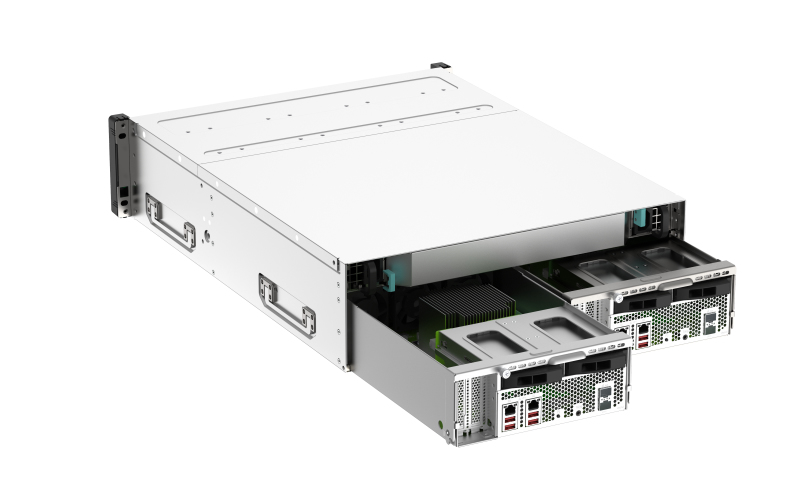

QNAP GM-1002 NAS/storage server Rack (3U) Intel® Xeon® E-2236
QNAP

GM-1002 NAS/storage server Rack (3U) Intel® Xeon® E-2236

16 GB DDR4 0 TB QuTS hero Black

Model GM-1002EAN 4713213518199

123 specifications
  • ProcessorIntel® Xeon®
  • Memory16 GB
  • Noise45.6 dB
  • TypeNAS
  • OSQuTS hero
  • Weight25.2 kg
See all specifications

Overview

Processor
Intel® Xeon®
Memory
16 GB
Noise
45.6 dB
Type
NAS
OS
QuTS hero
Weight
25.2 kg
Brand
QNAP
Model
GM-1002
Part number
GM-1002
EAN / UPC
4713213518199
Also known as
QNAP GM-1002 NAS/storage server Rack (3U) Intel® Xeon® E-2236 16 GB DDR4 0 TB QuTS hero Black

Specifications

123 specifications in 15 groups

Storage

Storage drives installedNo
Total installed storage capacity0 TB
Number of storage drives installed0
Installed storage drive typeNo
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, Serial ATA III
Storage drive sizes supported2.5,3.5,M.2
Number of M.2 (M & B) slots2
RAID supportYes
RAID levels0, 1, 5, 6, 10, 50, 60, JBOD
Online RAID expansionYes
RAID rebuildYes

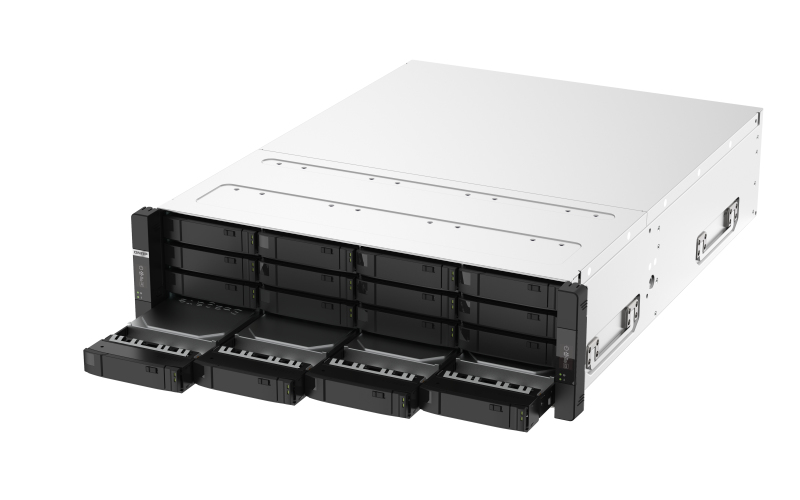

Hot-swap drive baysYes
Supported file systemsFAT32, HFS+, NTFS, exFAT, ext3, ext4
Disk roamingYes

Processor

Processor manufacturerIntel
Processor familyIntel® Xeon®
Processor modelE-2236
Processor frequency3.4 GHz
Processor boost frequency4.8 GHz
Processor cores6
Processor threads12
Processor cache12 MB
CPU configuration (max)1
PCI Express configurations1x16, 2x8, 1x8+2x4
PCI Express slots version3.0
Processor codenameCoffee Lake
Processor lithography14 nm
Processor operating modes64-bit
Processor package size37.5 x 37.5 mm
Processor socketLGA 1151 (Socket H4)
Scalability1S
Tcase73 °C
Thermal Design Power (TDP)80 W
Tjunction100 °C
On-board graphics card modelNot available
Maximum internal memory supported by processor128 GB

Memory

Internal memory16 GB
Internal memory typeDDR4
Maximum RAM supported128 GB
Memory form factorUDIMM
Memory slots4
Flash memory5000 MB

Network

Ethernet LANYes
Ethernet LAN data rates100,1000,2500 Mbit/s
DHCP serverYes
Jumbo frames supportYes
Wake-on-LAN readyYes
Dynamic DNS (DDNS)Yes

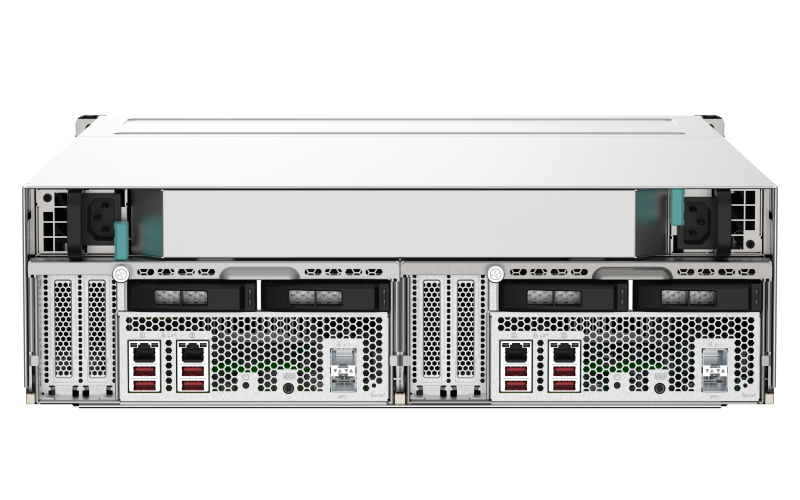

Ports & interfaces

Ethernet LAN (RJ-45) ports4
USB portYes
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity8
Fiber ports quantity2
Fiber optic connectorSFP+
PCI Express x4 (Gen 3.x) slots2
PCI Express x8 (Gen 3.x) slots2

Design

Chassis typeRack (3U)
Cooling typeActive
Product colourBlack
Number of fans3 fan(s)
Fan diameter6 cm
LED indicatorsHDD, Power, SSD, Status, Temperature

Performance

TypeNAS
Backup functionYes
BuzzerYes
Number of users16000 user(s)
Noise level45.6 dB
SnapshotYes
Web-based managementYes
Browser supportedApple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox
On/off switchYes
Reset buttonYes
S.M.A.R.T. supportYes

Software

Operating system installedQuTS hero
Operating system version5.0.0
Windows operating systems supportedWindows 10, Windows 7, Windows 8
Linux operating systems supportedYes
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur
Server operating systems supportedWindows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Power

Power supply unit (PSU) capacity770 W
Number of power supply units2
Power consumption (typical)201.07 W
Power consumption (sleep)169.68 W
AC input voltage100 - 240 V
Fan voltage12 V

Weight & dimensions

Width481.7 mm
Depth623.4 mm
Height132.1 mm
Weight25.2 kg
Package weight34.5 kg

Packaging content

External power adapterYes
Cables includedAC, LAN (RJ-45)
Number of screws68

Processor special features

Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyNo
Intel TSX-NIYes
Intel Trusted Execution TechnologyYes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Clear Video HD Technology (Intel® CVT HD)No
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® InTru™ 3D TechnologyNo
Intel® OS GuardYes
Intel® Quick Sync Video TechnologyNo
Intel® Secure KeyYes
Intel® Turbo Boost Technology2.0
Maximum number of PCI Express lanes16
Thermal Monitoring TechnologiesYes
Memory types supported by processorDDR4-SDRAM

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Storage temperature (T-T)-20 - 70 °C

Logistics data

Harmonized System (HS) code84714100

Other features

Processor ARK ID191040
