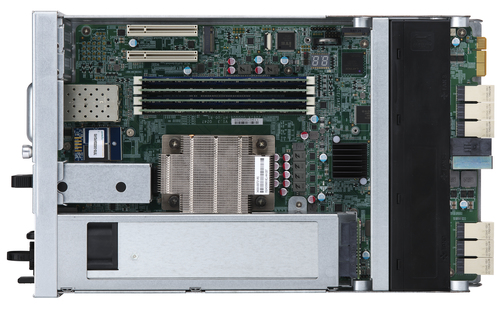

QNAP ES2486dc NAS Rack (2U) Intel® Xeon® D D-2142IT
QNAP

ES2486dc NAS Rack (2U) Intel® Xeon® D D-2142IT

96 GB DDR4 0 TB QNAP Enterprise System Black

Model ES2486dcPart no. ES2486DC-2142IT-128G/336TB-IWPEAN 4713213516508

142 specifications
  • ProcessorIntel® Xeon® D
  • Memory96 GB
  • Noise60.9 dB
  • TypeNAS
  • OSQNAP Enterprise System
  • Weight27.4 kg
See all specifications

Overview

Processor
Intel® Xeon® D
Memory
96 GB
Noise
60.9 dB
Type
NAS
OS
QNAP Enterprise System
Weight
27.4 kg
Brand
QNAP
Model
ES2486dc
Part numbers
ES2486DC-2142IT-128G/336TB-IWP, ES2486DC-2142IT-128G/384TB-EXOS, ES2486DC-2142IT-96G/336TB-EXOS, ES2486DC-2142IT-128G/384TB-IWP, ES2486DC-2142IT-96G/384TB-EXOS, ES2486DC-2142IT-96G/336TB-IWP +6 more
EAN / UPC
4713213516508, 885022018536, 4713213516515, 885022018529
Also known as
QNAP ES2486dc NAS Rack (2U) Intel® Xeon® D D-2142IT 96 GB DDR4 0 TB QNAP Enterprise System Black

Specifications

142 specifications in 15 groups

Storage

Storage drives installedNo
Total installed storage capacity0 TB
Number of storage drives installed0
Number of storage drives supported24
Installed storage drive typeNo
Supported storage drive typesHDD & SSD
Storage drive capacity0 GB
Supported storage drive interfacesSerial Attached SCSI (SAS)
Storage drive sizes supported2.5"
RAID supportYes
RAID levels0, 1, 5, 6, 10, 50, 60, JBOD
Online RAID migrationYes
Online RAID expansionYes
Hot-swap drive baysYes
Supported file systemsZFS
Bad block scanYes

Processor

Processor manufacturerIntel
Processor familyIntel® Xeon® D
Processor modelD-2142IT
Processor frequency1.9 GHz
Processor boost frequency3 GHz
Processor cores8
Processor threads16
Processor cache11 MB
Bus typeUPI
CPU configuration (max)1
PCI Express slots version3.0
Processor codeSR3ZZ
Processor codenameSkylake
Processor lithography14 nm
Processor operating modes64-bit
Processor socketBGA 2518
Scalability1S
SteppingM1
Thermal Design Power (TDP)65 W
Maximum internal memory supported by processor512 GB
Conflict-Free processorYes

Memory

Internal memory96 GB
Internal memory typeDDR4
Maximum RAM supported512 GB
Memory form factorRDIMM/LRDIMM
Memory slots8
Flash memory4000 MB

Network

Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Ethernet LAN data rate supported (max)10000 Mbit/s
Jumbo frames supportYes
iSCSI supportYes
Wake-on-LAN readyYes
Link aggregationYes
Load balancing systemYes
Supported network protocolsCIFS/SMB2/SMB3, NFS v3/NFS v4, FTP, FTPS, TFTP, HTTP, HTTPS, SSH, iSCSI, SNMP, SMTP, SMSC

Ports & interfaces

Ethernet LAN (RJ-45) ports6
USB portYes
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Fiber ports quantity8
Fiber optic connectorSFP+
PCI Express x8 (Gen 3.x) slots2

Design

Chassis typeRack (2U)
Cooling typeActive
Product colourBlack
Number of fans6 fan(s)
Fan diameter6 cm
LED indicatorsPower, Status, System
Built-in displayYes
Display typeLCD

Performance

TypeNAS
Device classSmall & Medium Business
Backup functionYes
Backup featuresCloud, USB drive, iSCSI LUN
BuzzerYes
Multilingual supportYes
Noise level60.9 dB
Third-party supportYes
SnapshotYes
Share folder access right managementYes
Access Control List (ACL)Yes
Browser supportedChrome, Firefox, Internet Explorer, Safari
Built-in FTP serverYes
Disk scanYes
Hot spareYes
On/off switchYes
Reset buttonYes
S.M.A.R.T. supportYes
Security algorithms256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS
Share folderCIFS/SMB, NFS, FTP
System logYes
USB copy functionYes

Software

Operating system installedQNAP Enterprise System
Operating system version2.1.1
Windows operating systems supportedWindows 10, Windows 10 x64, Windows 7, Windows 7 Starter x64, Windows 8, Windows 8 x64
Linux operating systems supportedYes
Mac operating systems supportedYes
Server operating systems supportedWindows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016

Power

Power supply locationBuilt-in
Power supply unit (PSU) capacity700 W
Number of power supply units2
Redundant power supply (RPS) supportYes
Power consumption (typical)579.59 W
AC input voltage90 - 264 V
Fan voltage12 V

Weight & dimensions

Width483 mm
Depth545.1 mm
Height88.3 mm
Weight27.4 kg
Package width585 mm
Package depth305 mm
Package height739 mm
Package weight27.4 kg

Packaging content

Cables includedAC, LAN (RJ-45)
Rack mount kitYes
Number of screws96
Package typeBox

Processor special features

Embedded options availableYes
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Enhanced Halt StateYes
Intel QuickAssist TechnologyNo
Intel Secure Key Technology version1.00
Intel TSX-NIYes
Intel TSX-NI version1.00
Intel Trusted Execution TechnologyYes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® OS GuardYes
Intel® Secure KeyYes
Intel® Turbo Boost Technology2.0
Maximum number of PCI Express lanes32
Thermal Monitoring TechnologiesYes
Memory types supported by processorDDR4-SDRAM

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)5 - 95%

Logistics data

Harmonized System (HS) code84714100

Other features

CertificationFCC Class A, CE Mark, EN60950, BSMI, VCCI, CB, LVD
Processor ARK ID136432
Warranty period5 year(s)
