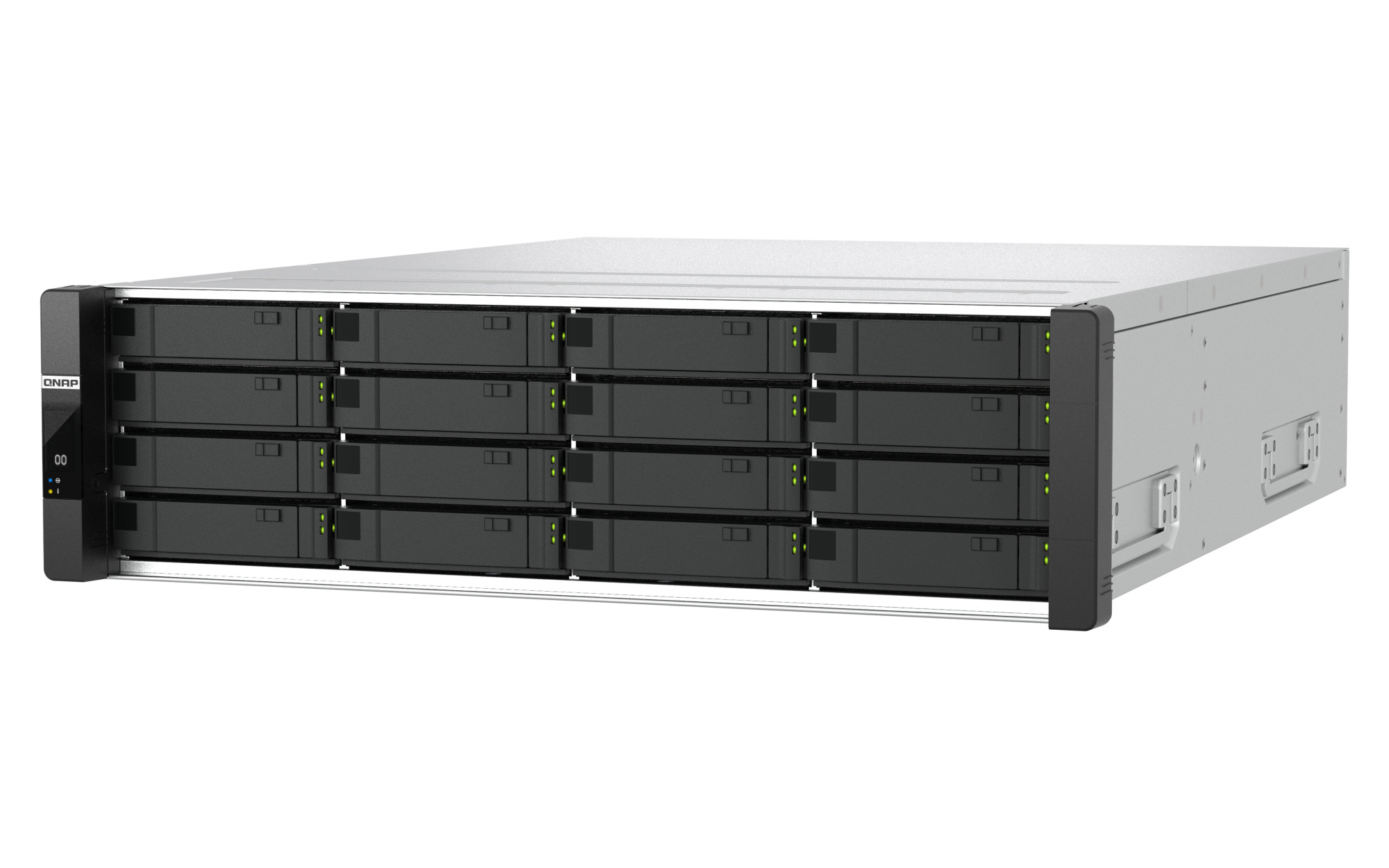

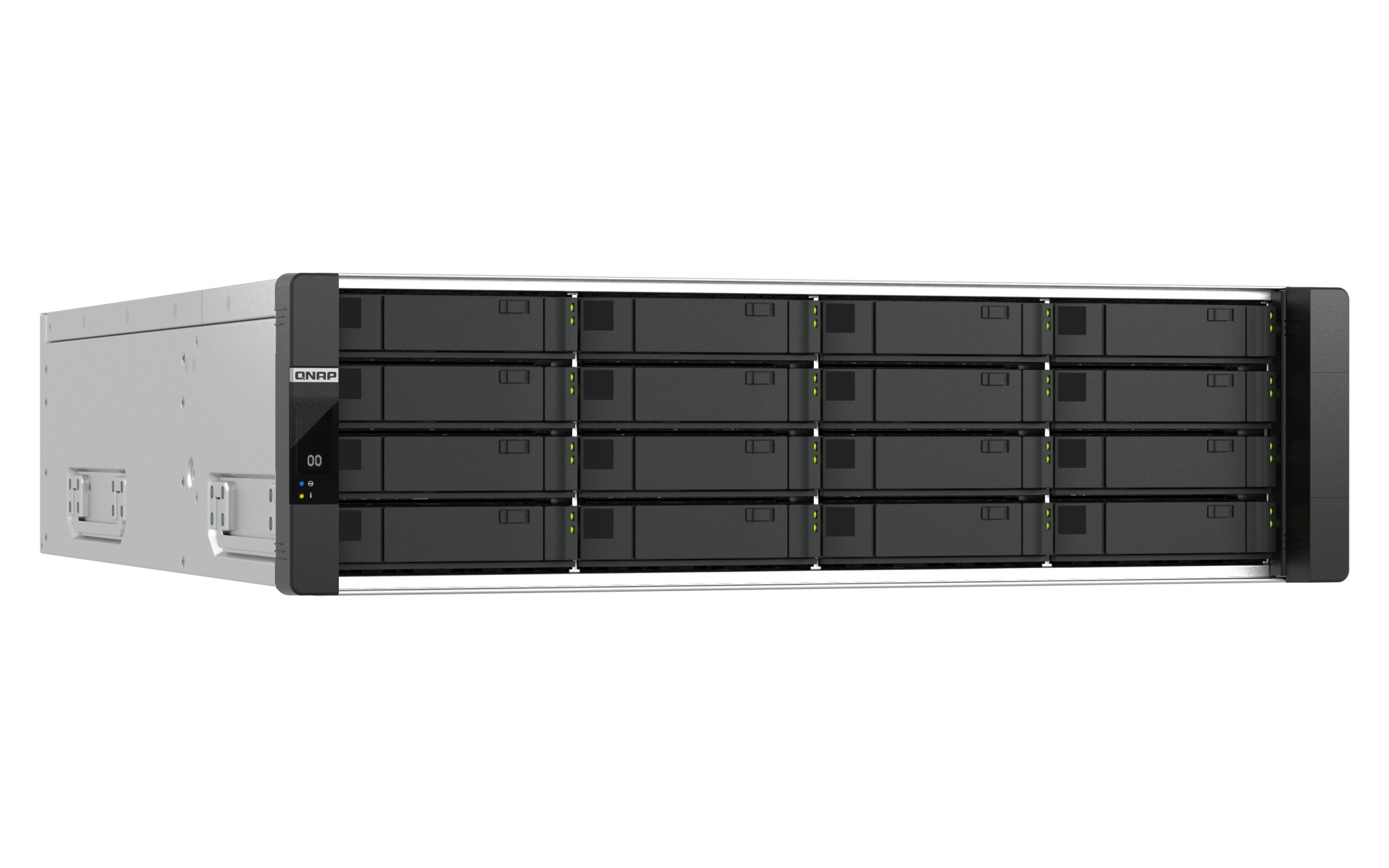

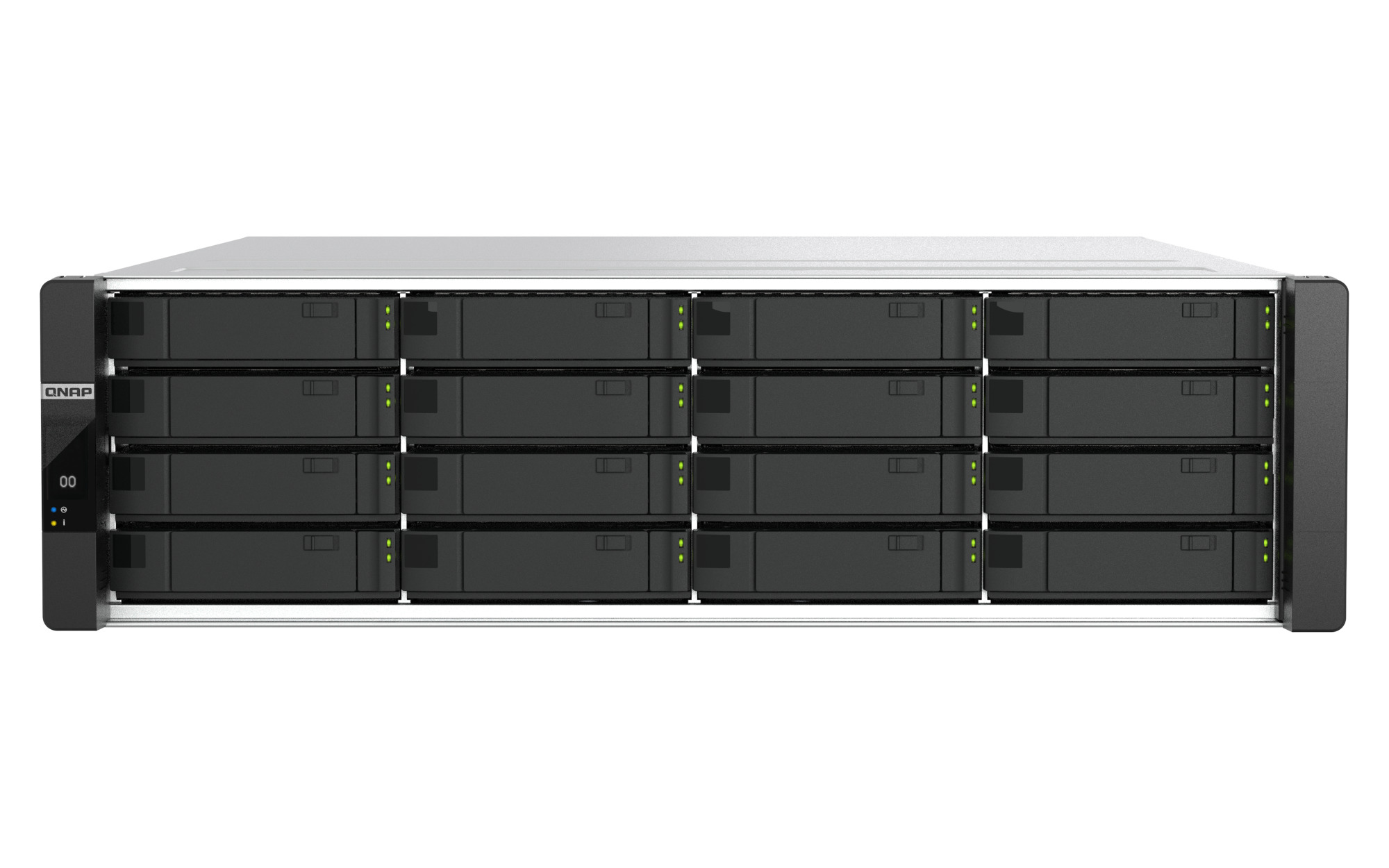

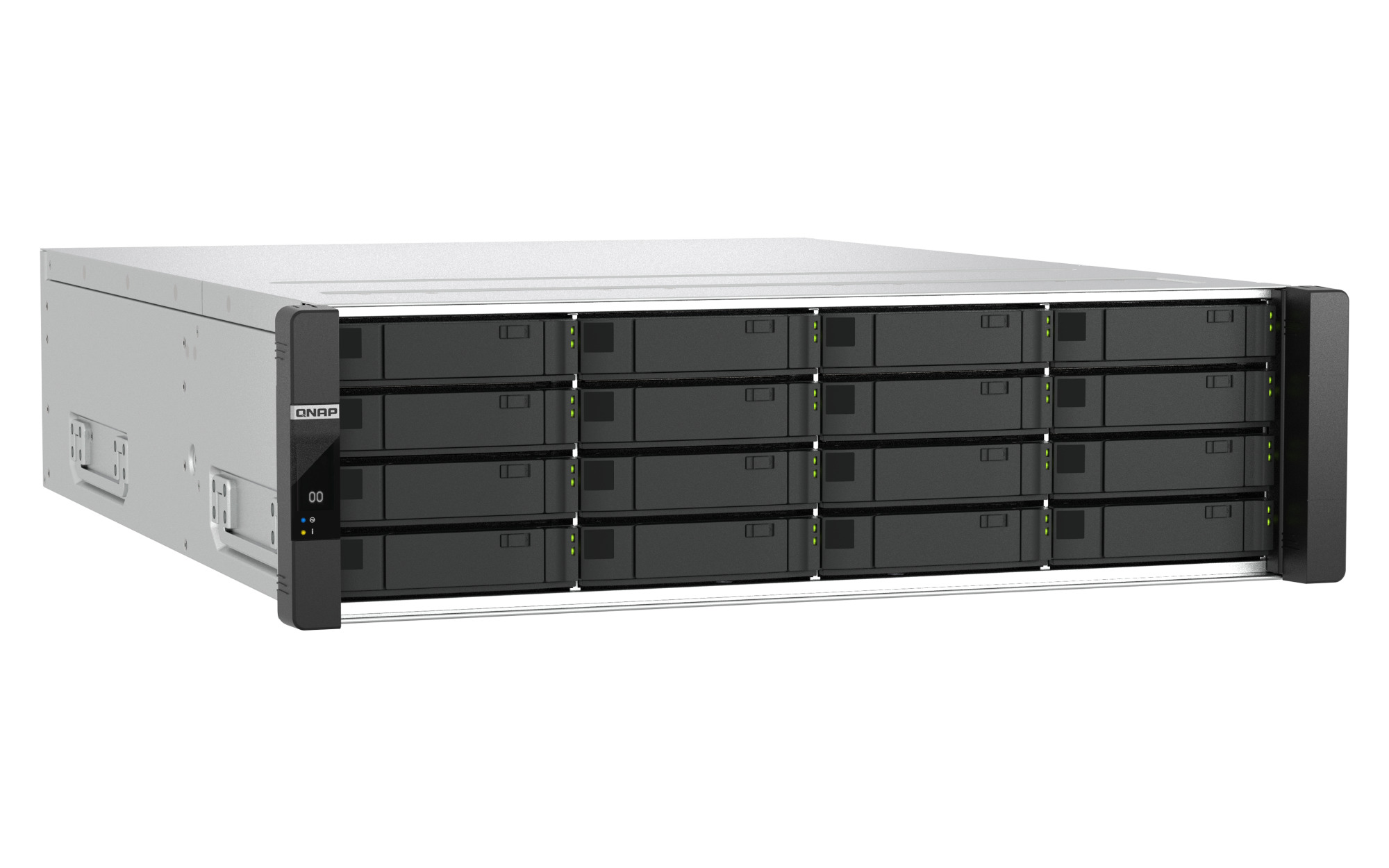

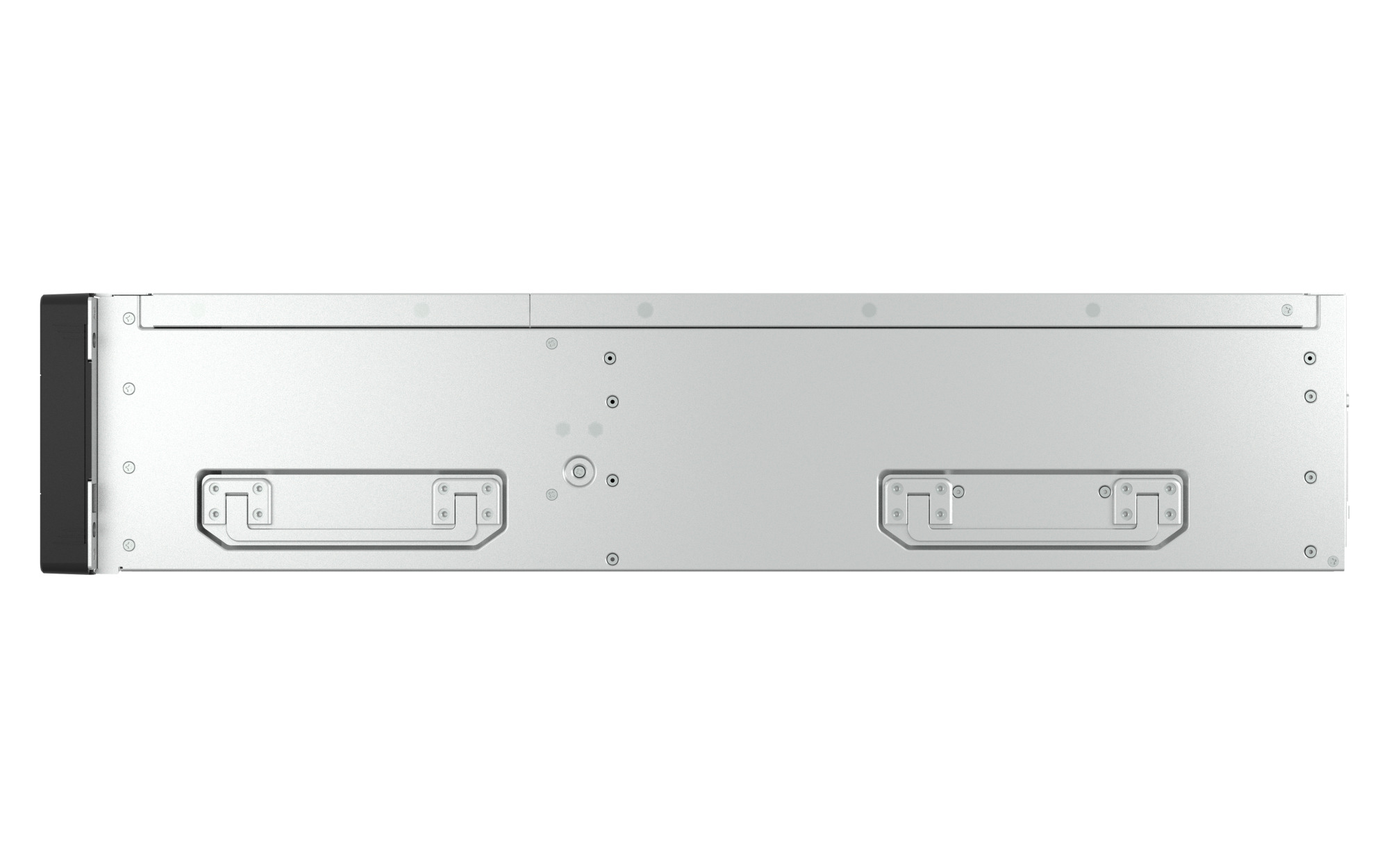

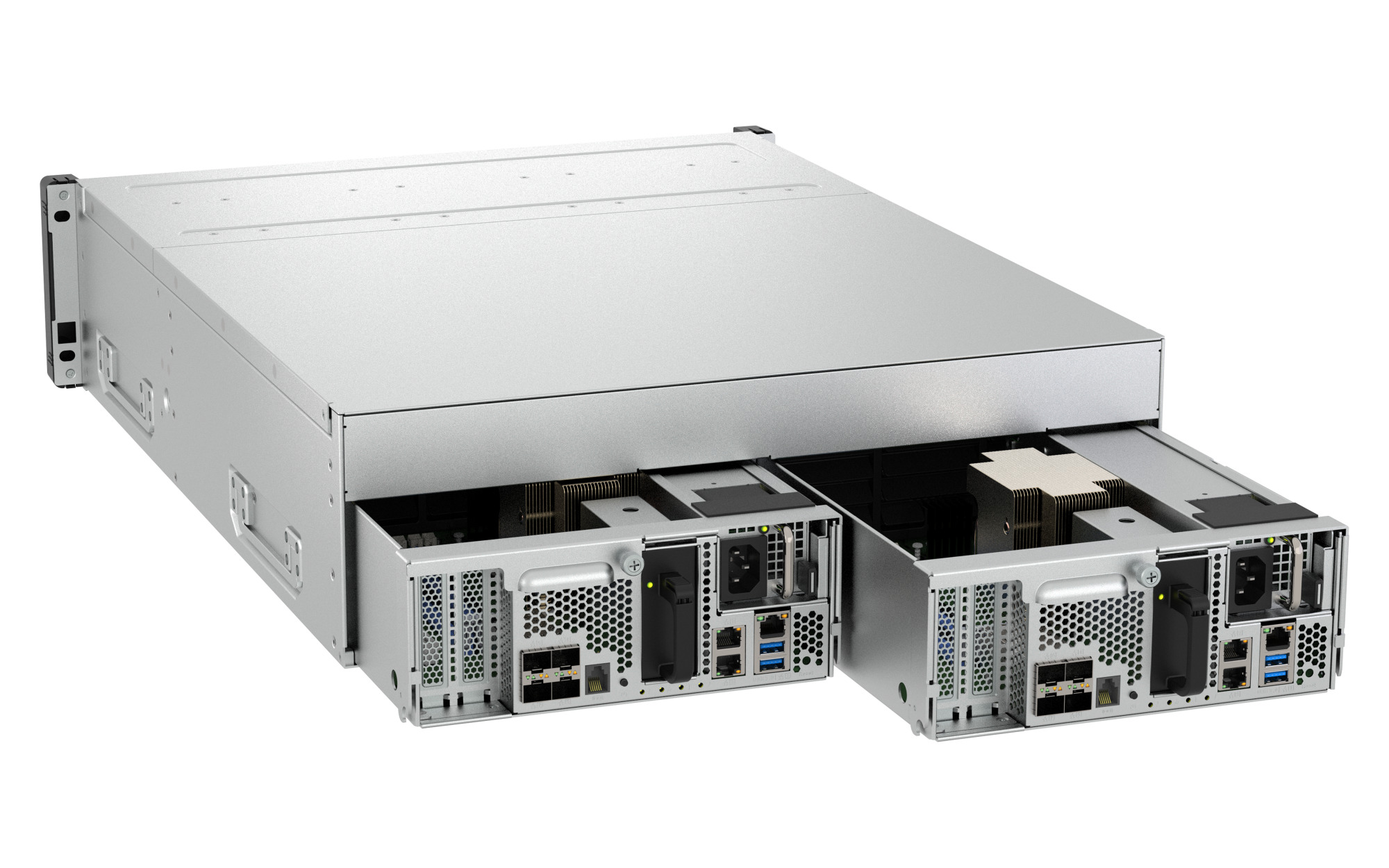

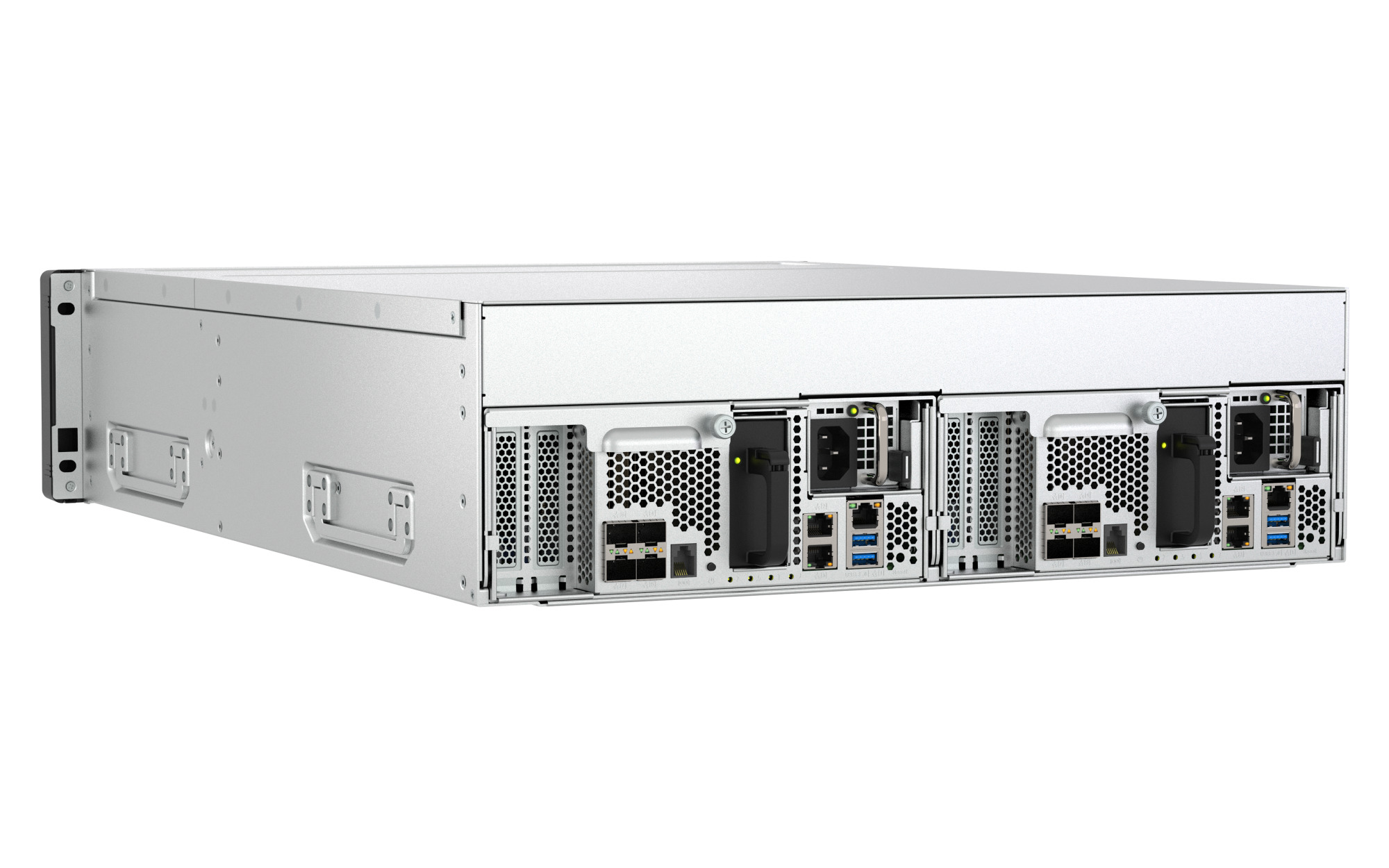

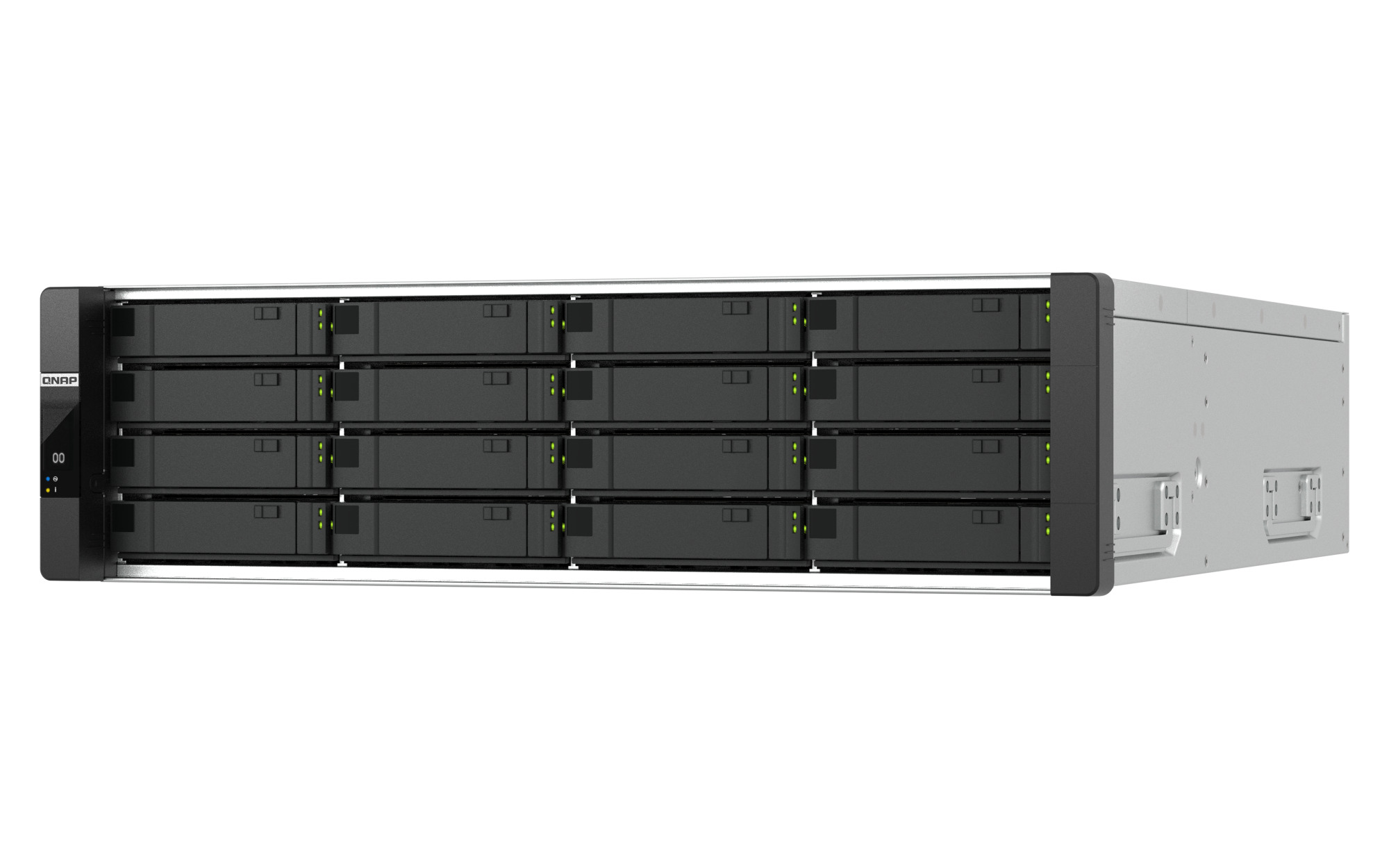

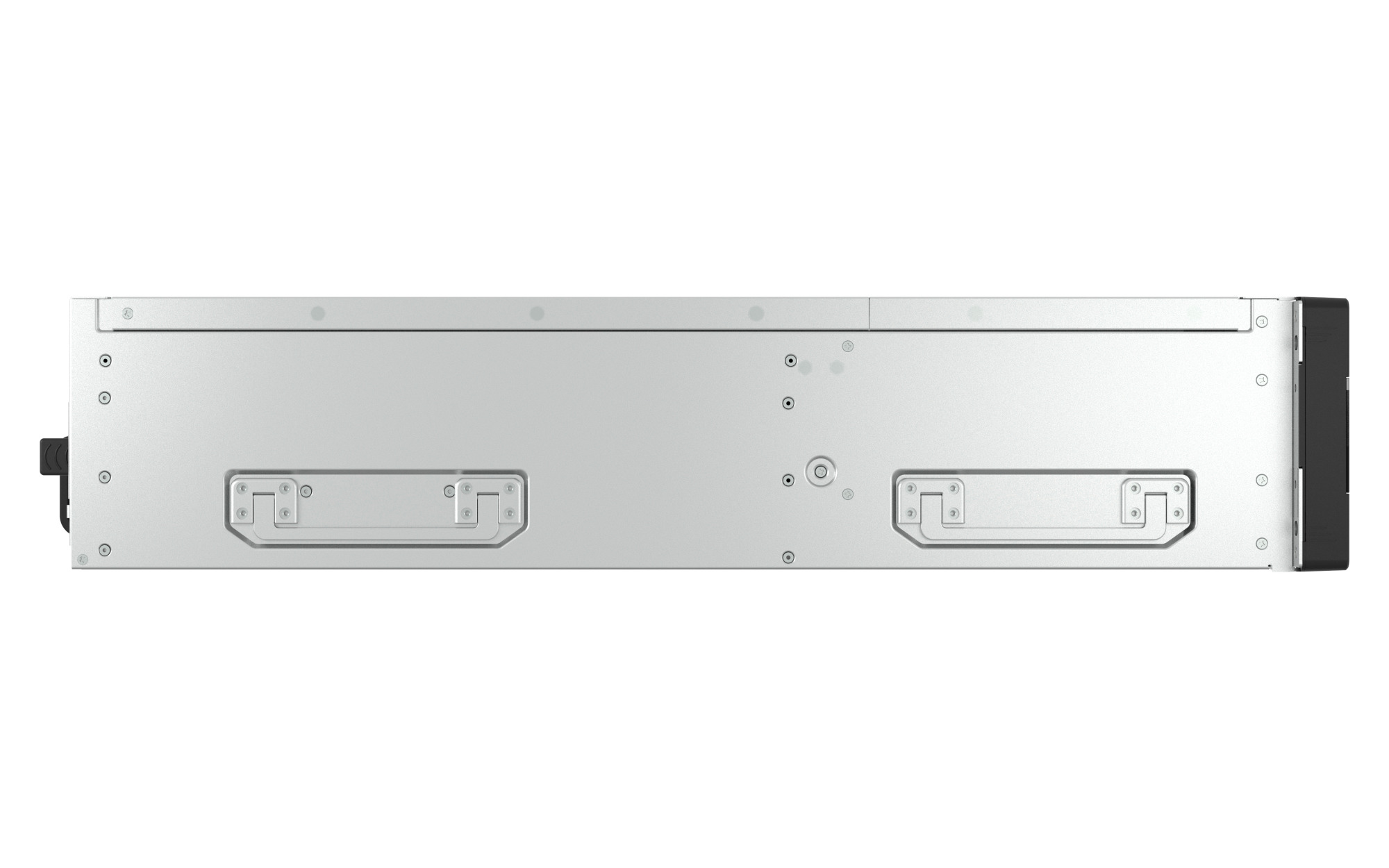

ES1686Adc NAS Rack (3U) Intel® Xeon® D D-2142IT
128 GB SSD QNAP QES
Model ES1686AdcPart no. ES1686ADC-2142IT-128GEAN 885022036509
82 specifications
- ProcessorIntel® Xeon® D
- Memory128 GB
- TypeNAS
- OSQNAP QES
- Weight23.8 kg
- Storage drives installedYes
Overview
- Processor
- Intel® Xeon® D
- Memory
- 128 GB
- Type
- NAS
- OS
- QNAP QES
- Weight
- 23.8 kg
- Storage drives installed
- Yes
- Brand
- QNAP
- Category
- NAS & Storage Servers
- Model
- ES1686Adc
- Part number
- ES1686ADC-2142IT-128G
- EAN / UPC
- 885022036509, 4711103094198
- Also known as
- QNAP ES1686Adc NAS Rack (3U) Intel® Xeon® D D-2142IT 128 GB SSD QNAP QES
Specifications
82 specifications in 13 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Number of storage drives supported | 16 |
| Installed storage drive type | SSD |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | Serial Attached SCSI (SAS), Serial ATA, U.2 |
| Storage drive sizes supported | 2.5,3.5,U.2 |
| Number of M.2 (M & B) slots | 2 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Hot-swap drive bays | Yes |
| Supported file systems | ZFS |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® D |
| Processor model | D-2142IT |
| Processor frequency | 1.9 GHz |
| Processor boost frequency | 3 GHz |
| Processor cores | 8 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 128 GB |
| Maximum RAM supported | 1 TB |
| Memory form factor | RDIMM/LRDIMM |
| Memory slots | 16 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10000 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| Link aggregation | Yes |
| Supported network protocols | CIFS/SMB2/SMB3, NFS v3/NFS v4.1, FTP, FTPS, TFTP, HTTP, HTTPS, SSH, iSCSI, Fibre Channel, SNMP, SMTP, and SMSC |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 6 |
| USB port | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (3U) |
| Cooling type | Active |
| Number of fans | 3 fan(s) |
| Fan diameter | 6 cm |
| LED indicators | Power, Status |
| Built-in display | Yes |
| Display type | LCD |
Performance
| Specification | Value |
|---|---|
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Buzzer | Yes |
| Multilingual support | Yes |
| Third-party support | Yes |
| Snapshot | Yes |
| Management protocols | SNMP V1, V2, V3 |
| Share folder access right management | Yes |
| Access Control List (ACL) | Yes |
| Built-in FTP server | Yes |
| Hot spare | Yes |
| On/off switch | Yes |
| Reset button | Yes |
| S.M.A.R.T. support | Yes |
| Security algorithms | FIPS 140-2, 256-bit AES |
| Share folder | Thick, Thin |
| System log | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | QNAP QES |
| Operating system version | 2.2.1 |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | Linux |
Power
| Specification | Value |
|---|---|
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 700 W |
| Number of power supply units | 2 |
| Redundant power supply (RPS) support | Yes |
| Power consumption (typical) | 588.33 W |
| AC input voltage | 90-264 V |
| Fan voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 446.2 mm |
| Depth | 587.8 mm |
| Height | 132 mm |
| Weight | 23.8 kg |
| Package weight | 34.6 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 587 mm |
| Master (outer) case length | 750 mm |
| Master (outer) case height | 351 mm |
| Master (outer) case gross weight | 32.7 kg |
| Products per master (outer) case | 1 pc(s) |
Other features
| Specification | Value |
|---|---|
| Warranty period | 5 year(s) |
