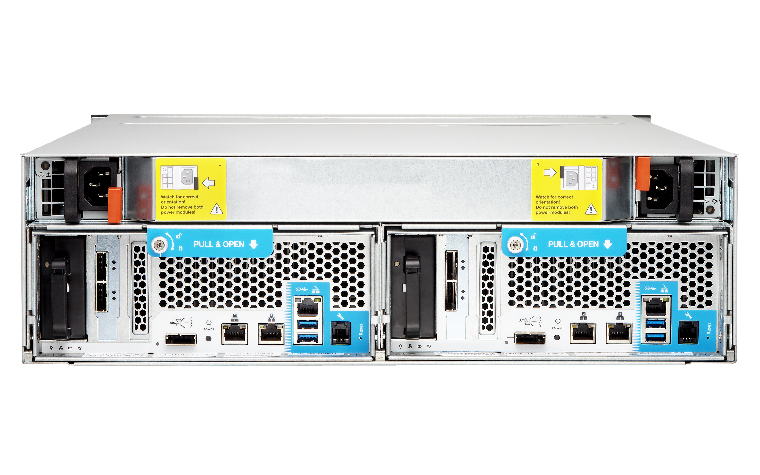

QNAP ES1640dc NAS Rack (3U) Intel® Xeon® E5 V2 Family E5-2420V2

32 GB DDR3 0 TB QNAP Enterprise System Black

Model ES1640dcPart no. ES1640DC-E5-V2-96G-USEAN 4713213510544

137 specifications

Overview

Brand: QNAP
Category: NAS & Storage Servers
Model: ES1640dc
Part numbers: ES1640DC-E5-V2-96G-US, ES1640DC-E5-96G, ES1640DC, ES1640DC-V2-E5-96G
EAN / UPC: 4713213510544, 5050914936266, 885022012466, 4058154238127
Also known as: QNAP ES1640dc NAS Rack (3U) Intel® Xeon® E5 V2 Family E5-2420V2 32 GB DDR3 0 TB QNAP Enterprise System Black

137 specifications in 13 groups

Specification	Value
Storage drives installed	No
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	16
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Storage drive interface	Serial Attached SCSI (SAS)
Storage drive size	2.5/3.5"
Maximum supported storage capacity	128 TB
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, 50, 60, JBOD

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 V2 Family
Processor model	E5-2420V2
Processor frequency	2.2 GHz
Processor boost frequency	2.7 GHz
Processor cores	6
Processor threads	12
Processor cache	15 MB
L3 cache	15 MB
Bus type	QPI
CPU configuration (max)	2
ECC supported by processor	Yes
PCI Express slots version	3.0
Physical Address Extension (PAE)	46 bit
Processor cache type	Smart Cache
Processor code	SR1AJ
Processor codename	Ivy Bridge EN
Processor lithography	22 nm
Processor operating modes	64-bit
Processor package size	45 x 42.5 mm
Processor socket	LGA 1356 (Socket B2)
Scalability	2S
Stepping	S1
System bus rate	7.2 GT/s
Tcase	76 °C
Thermal Design Power (TDP)	80 W
Maximum internal memory supported by processor	384 GB
Memory bandwidth supported by processor (max)	38.4 GB/s
Conflict-Free processor	No

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,10000 Mbit/s
Wi-Fi	No
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Link aggregation	Yes
Supported network protocols	CIFS, SMB2, SMB3, NFS v3, NFS v4, FTP, FTPS, TFTP, HTTP, HTTPS, SSH, iSCSI, SNMP, SMTP, SMSC

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Fiber ports quantity	0
Serial ports quantity	2
External mini-SAS ports	2

Specification	Value
Type	NAS
Device class	Large Enterprise Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Noise level	66.1 dB
Share folder access right management	Yes
Web-based management	Yes
Access Control List (ACL)	Yes
Browser supported	Microsoft Internet Explorer 10+, Mozilla Firefox 8+, Apple Safari 4+, Google Chrome
Built-in FTP server	Yes
Hot spare	Yes
On/off switch	Yes
Reset button	Yes
S.M.A.R.T. support	Yes
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS
Share folder	CIFS/SMB, NFS, FTP
System log	Yes

Specification	Value
Operating system installed	QNAP Enterprise System
Operating system version	1.1
Windows operating systems supported	Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 8 Enterprise, Windows 8 Enterprise x64
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	770 W
Number of power supply units	1
Redundant power supply (RPS) support	Yes
Power consumption (typical)	504.4 W
Power consumption (sleep)	314.86 W
AC input voltage	100-240 V
Fan voltage	12 V

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Maximum number of PCI Express lanes	24
Number of QPI links	1
Physical Address Extension (PAE)	Yes
Thermal Monitoring Technologies	Yes
Memory channels supported by processor	Triple
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Power management	Yes
Processor ARK ID	75784
