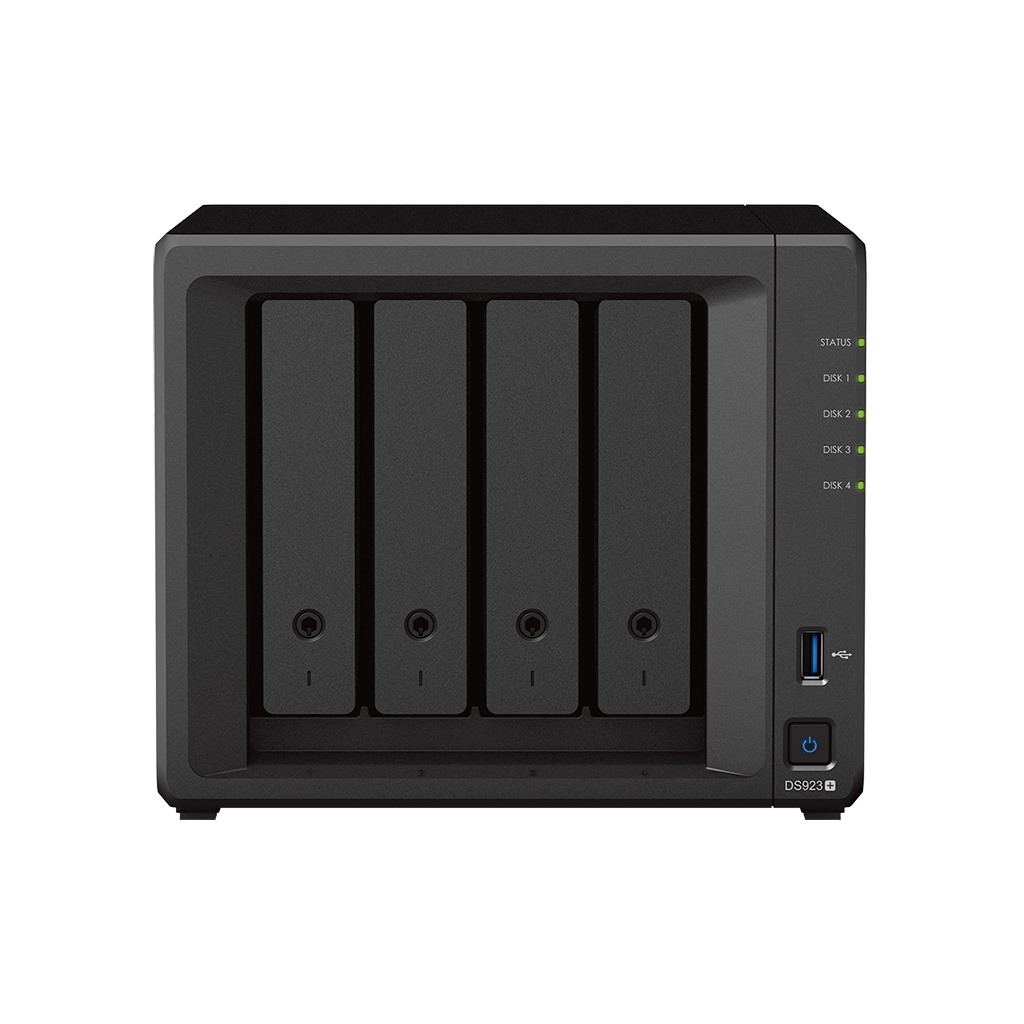

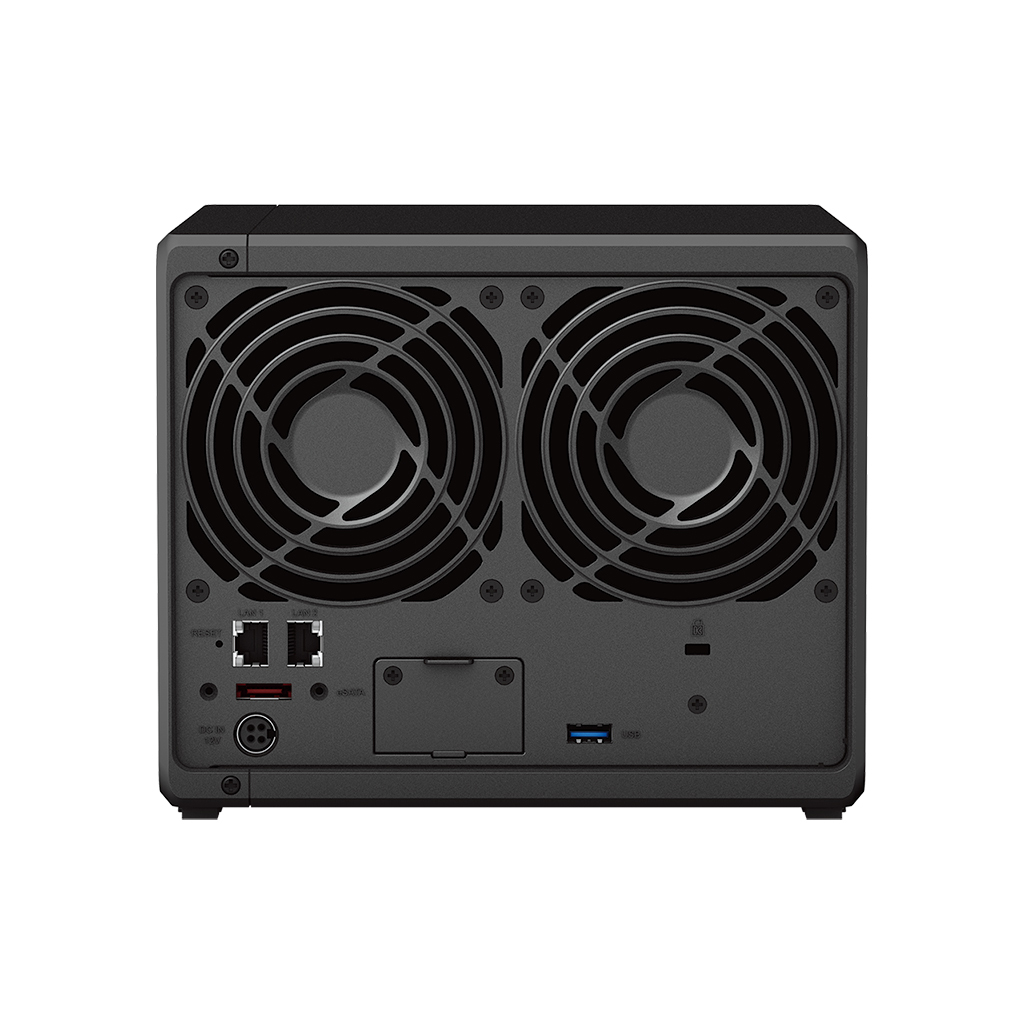

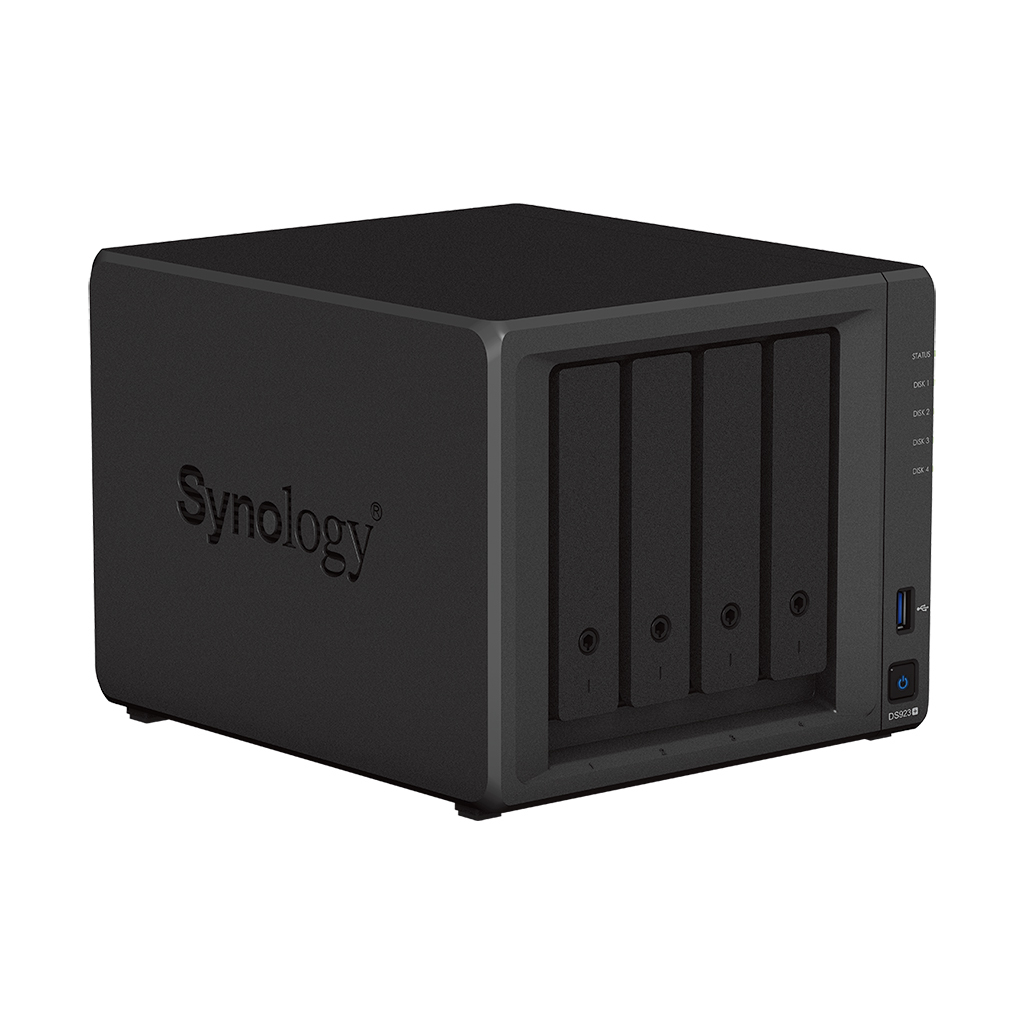

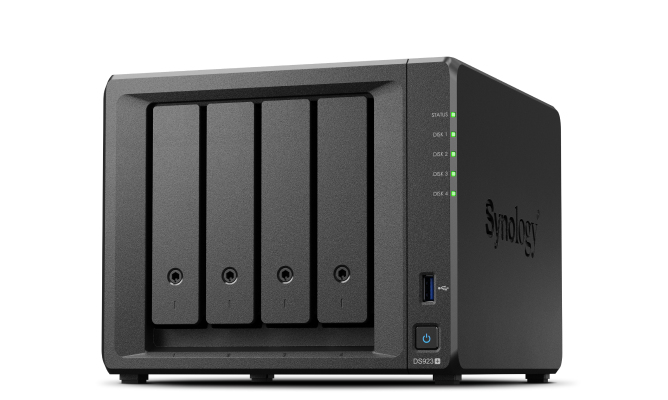

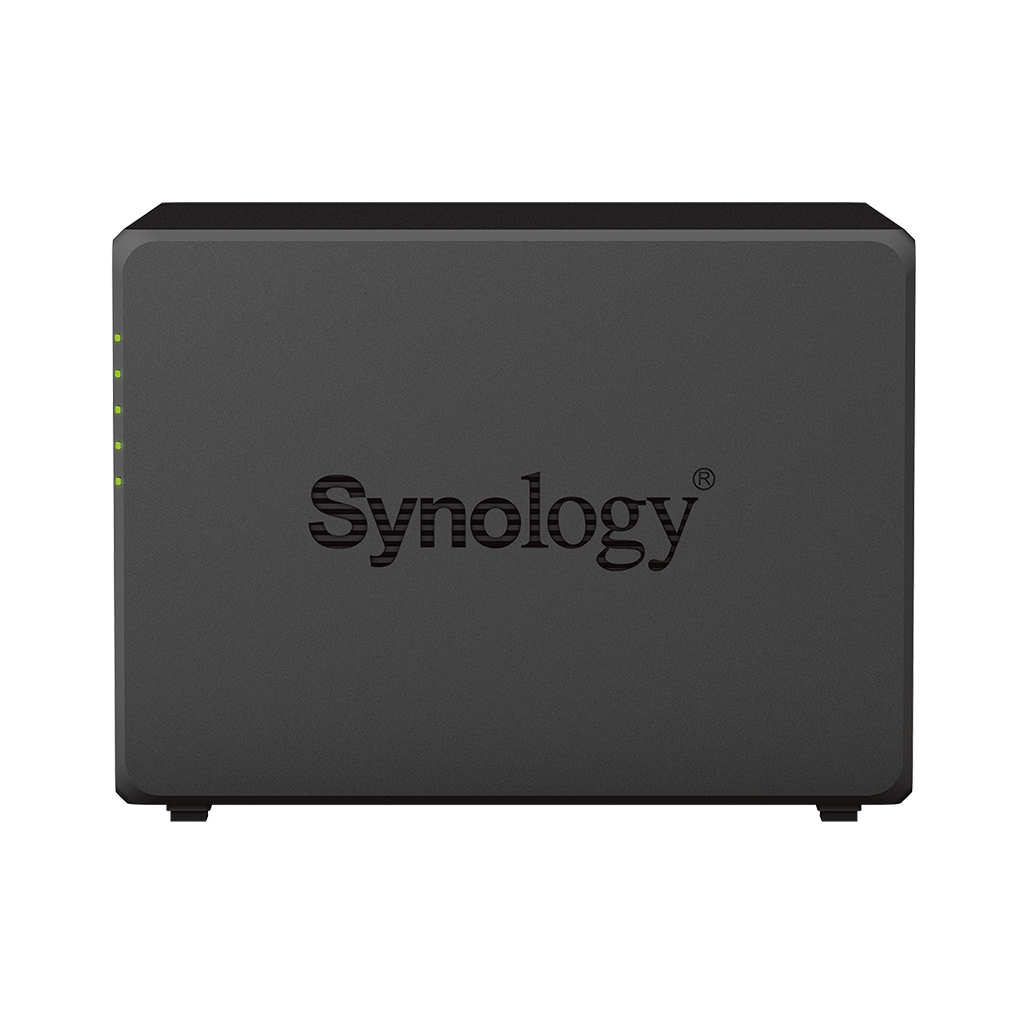

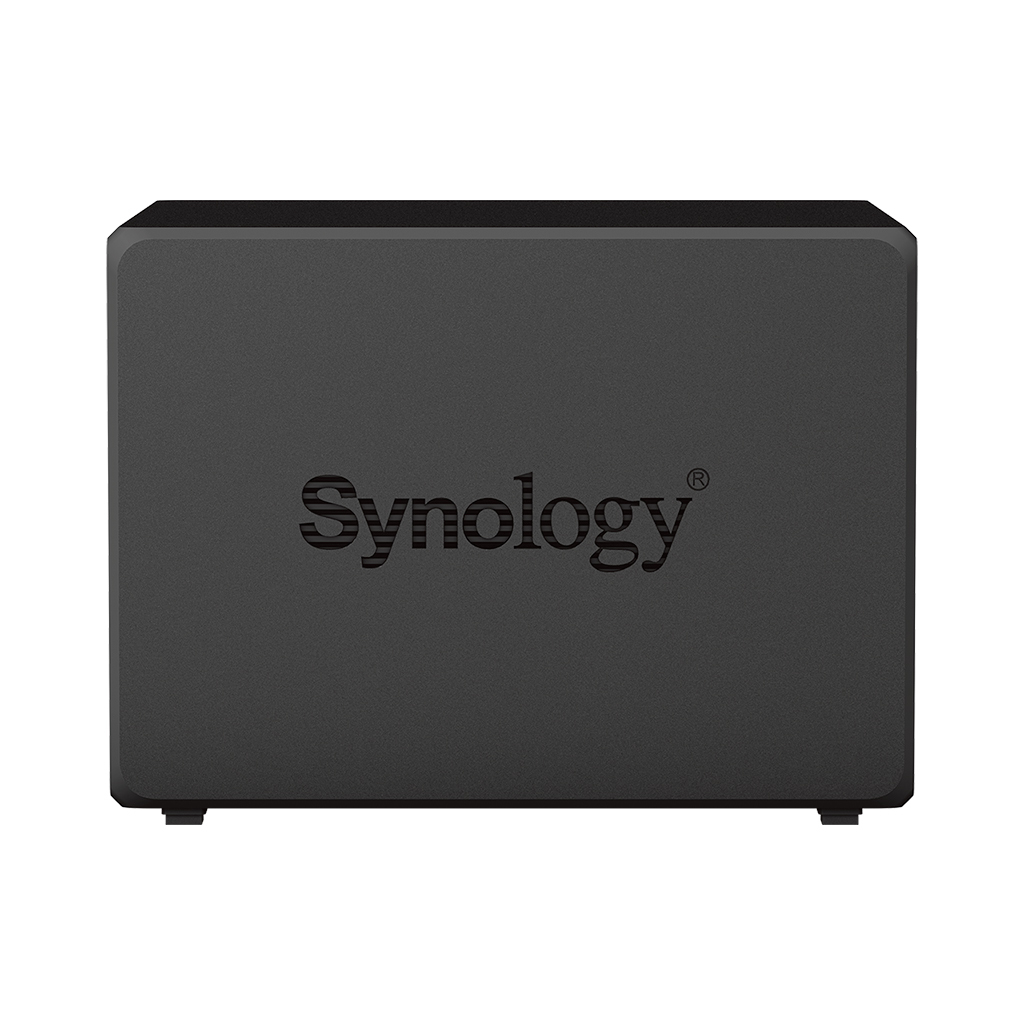

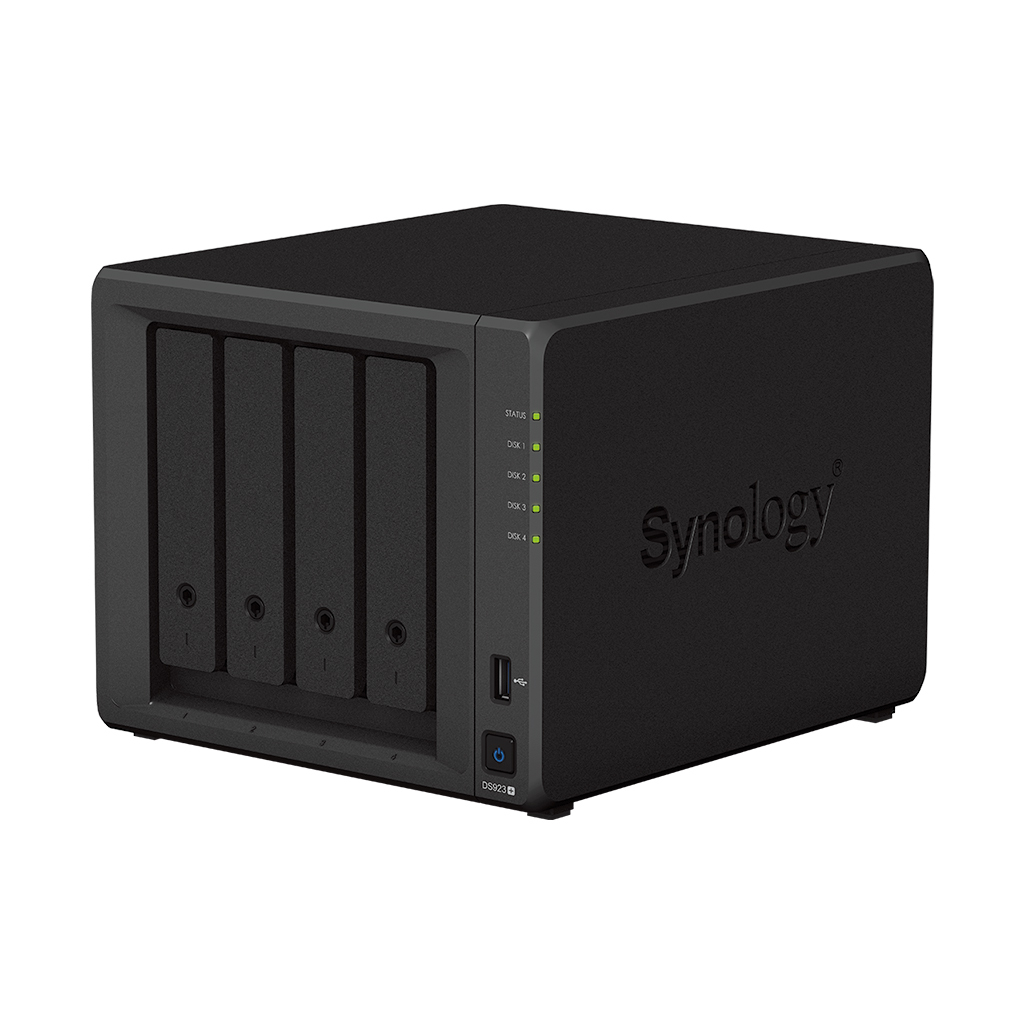

DS923+ NAS Tower Ryzen Embedded R1600
4 GB DDR4L 32 TB HDD DiskStation Manager Black
Model DS923+Part no. DS923+/32TB-REDPLUSEAN 5050914221157
90 specifications
- ProcessorRyzen Embedded
- Memory4 GB
- Noise22.9 dB
- TypeNAS
- OSDiskStation Manager
- Weight2.34 kg
Overview
- Processor
- Ryzen Embedded
- Memory
- 4 GB
- Noise
- 22.9 dB
- Type
- NAS
- OS
- DiskStation Manager
- Weight
- 2.34 kg
- Brand
- QNAP
- Category
- NAS & Storage Servers
- Model
- DS923+
- Part numbers
- DS923+/32TB-REDPLUS, DS923+/32TB-HAT53, DS923+/48TB-HAT53, DS923+/72TB-HAT53, DS923+/64TB-HAT53, DS923+/16TB-HAT53 +10 more
- EAN / UPC
- 5050914221157, 5050914215798, 5050914215804, 5050914215828 +12 more
- Also known as
- QNAP DS923+ NAS Tower Ryzen Embedded R1600 4 GB DDR4L 32 TB HDD DiskStation Manager Black
Specifications
90 specifications in 14 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Total installed storage capacity | 32 TB |
| Number of storage drives installed | 4 |
| Number of storage drives supported | 4 |
| Installed storage drive type | HDD |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| Number of M.2 (M & B) slots | 2 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| Hot-swap drive bays | Yes |
| Supported file systems | BTRFS, Fat, HFS+, NTFS, ext3, ext4 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | Ryzen Embedded |
| Processor generation | AMD Ryzen Embedded R1000 Series |
| Processor model | R1600 |
| Processor frequency | 2.6 GHz |
| Processor boost frequency | 3.1 GHz |
| Processor cores | 2 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR4L |
| Maximum RAM supported | 32 GB |
| ECC | Yes |
| Memory slots | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| iSCSI support | Yes |
| Wake-on-LAN ready | Yes |
| Link aggregation | Yes |
| Supported network protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| eSATA ports quantity | 1 |
| PCI Express x2 (Gen 3.x) slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Fan diameter | 9.2 cm |
| Drive bay locking | Yes |
| LED indicators | Yes |
| Built-in display | No |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Built-in speaker(s) | No |
Performance
| Specification | Value |
|---|---|
| Type | NAS |
| Device class | Home & Home Office |
| Backup function | Yes |
| Backup features | Cloud, iSCSI LUN |
| Multilingual support | Yes |
| Noise level | 22.9 dB |
| Card reader integrated | No |
| Management protocols | SNMP |
| Access Control List (ACL) | Yes |
| Browser supported | Google Chrome, Firefox, Microsoft Edge, Safari |
| Built-in FTP server | Yes |
| Built-in UPnP AV media server | Yes |
| Hot spare | Yes |
| On/off switch | Yes |
| Reset button | Yes |
| Security algorithms | AES |
Software
| Specification | Value |
|---|---|
| Operating system installed | DiskStation Manager |
| Operating system version | 7.1.1 |
| Server operating systems supported | Windows Server 2016, Windows Server 2019 |
Power
| Specification | Value |
|---|---|
| Power supply location | External |
| Power supply unit (PSU) capacity | 100 W |
| Number of power supply units | 1 |
| Redundant power supply (RPS) support | No |
| Power consumption (typical) | 35.51 W |
| Power consumption (HDD standby) | 11.52 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 / 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 199 mm |
| Depth | 223 mm |
| Height | 166 mm |
| Weight | 2.34 kg |
Packaging content
| Specification | Value |
|---|---|
| External power adapter | Yes |
| Cables included | AC, LAN (RJ-45) |
| Power cables quantity | 1 |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Certification | FCC BSMI VCCI RCM UKCA EAC CCC KC |
