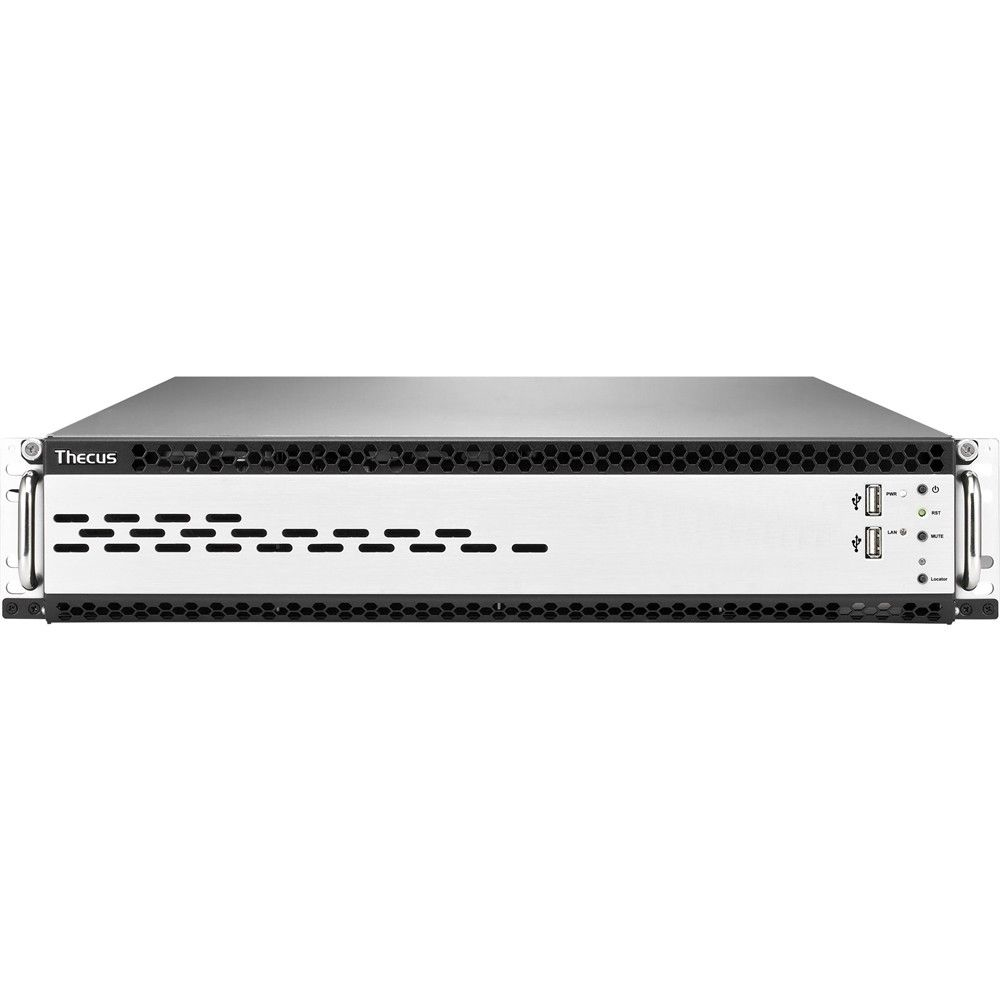

Origin Storage Thecus W12850 12 Bay Windows NAS Including

5 X 8TB NAS 3.5” drives

Model W12850/40TBEAN 5056006157519

100 specifications

Overview

Brand: Origin Storage
Category: NAS & Storage Servers
Model: W12850/40TB
Part number: W12850/40TB
EAN / UPC: 5056006157519
Also known as: Origin Storage Thecus W12850 12 Bay Windows NAS Including 5 X 8TB NAS 3.5” drives

100 specifications in 11 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	40 TB
Number of storage drives installed	5
Number of storage drives supported	12
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Storage drive capacity	1.2 TB
Storage drive interface	Serial ATA III
Supported storage drive interfaces	Serial ATA III
Storage drive size	3.5"
Storage drive sizes supported	3.5"
RAID support	Yes
RAID levels	0, 1, 5, 6, JBOD
RAID rebuild	Yes
Hot-swap drive bays	Yes

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E3 V3 Family
Processor model	E3-1231V3
Processor frequency	3.4 GHz
Processor boost frequency	3.8 GHz
Processor cores	4
Processor threads	8
Processor cache	8 MB
Bus type	DMI2
CPU configuration (max)	1
ECC supported by processor	Yes
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Processor cache type	Smart Cache
Processor codename	Haswell
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Xeon E3-1200 v3
Processor socket	LGA 1150 (Socket H3)
Scalability	1S
Stepping	C0
System bus rate	5 GT/s
Thermal Design Power (TDP)	80 W
On-board graphics card model	Not available
Maximum internal memory supported by processor	32 GB
Memory bandwidth supported by processor (max)	25.6 GB/s
Conflict-Free processor	No

Specification	Value
Internal memory	16 GB
Internal memory type	DDR3

Specification	Value
Ethernet LAN	Yes
Wi-Fi	Yes

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Fiber ports quantity	0

Specification	Value
Operating system installed	Windows Storage Server 2016

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Enhanced Halt State	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel I/O Acceleration Technology	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Maximum number of PCI Express lanes	16
Number of QPI links	0
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2013D
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Compliance certificates	RoHS
Processor ARK ID	80910
