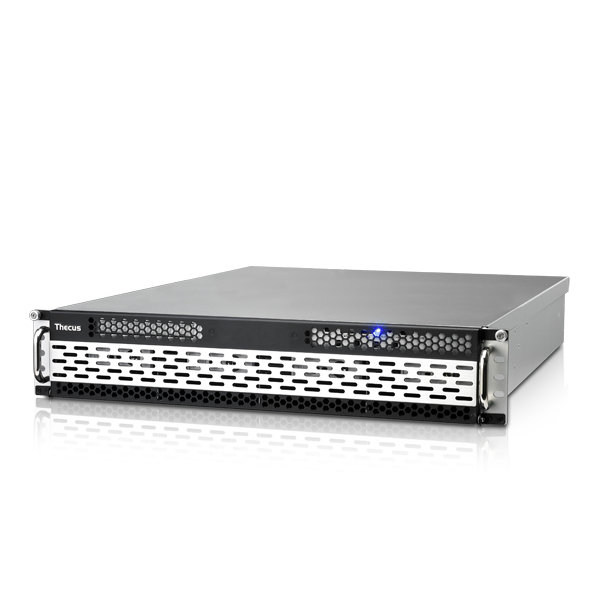

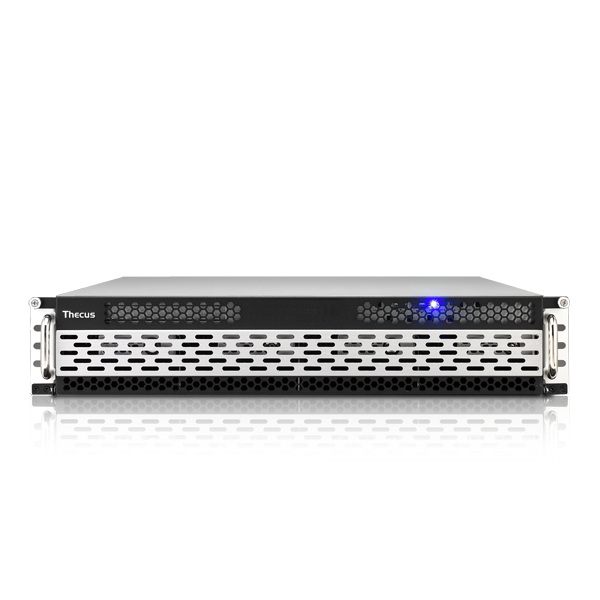

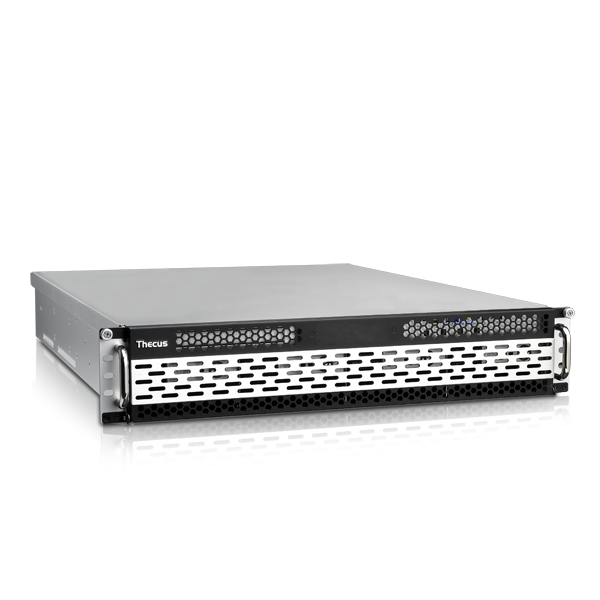

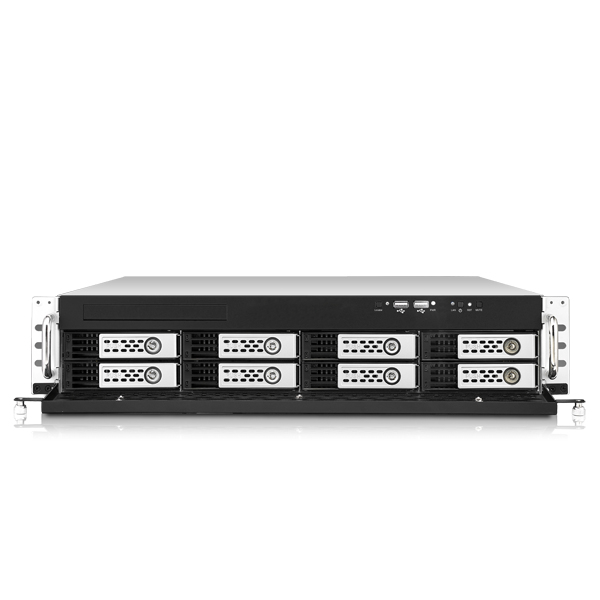

Origin Storage Thecus W8900

Model Thecus W8900Part no. W8900/24TBNLEAN 5056006114697

97 specifications

Overview

Brand: Origin Storage
Category: NAS & Storage Servers
Model: Thecus W8900
Part numbers: W8900/24TBNL, W8900, W8900/8TBNLWD, W8900/8TBNL, W8900/64TBNL, W8900/48TBNLWD +12 more
EAN / UPC: 5056006114697, 884956003229, 5055146578277, 5056006114741 +15 more
Also known as: Origin Storage Thecus 8 Bay Windows Rackmount Enclosure Bare Box

97 specifications in 14 groups

Specification	Value
Storage drives installed	No
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	8
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Storage drive capacity	0 GB
Storage drive interface	Near Line SAS (NL-SAS), Serial ATA III
Storage drive size	3.5"

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	2nd gen Intel® Core™ i3
Processor model	i3-2120
Processor frequency	3.3 GHz
Processor cores	2
Processor threads	4
Processor cache	3 MB
Bus type	DMI
CPU configuration (max)	1
CPU multiplier (bus/core ratio)	33
PCI Express slots version	2.0
Processor cache type	Smart Cache
Processor codename	Sandy Bridge
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor socket	LGA 1155 (Socket H2)
System bus rate	5 GT/s
Tcase	69.1 °C
Thermal Design Power (TDP)	65 W
On-board graphics card model	Intel® HD Graphics 2000
Maximum internal memory supported by processor	32 GB
Memory bandwidth supported by processor (max)	21 GB/s
Conflict-Free processor	No

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3

Specification	Value
Ethernet LAN (RJ-45) ports	3
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Fiber ports quantity	0
eSATA ports quantity	1
HDMI ports quantity	1
RS-232 ports	1
eSATA	Yes

Specification	Value
On-board graphics card ID	0x102
On-board graphics card base frequency	850 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
Number of displays supported (on-board graphics)	2

Specification	Value
Operating system installed	Windows Storage Server 2016

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	350 W
Redundant power supply (RPS) support	Yes

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Maximum number of PCI Express lanes	16
Thermal Monitoring Technologies	Yes
Memory channels supported by processor	Dual

Specification	Value
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	0 - 80%

Specification	Value
Processor ARK ID	53426
