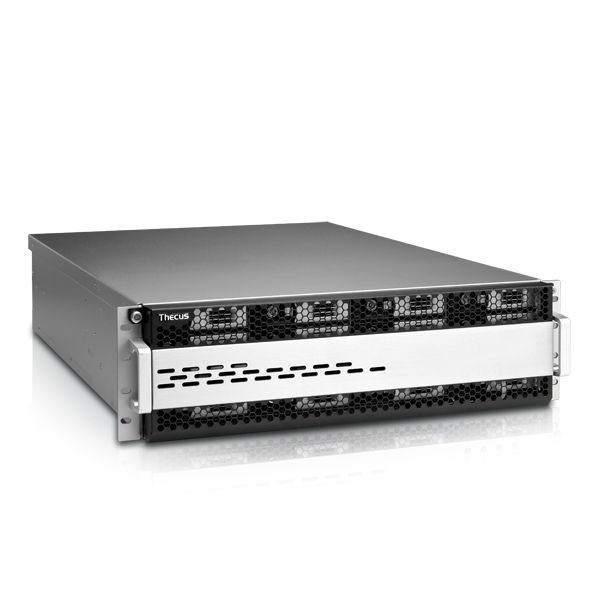

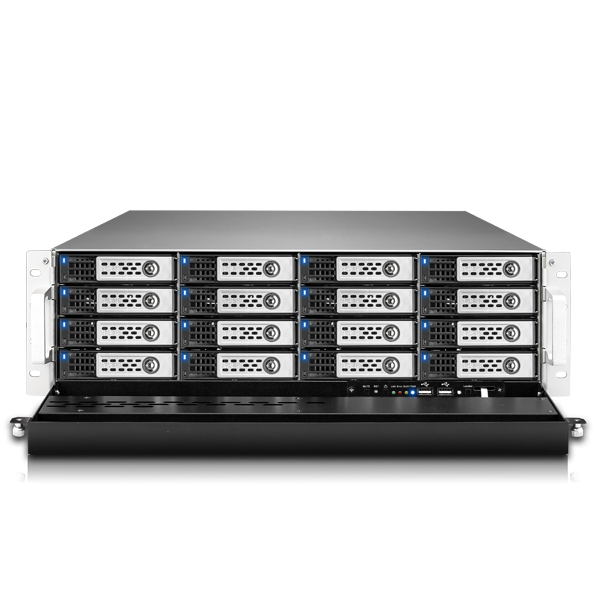

Origin Storage Thecus W16000

Model Thecus W16000Part no. W16000/96TBNLWDEAN 5056006116103

103 specifications

Overview

Brand: Origin Storage
Category: NAS & Storage Servers
Model: Thecus W16000
Part numbers: W16000/96TBNLWD, W16000/128TBNL, W16000/16TBNL, W16000/16TBNLWD, W16000/32TBENAS, W16000/32TBENASWD +10 more
EAN / UPC: 5056006116103, 5056006116042, 5056006115984, 5056006116059 +12 more
Also known as: Origin Storage Thecus W16000 16Bay WindowsNAS 16 x 8TB NLSATA Drives Installed

103 specifications in 14 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	128 TB
Number of storage drives installed	16
Number of storage drives supported	16
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Storage drive capacity	8 TB
Storage drive interface	Near Line SAS (NL-SAS), Serial ATA III
Storage drive size	3.5"

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E3 Family
Processor model	E3-1225
Processor frequency	3.1 GHz
Processor boost frequency	3.4 GHz
Processor cores	4
Processor threads	4
Processor cache	6 MB
Bus type	DMI
CPU configuration (max)	1
CPU multiplier (bus/core ratio)	31
ECC supported by processor	Yes
PCI Express slots version	2.0
Processor cache type	Smart Cache
Processor code	SR00G
Processor codename	Sandy Bridge
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor socket	LGA 1155 (Socket H2)
Stepping	D2
System bus rate	5 GT/s
Tcase	72.6 °C
Thermal Design Power (TDP)	95 W
On-board graphics card model	Intel® HD Graphics P3000
Maximum internal memory supported by processor	32 GB
Memory bandwidth supported by processor (max)	21 GB/s

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3

Specification	Value
Ethernet LAN (RJ-45) ports	3
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Fiber ports quantity	0
eSATA ports quantity	2
HDMI ports quantity	1
RS-232 ports	1
eSATA	Yes

Specification	Value
On-board graphics card base frequency	850 MHz
On-board graphics card dynamic frequency (max)	1350 MHz
Number of displays supported (on-board graphics)	2

Specification	Value
Operating system installed	Windows Storage Server 2016

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	500 W
Redundant power supply (RPS) support	Yes

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	No
Maximum number of PCI Express lanes	20
Thermal Monitoring Technologies	Yes
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	0 - 80%

Specification	Value
Processor ARK ID	52270
