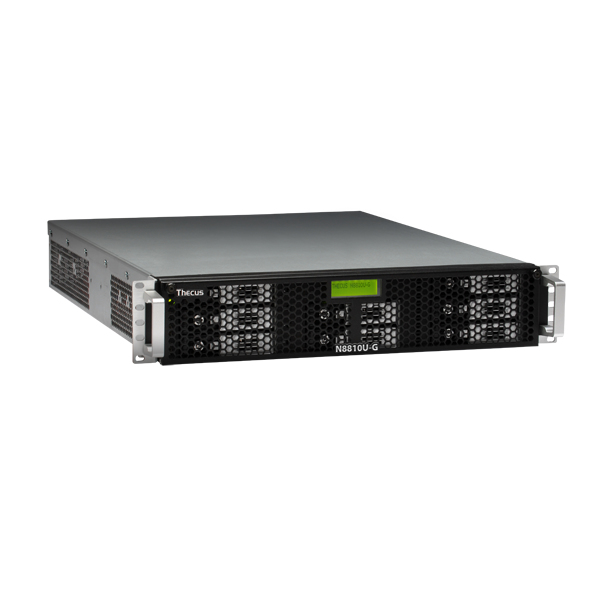

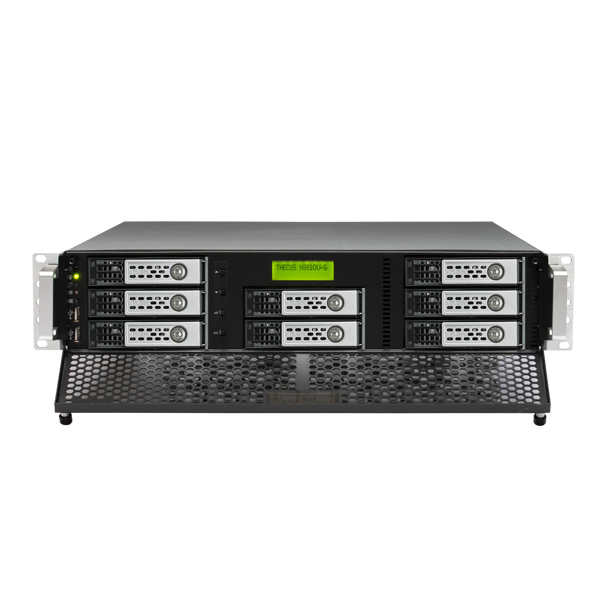

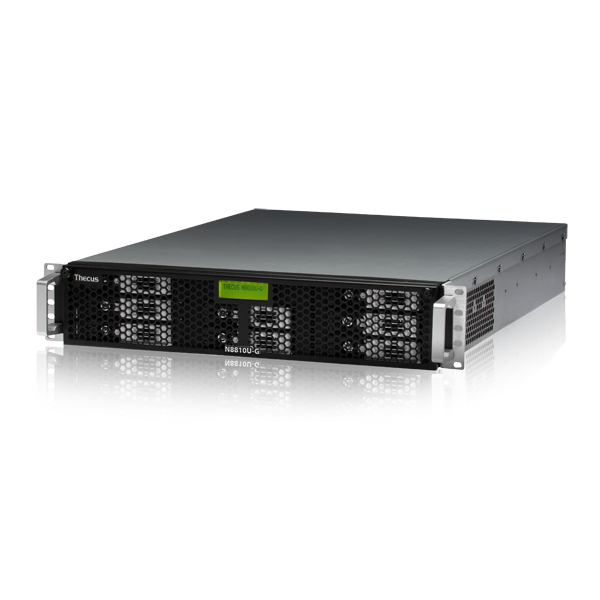

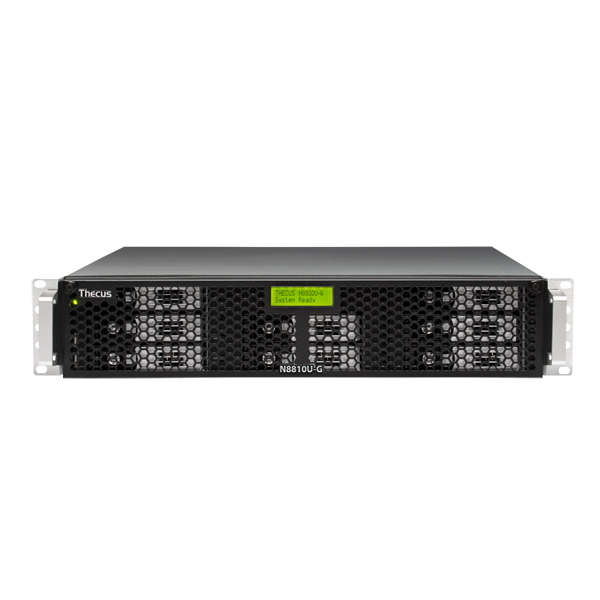

Origin Storage Thecus N8810U-G

Origin Storage Thecus N8810U-G

Model Thecus N8810U-GPart no. N8810U-G/8TBNLWDEAN 5056006117759

107 specifications
  • ProcessorIntel® Pentium®
  • Memory4 GB
  • TypeNAS
  • OSLinux
  • ColourBlack
  • Storage drives installedYes
See all specifications

Overview

Processor
Intel® Pentium®
Memory
4 GB
Type
NAS
OS
Linux
Colour
Black
Storage drives installed
Yes
Brand
Origin Storage
Model
Thecus N8810U-G
Part numbers
N8810U-G/8TBNLWD, N8810U-G/16TBNAS, N8810U-G/16TBNASWD, N8810U-G/16TBNL, N8810U-G/16TBNLWD, N8810U-G/24TBNAS +11 more
EAN / UPC
5056006117759, 5056006117544, 5056006117582, 5056006117643 +13 more
Also known as
Origin Storage Thecus N8810U-G 8 Bay NAS 8 x 2TB NAS Drives Installed

Specifications

107 specifications in 15 groups

Storage

Storage drives installedYes
Total installed storage capacity16 TB
Number of storage drives installed8
Number of storage drives supported8
Installed storage drive typeHDD
Supported storage drive typesHDD & SSD
Storage drive capacity2 TB
Storage drive interfaceSerial ATA III
RAID supportYes
RAID levels1, 5, 6, 10, 50, 60, JBOD
Hot-swap drive baysYes
Supported file systemsXFS, ext3, ext4

Processor

Processor manufacturerIntel
Processor familyIntel® Pentium®
Processor modelG850
Processor frequency2.9 GHz
Processor cores2
Processor threads2
Processor cache3 MB
Bus typeDMI
CPU configuration (max)1
CPU multiplier (bus/core ratio)29
PCI Express slots version2.0
Processor cache typeSmart Cache
Processor codeSR05Q
Processor codenameSandy Bridge
Processor lithography32 nm
Processor operating modes64-bit
Processor package size37.5 x 37.5 mm
Processor socketLGA 1155 (Socket H2)
SteppingQ0
System bus rate5 GT/s
Tcase69.1 °C
Thermal Design Power (TDP)65 W
On-board graphics card modelIntel® HD Graphics
Maximum internal memory supported by processor32 GB
Memory bandwidth supported by processor (max)21 GB/s
Conflict-Free processorYes

Memory

Internal memory4 GB
Internal memory typeDDR3

Network

Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Wi-FiNo
iSCSI supportYes

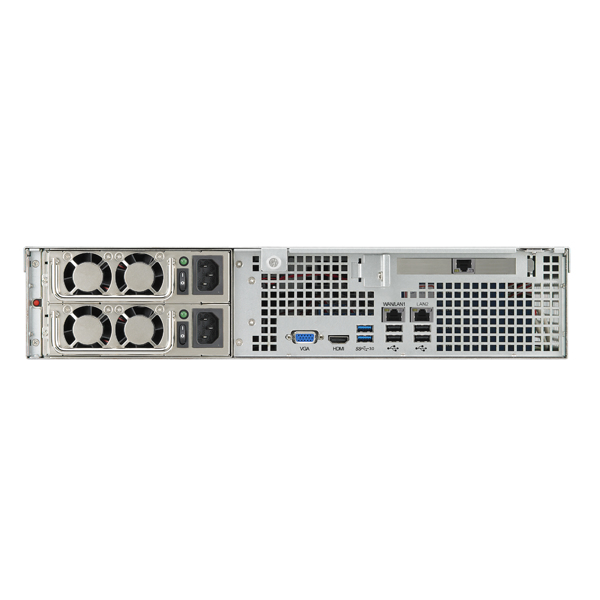

Ports & interfaces

Ethernet LAN (RJ-45) ports3
USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Fiber ports quantity0
VGA (D-Sub) ports quantity1
HDMI ports quantity1

Graphics

On-board graphics card base frequency850 MHz
On-board graphics card dynamic frequency (max)1100 MHz
Number of displays supported (on-board graphics)2

Design

Chassis typeRack (2U)
Cooling typeActive
Product colourBlack
Housing materialMetal
LED indicatorsYes
Built-in displayYes

Performance

TypeNAS
Backup functionYes
BuzzerYes
Security algorithms256-bit AES

Software

Operating system installedLinux
Windows operating systems supportedYes
Linux operating systems supportedYes
Mac compatibilityYes
Server operating systems supportedWindows Server 2003, Windows Server 2003 R2, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64, Windows Server 2012, Windows Server 2012 R2
Other operating systems supportedAndroid, Yes, iOS

Power

Power supply locationBuilt-in
Power supply unit (PSU) capacity400 W
Number of power supply units1
Redundant power supply (RPS) supportYes

Weight & dimensions

Width428 mm
Depth586 mm
Height90 mm

Packaging content

Cables includedAC, LAN (RJ-45)

Processor special features

Embedded options availableYes
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Dual Display Capable TechnologyYes
Intel Enhanced Halt StateYes
Intel FDI TechnologyYes
Intel Fast Memory AccessYes
Intel Flex Memory AccessYes
Intel Trusted Execution TechnologyNo
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)No
Intel® AES New Instructions (Intel® AES-NI)No
Intel® Clear Video HD Technology (Intel® CVT HD)No
Intel® Hyper Threading Technology (Intel® HT Technology)No
Intel® InTru™ 3D TechnologyNo
Intel® Insider™No
Intel® Quick Sync Video TechnologyNo
Intel® Turbo Boost TechnologyNo
Intel® Wireless Display (Intel® WiDi)No
Thermal Monitoring TechnologiesYes
Memory channels supported by processorDual
Memory types supported by processorDDR3-SDRAM

Operational conditions

Operating temperature (T-T)5 - 40 °C
Operating relative humidity (H-H)0 - 80%

Other features

Compliance certificatesRoHS
CertificationCE/FCC/C-Tick/VCCI/BSMI RoHS WEEE VMware
Processor ARK ID53491
