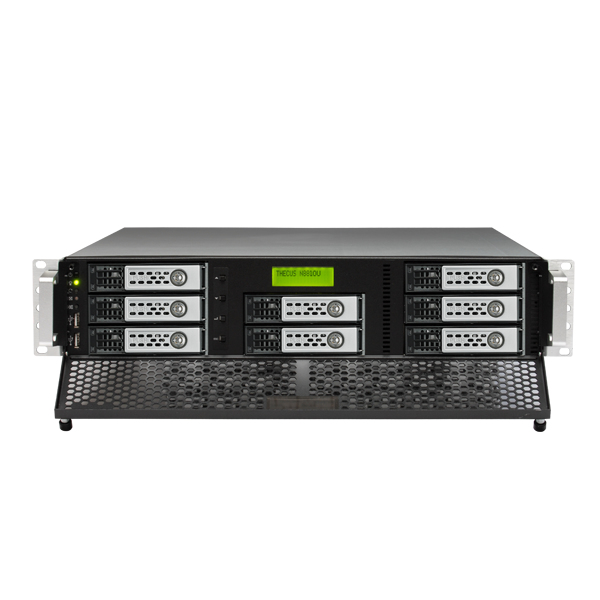

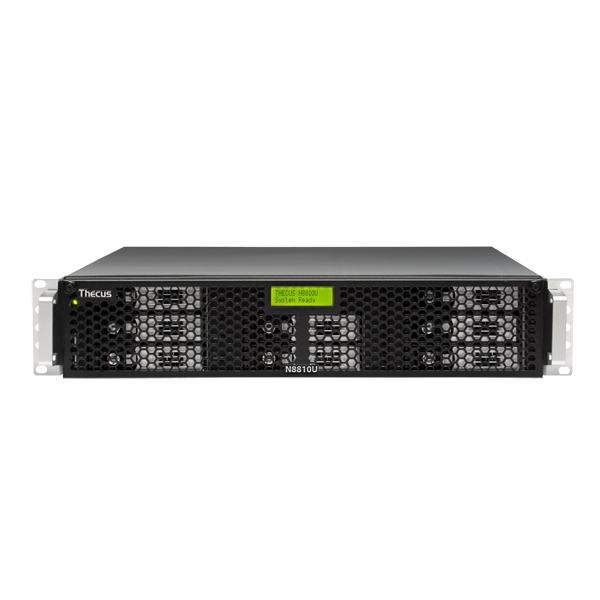

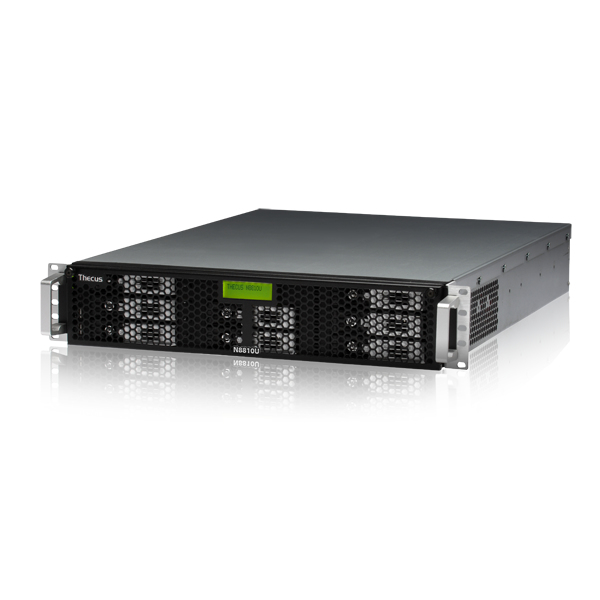

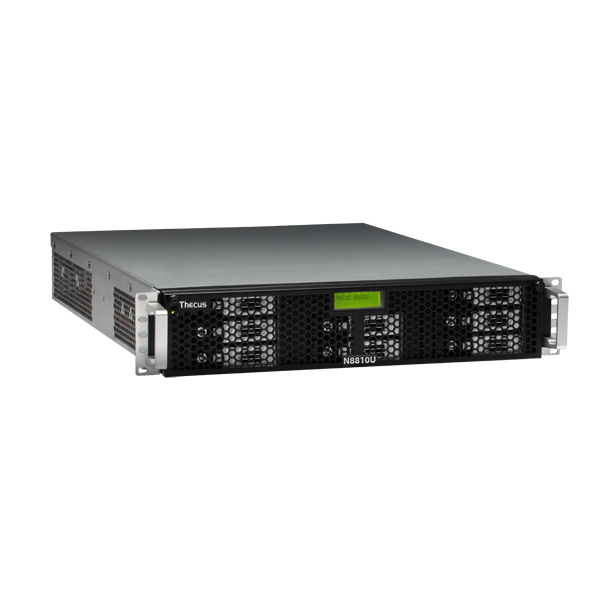

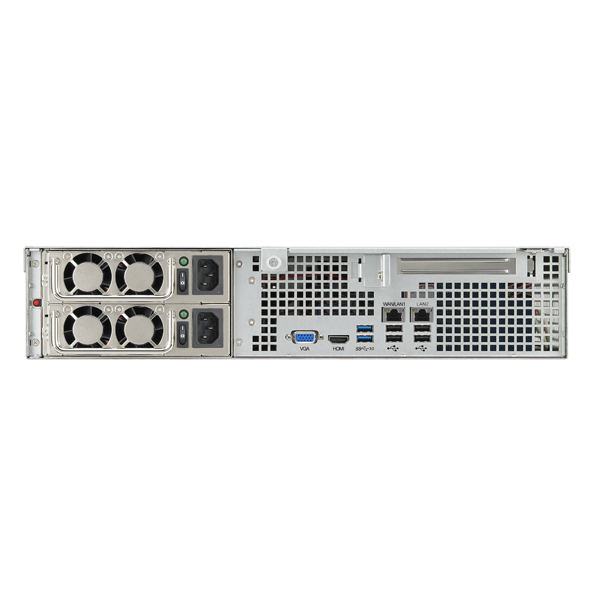

Origin Storage Thecus N8810U 8TB

Model Thecus N8810U 8TBPart no. N8810U/8TBEAN 5055146601739

107 specifications

Overview

Brand: Origin Storage
Category: NAS & Storage Servers
Model: Thecus N8810U 8TB
Part number: N8810U/8TB
EAN / UPC: 5055146601739
Also known as: Origin Storage Thecus N8810U 8Bay Inc 8TB 8 x 1TB SATA Drives installed

107 specifications in 14 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	8 TB
Number of storage drives installed	8
Number of storage drives supported	8
Installed storage drive type	HDD
Supported storage drive types	HDD
Storage drive capacity	1 TB
Storage drive interface	Serial ATA III
Maximum supported storage capacity	32 TB
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, 50, 60, JBOD
Hot-swap drive bays	Yes
Supported file systems	ext3, ext4, XFS

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	G850
Processor frequency	2.9 GHz
Processor cores	2
Processor threads	2
Processor cache	3 MB
Bus type	DMI
CPU configuration (max)	1
CPU multiplier (bus/core ratio)	29
PCI Express slots version	2.0
Processor cache type	Smart Cache
Processor code	SR05Q
Processor codename	Sandy Bridge
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor socket	LGA 1155 (Socket H2)
Stepping	Q0
System bus rate	5 GT/s
Tcase	69.1 °C
Thermal Design Power (TDP)	65 W
On-board graphics card model	Intel® HD Graphics
Maximum internal memory supported by processor	32 GB
Memory bandwidth supported by processor (max)	21 GB/s
Conflict-Free processor	Yes

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1

Specification	Value
On-board graphics card base frequency	850 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
Number of displays supported (on-board graphics)	2

Specification	Value
Operating system installed	Linux
Bundled software	Acronis True Image McAfee Antivirus
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2003

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	400 W
Number of power supply units	1
Redundant power supply (RPS) support	Yes

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Thermal Monitoring Technologies	Yes
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	0 - 80%
