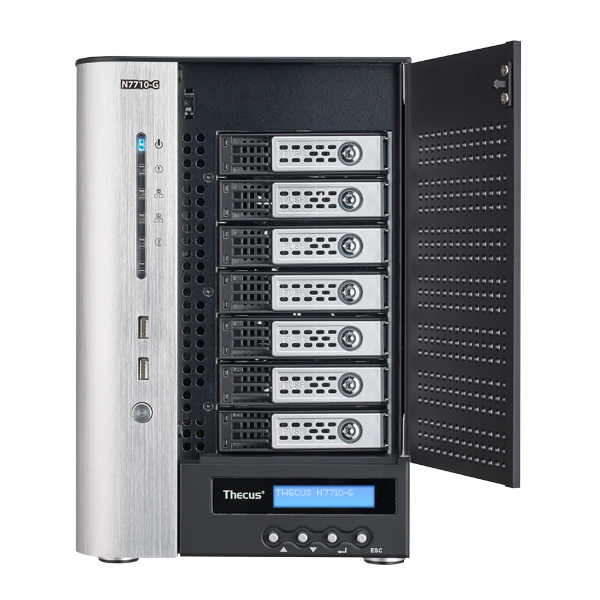

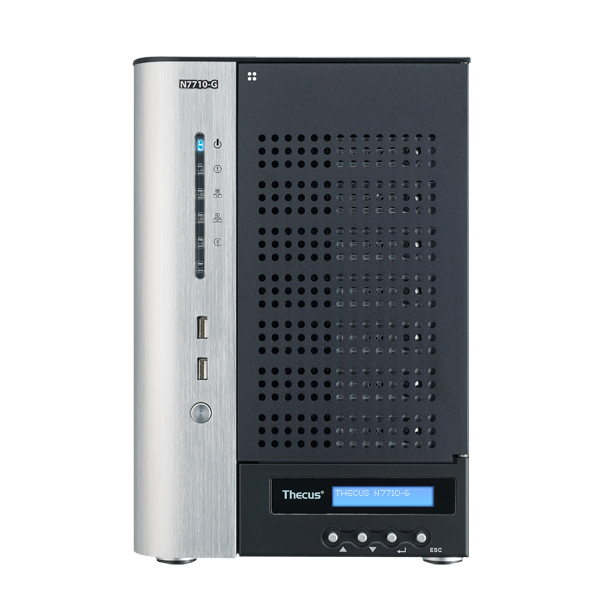

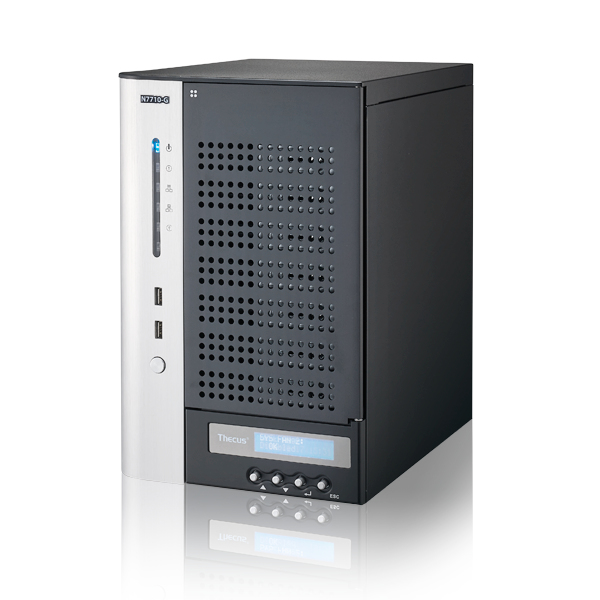

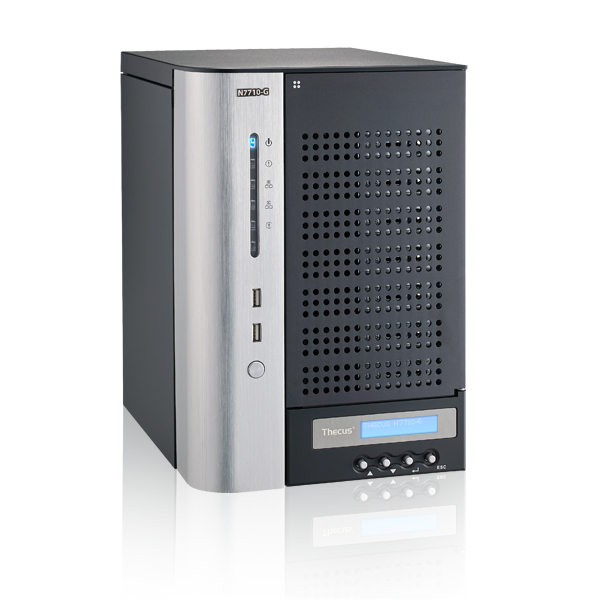

Origin Storage Thecus N7710-G

Model Thecus N7710-GPart no. N7710G/28TBNASEAN 5056006113065

117 specifications

Overview

Brand: Origin Storage
Category: NAS & Storage Servers
Model: Thecus N7710-G
Part numbers: N7710G/28TBNAS, N7710G/14TBNAS, N7710G/42TBNLWD, N7710G/56TBNL, N7710G/7TBNLWD, N7710G/7TBNL +11 more
EAN / UPC: 5056006113065, 5056006113041, 5056006113256, 5056006113195 +13 more
Also known as: Origin Storage Thecus N7710G 7 Bay NAS 7 x 2TB NAS Drives Installed

117 specifications in 15 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	14 TB
Number of storage drives installed	7
Number of storage drives supported	7
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Storage drive capacity	2 TB
Storage drive interface	Serial ATA II, Serial ATA III
Storage drive size	3.5"
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, 50, JBOD
Hot-swap drive bays	Yes
Supported file systems	BTRFS, XFS, ext3, ext4

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	G850
Processor frequency	2.9 GHz
Processor cores	2
Processor threads	2
Processor cache	3 MB
Bus type	DMI
CPU configuration (max)	1
CPU multiplier (bus/core ratio)	29
PCI Express slots version	2.0
Processor cache type	Smart Cache
Processor code	SR05Q
Processor codename	Sandy Bridge
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor socket	LGA 1155 (Socket H2)
Stepping	Q0
System bus rate	5 GT/s
Tcase	69.1 °C
Thermal Design Power (TDP)	65 W
On-board graphics card model	Intel® HD Graphics
Maximum internal memory supported by processor	32 GB
Memory bandwidth supported by processor (max)	21 GB/s
Conflict-Free processor	Yes

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,10000 Mbit/s
Ethernet LAN data rate supported (max)	10000 Mbit/s
Wi-Fi	No
iSCSI support	Yes
Data link protocols	TCP/IP/AppleTalk
Supported network protocols	SMB/CIFS, HTTP/HTTPS, FTP, NFS v4, AFP

Specification	Value
Ethernet LAN (RJ-45) ports	3
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Fiber ports quantity	0
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1

Specification	Value
On-board graphics card base frequency	850 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
Number of displays supported (on-board graphics)	2

Specification	Value
Operating system installed	ThecusOS
Operating system version	5.0
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac compatibility	Yes

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	300 W
Number of power supply units	1

Specification	Value
External power adapter	No

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Thermal Monitoring Technologies	Yes
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	0 - 80%

Specification	Value
Compliance certificates	RoHS
Certification	CE/FCC/C-Tick/VCCI/BSMI WEEE VMware
Processor ARK ID	53491
