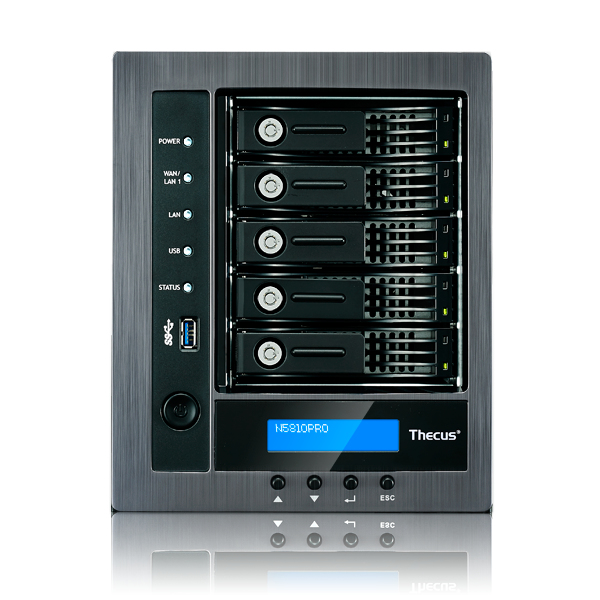

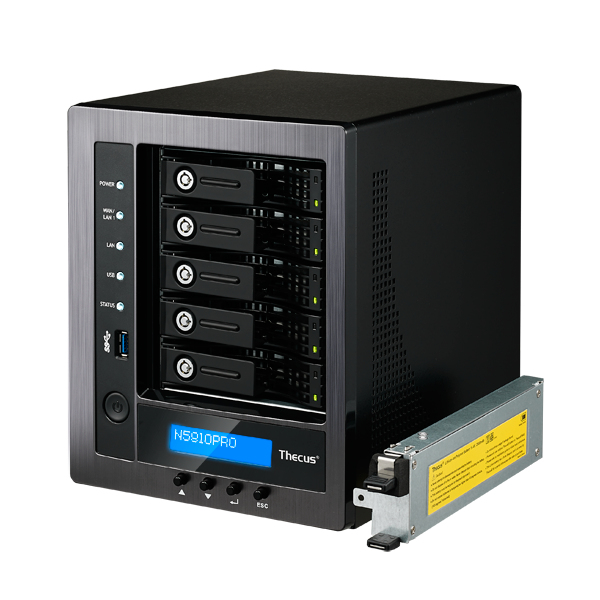

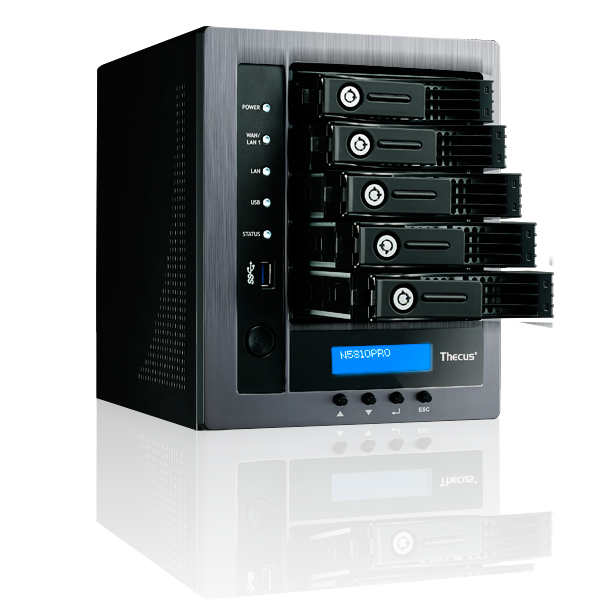

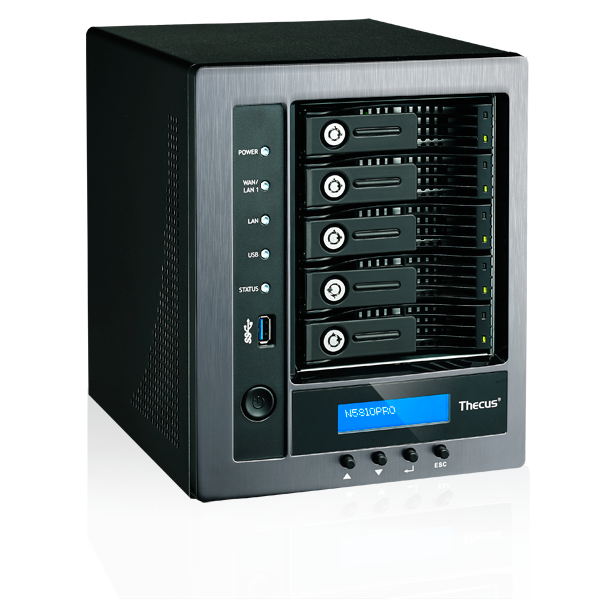

Origin Storage Thecus N5810PRO

Model Thecus N5810PROPart no. N5810PRO/20TBNLEAN 5056006111832

119 specifications

Overview

Brand: Origin Storage
Category: NAS & Storage Servers
Model: Thecus N5810PRO
Part numbers: N5810PRO/20TBNL, N5810PRO/30TBNLSA, N5810PRO/40TBNLSA, N5810PRO/25TBNLSA, N5810PRO/15TBNLSA, N5810PRO/20TBNLSA +19 more
EAN / UPC: 5056006111832, 5055146646792, 5055146646808, 5055146646785 +21 more
Also known as: Origin Storage Thecus 5-Bay NAS 5x6TB 24x7 NLSATA 4GB RJ-45x5 Mini UPS

119 specifications in 14 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	30 TB
Number of storage drives installed	5
Number of storage drives supported	5
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Storage drive capacity	6 TB
Storage drive interface	Serial ATA II, Serial ATA III
Storage drive size	3.5"
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD
Hot-swap drive bays	Yes
Supported file systems	BTRFS, XFS, ext4

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	J1900
Processor frequency	2 GHz
Processor boost frequency	2.42 GHz
Processor cores	4
Processor threads	4
Processor cache	2 MB
L2 cache	2 MB
CPU configuration (max)	1
ECC supported by processor	No
PCI Express configurations	1x4
PCI Express slots version	2.0
Physical Address Extension (PAE)	36 bit
Processor cache type	L2
Processor code	SR1SC
Processor codename	Bay Trail
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor package size	25 X 27 mm
Processor series	Intel Celeron Processor J1000 series for Desktop
Processor socket	BGA 1170
Stepping	B3
Thermal Design Power (TDP)	10 W
Tjunction	105 °C
On-board graphics card model	Intel® HD Graphics
Maximum internal memory supported by processor	8 GB
Conflict-Free processor	Yes

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
iSCSI support	Yes
Data link protocols	TCP/IP/AppleTalk
Supported network protocols	SMB/CIFS, HTTP/HTTPS, FTP, NFS v4, AFP

Specification	Value

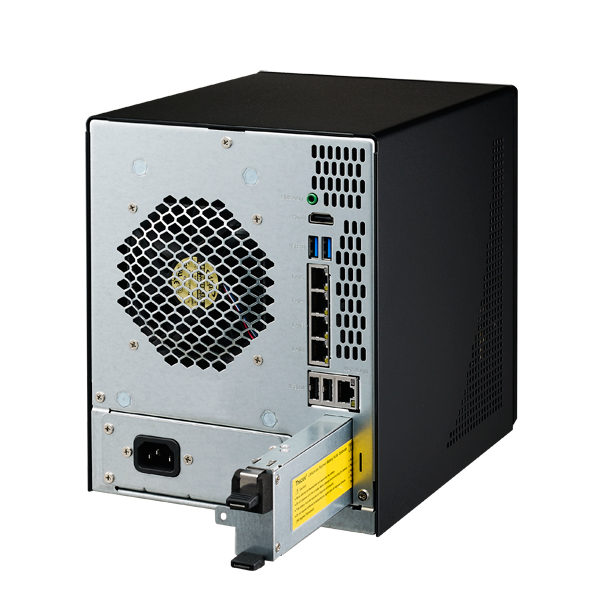

Ethernet LAN (RJ-45) ports	5
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Fiber ports quantity	0
HDMI ports quantity	1

Specification	Value
On-board graphics card base frequency	688 MHz
On-board graphics card dynamic frequency (max)	854 MHz
Number of displays supported (on-board graphics)	2

Specification	Value
Operating system installed	ThecusOS
Operating system version	7.0
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac compatibility	Yes

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	200 W
Number of power supply units	1

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Intel 64	Yes
Intel FDI Technology	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Small Business Advantage (SBA) version	0.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Quick Sync Video Technology	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Maximum number of PCI Express lanes	4
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3L-SDRAM

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 80%
Storage temperature (T-T)	-40 - 70 °C
