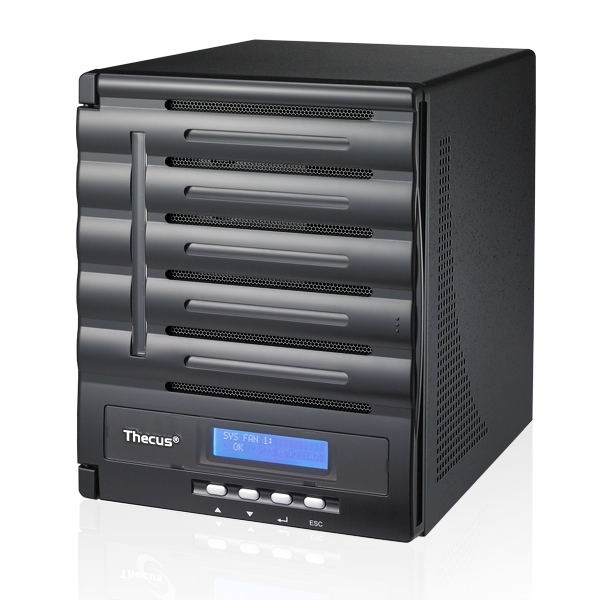

Origin Storage Thecus N5550 with 5TB NLSATA

Model Thecus N5550 with 5TB NLSATAPart no. N5550-5000NLSAEAN 5055146588849

118 specifications

Overview

Brand: Origin Storage
Category: NAS & Storage Servers
Model: Thecus N5550 with 5TB NLSATA
Part number: N5550-5000NLSA
EAN / UPC: 5055146588849
Also known as: Origin Storage Thecus N5550 5 Bay with 5TB 5 x 1TB NL SATA HDDs installed

118 specifications in 16 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	5 TB
Number of storage drives installed	5
Number of storage drives supported	5
Installed storage drive type	HDD
Supported storage drive types	HDD
Storage drive capacity	1 TB
Storage drive interface	Serial ATA III
Storage drive size	3.5"
HDD speed	7200 RPM
Maximum supported storage capacity	40 TB
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD
Hot-swap drive bays	Yes
Supported file systems	ext3, ext4, XFS, ZFS

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D2550
Processor frequency	1.86 GHz
Processor cores	2
Processor threads	4
Processor cache	1 MB
Bus type	DMI
ECC supported by processor	No
Physical Address Extension (PAE)	36 bit
Processor cache type	L2
Processor code	SR0VY
Processor codename	Cedarview
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	22 X 22 mm
Processor socket	BGA 559
Stepping	B3
Thermal Design Power (TDP)	10 W
Tjunction	100 C
Maximum internal memory supported by processor	4 GB
Memory bandwidth supported by processor (max)	6.4 GB/s
Conflict-Free processor	No

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Fiber ports quantity	0
VGA (D-Sub) ports quantity	1
eSATA ports quantity	1
HDMI ports quantity	1
Serial ports quantity	0
RS-232 ports	0
External mini-SAS ports	0
Thunderbolt ports quantity	0

Specification	Value
On-board graphics card base frequency	640 MHz
Number of displays supported (on-board graphics)	2

Specification	Value
Operating system installed	ThecusOS
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows 2000 Advanced Server, Windows 2000 Server, Windows Home Server 2011, Windows MultiPoint Server 2011, Windows SBS 2011 Essentials, Windows SBS 2011 Standard, Windows Server 2003, Windows Server 2003 R2, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008
Other operating systems supported	Android, iOS, Windows Embedded Standard 7 64-bit, Windows Phone

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	200 W
Number of power supply units	1
Redundant power supply (RPS) support	No
AC input voltage	110-230 V
AC input frequency	50 - 60 Hz

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Intel 64	Yes
Intel Dual Display Capable Technology	Yes
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	No
Maximum number of PCI Express lanes	4
Physical Address Extension (PAE)	Yes
Memory channels supported by processor	Single
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Sustainability certificates	RoHS

Specification	Value
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	0 - 80%
