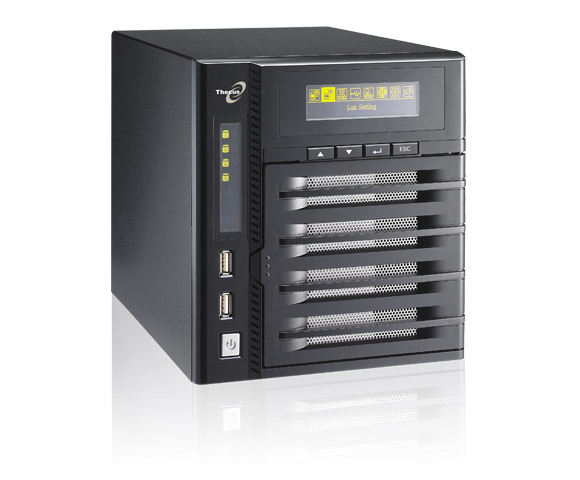

Origin Storage Thecus N4200 4BAY NAS 4TB

Model Thecus N4200 4BAY NAS 4TBPart no. OS-N4200-4000EAN 5055146562627

72 specifications

Overview

Brand: Origin Storage
Category: NAS & Storage Servers
Model: Thecus N4200 4BAY NAS 4TB
Part number: OS-N4200-4000
EAN / UPC: 5055146562627
Also known as: Origin Storage Thecus N4200 4BAY NAS 4TB Intel Atom® D510 1 GB

72 specifications in 11 groups

Specification	Value
Total installed storage capacity	4 TB
Number of storage drives installed	4
Number of storage drives supported	4
Storage drive capacity	1 TB
Storage drive interface	Serial ATA II
RAID levels	0, 1, 5, 6, 10, JBOD

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D510
Processor frequency	1.66 GHz
Processor cores	2
Processor threads	4
Processor cache	1 MB
L2 cache	1 MB
Bus type	DMI
ECC supported by processor	No
Number of processors installed	1
Physical Address Extension (PAE)	32 bit
Processing Die size	87 mm²
Processor cache type	L2
Processor code	SLBLA
Processor codename	Pineview
Processor lithography	45 nm
Processor operating modes	64-bit
Processor package size	22 x 22 mm
Processor socket	BGA 559
Stepping	B0
Thermal Design Power (TDP)	13 W
Tjunction	100 °C
Maximum internal memory supported by processor	4 GB
Memory bandwidth supported by processor (max)	6.4 GB/s
Conflict-Free processor	No

Specification	Value
Internal memory	1 GB

Specification	Value
Wi-Fi	Yes
iSCSI support	Yes
Compliance industry standards	IEEE 802.11b,IEEE 802.11g
Maximum data transfer rate	100 Mbit/s
Supported network protocols	TCP/IP/Appletalk

Specification	Value
Display type	OLED

Specification	Value
External power adapter	Yes

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Demand Based Switching	No
Intel Enhanced Halt State	No
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	No
Number of Processing Die Transistors	176 M
Thermal Monitoring Technologies	No
Memory channels supported by processor	Single

Specification	Value
Operating temperature (T-T)	5 - 40 °C

Specification	Value
Compatible operating systems	Windows 2000/7/XP/2003/Vista UNIX/Linux Mac OS 9+
Link/Act LED	Yes
Networking features	Gigabit Ethernet
Supported protocols	SMB/CIFS, HTTP/HTTPS, FTP, NFS v3, AFP
Processor ARK ID	43098
I/O ports	PCI-e x1
Non-operating relative humidity (non-condensing)	0 - 80%
Technical features	battery backup module
