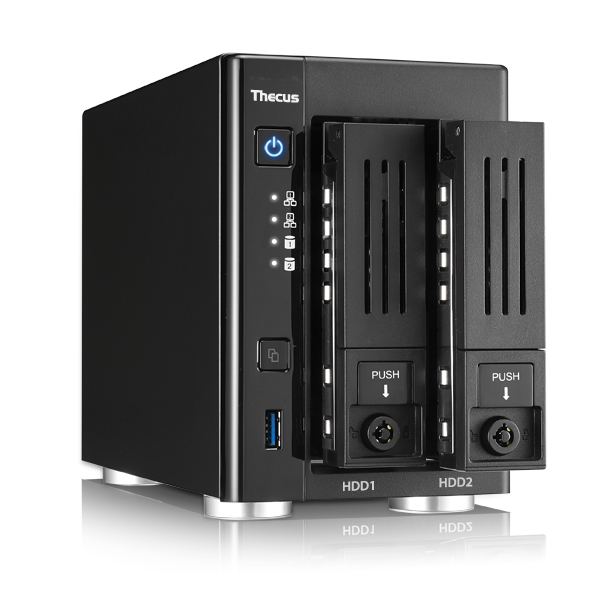

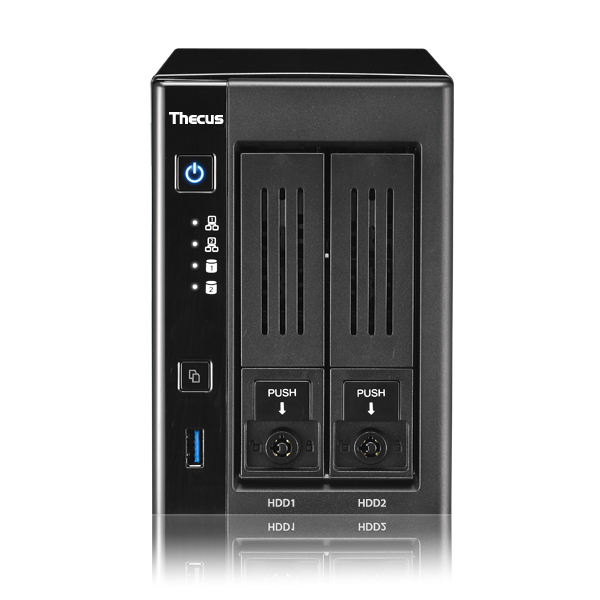

Origin Storage Thecus N2810

Model Thecus N2810Part no. N2810/8TBNLEAN 5056006109945

140 specifications

ProcessorIntel® Celeron®
Memory2 GB
TypeNAS
OSThecusOS
ColourBlack
Storage drives installedYes

See all specifications

Overview

Processor: Intel® Celeron®
Memory: 2 GB
Type: NAS
OS: ThecusOS
Colour: Black
Storage drives installed: Yes

Brand: Origin Storage
Category: NAS & Storage Servers
Model: Thecus N2810
Part numbers: N2810/8TBNL, N2810/4TBNAS, N2810/4TBNLWD, N2810/4TBNASWD, N2810/2TBNL, N2810/2TBNLWD +11 more
EAN / UPC: 5056006109945, 5056006109822, 5056006109990, 5056006109860 +13 more
Also known as: Origin Storage Thecus N2810 2 Bay NAS 2 x 2TB NAS Drives Installed

Specifications

140 specifications in 15 groups

Storage

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	4 TB
Number of storage drives installed	2
Number of storage drives supported	2
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Storage drive capacity	2 TB
Storage drive interface	Serial ATA II, Serial ATA III
Storage drive size	3.5"
RAID support	Yes
RAID levels	0, 1, JBOD
Hot-swap drive bays	Yes
Supported file systems	BTRFS, XFS, ext3, ext4

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	N3060
Processor frequency	1.6 GHz
Processor boost frequency	2.48 GHz
Processor cores	2
Processor threads	2
Processor cache	2 MB
CPU configuration (max)	1
ECC supported by processor	No
Integrated 4G WiMAX	No
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
PCI Express slots version	2.0
Processor cache type	L2
Processor code	SR2KN
Processor codename	Braswell
Processor lithography	14 nm
Processor operating modes	64-bit
Processor package size	25 x 27 mm
Processor series	Intel Celeron N3000 series
Processor socket	BGA 1170
Scenario Design Power (SDP)	4 W
Stepping	D1
System bus rate	5 GT/s
Thermal Design Power (TDP)	6 W
Tjunction	90 °C
On-board graphics card model	Intel® HD Graphics 400
Maximum internal memory supported by processor	8 GB
Conflict-Free processor	Yes

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3
Maximum RAM supported	8 GB

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
iSCSI support	Yes
Data link protocols	TCP/IP/AppleTalk
Supported network protocols	SMB/CIFS, HTTP/HTTPS, FTP, NFS v4, AFP

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Fiber ports quantity	0
HDMI ports quantity	1
RS-232 ports	1

Graphics

Specification	Value
On-board graphics card DirectX version	12.0
On-board graphics card base frequency	320 MHz
On-board graphics card burst frequency	600 MHz
Maximum on-board graphics card memory	8 GB
Number of displays supported (on-board graphics)	3

Design

Specification	Value
Chassis type	Tower
Cooling type	Active
Product colour	Black
Number of fans	1 fan(s)
LED indicators	Activity, LAN, Power, WAN

Performance

Specification	Value
Type	NAS
Device class	Home & Home Office
Backup function	Yes
Buzzer	Yes
Disk scan	Yes
Hot spare	Yes
On/off switch	Yes
S.M.A.R.T. support	Yes
Security algorithms	256-bit AES

Software

Specification	Value
Operating system installed	ThecusOS
Operating system version	7.0
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac compatibility	Yes

Power

Specification	Value
Power supply location	External
Power supply unit (PSU) capacity	48 W
Number of power supply units	1
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz

Weight & dimensions

Specification	Value
Width	102 mm
Depth	213 mm
Height	146 mm

Packaging content

Specification	Value
External power adapter	Yes

Processor special features

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Boot	Yes
Intel Secure Boot Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	0.00
Intel Smart Connect Technology	No
Intel Smart Connect Technology version	0.00
Intel Smart Response Technology version	0.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® OS Guard	No
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	Yes
Maximum number of PCI Express lanes	4
Number of execution units	12
Thermal Monitoring Technologies	Yes
UART	Yes
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3L-SDRAM

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 80%
Storage temperature (T-T)	-40 - 70 °C

Other features

Specification	Value
Compliance certificates	RoHS
Certification	CE/FCC/C-Tick/VCCI/BSMI WEEE
Processor ARK ID	91832
