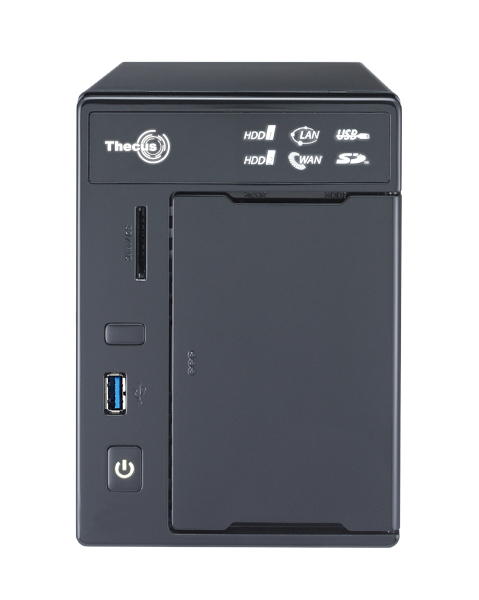

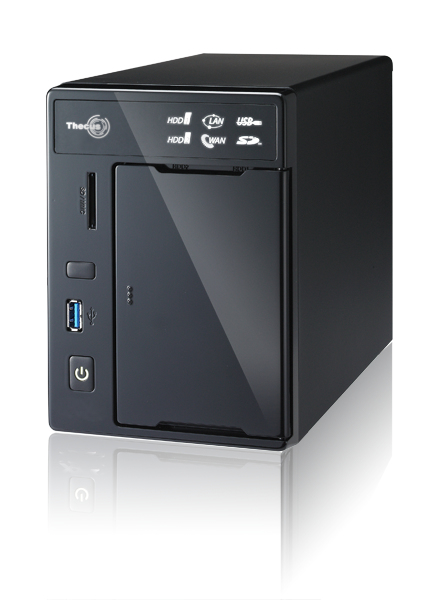

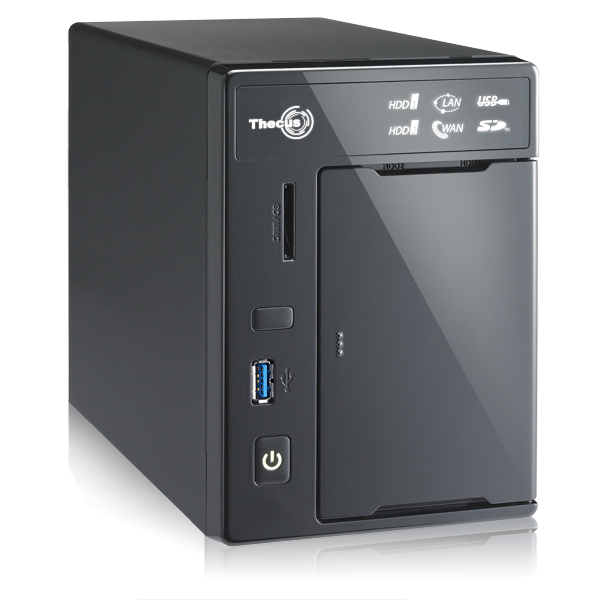

Origin Storage Thecus N2800

Model Thecus N2800Part no. N2800/12TBNLWDEAN 5056006109815

110 specifications

Overview

Brand: Origin Storage
Category: NAS & Storage Servers
Model: Thecus N2800
Part numbers: N2800/12TBNLWD, N2800-8TB, N2800-12TB/ENAS, N2800/6TBNAS, N2800/6TBNASWD, N2800/4TBNL +13 more
EAN / UPC: 5056006109815, 5055146595212, 5056006100584, 5056006109617 +15 more
Also known as: Origin Storage Thecus N2800 2Bay NAS 2 x 4TB SATA Drives

110 specifications in 14 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	8 TB
Number of storage drives installed	2
Number of storage drives supported	3
Storage drive capacity	4 TB
Storage drive interface	Serial ATA
HDD speed	7200 RPM
RAID support	Yes
RAID levels	0, 1, JBOD
Hot-swap drive bays	Yes
Supported file systems	BTRFS, XFS, ext3, ext4

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D2700
Processor frequency	2.13 GHz
Processor cores	2
Processor threads	4
Processor cache	1 MB
L2 cache	1 MB
Bus type	DMI
ECC supported by processor	No
Physical Address Extension (PAE)	36 bit
Processor cache type	L2
Processor code	SR0D9
Processor codename	Cedarview
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	22 X 22 mm
Processor socket	BGA 559
Stepping	B2
System bus rate	2.5 GT/s
Thermal Design Power (TDP)	10 W
Tjunction	100 °C
Maximum internal memory supported by processor	4 GB
Memory bandwidth supported by processor (max)	6.4 GB/s

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
iSCSI support	Yes
Wake-on-LAN ready	Yes
Data link protocols	SMB/CIFS, HTTP/HTTPS, FTP, NFS v4, AFP
Link aggregation	Yes
Supported network protocols	TCP/IP/AppleTalk

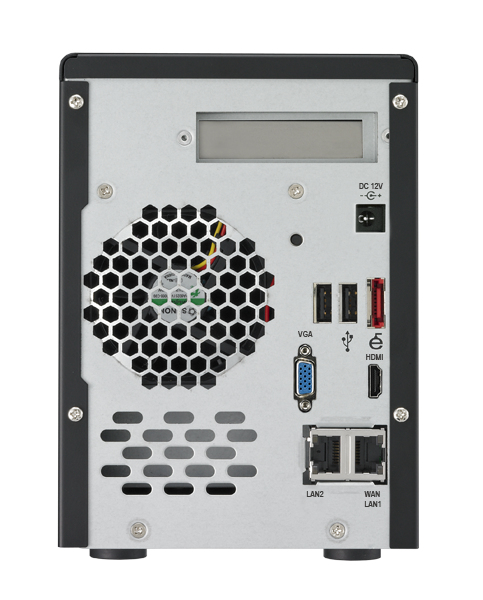

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
VGA (D-Sub) ports quantity	1
eSATA ports quantity	1
HDMI ports quantity	1
eSATA	Yes

Specification	Value
On-board graphics card base frequency	640 MHz
Number of displays supported (on-board graphics)	2

Specification	Value
Operating system installed	Linux
Windows operating systems supported	Windows 2000, Windows 7 Ultimate, Windows 8, Windows Vista Ultimate, Windows XP Home
Linux operating systems supported	Yes
Mac operating systems supported	Yes

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Intel 64	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel ME Firmware Version	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	No
Maximum number of PCI Express lanes	4
Physical Address Extension (PAE)	Yes
Memory channels supported by processor	Single
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	0 - 80%

Specification	Value
Compliance certificates	RoHS
Power management	Yes
Certification	CE/FCC/C-Tick/VCCI/BSMI WEEE VMware, Citrix
Processor ARK ID	59683
