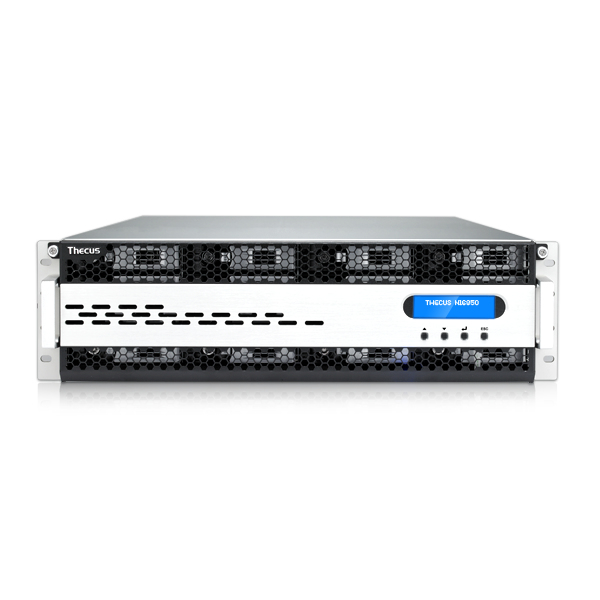

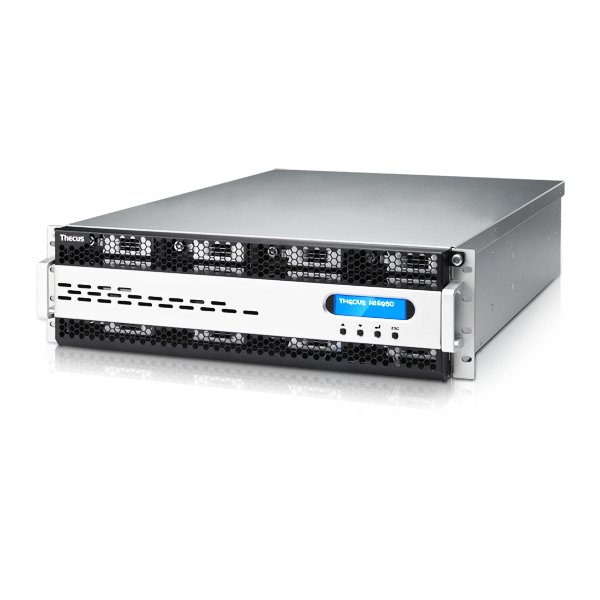

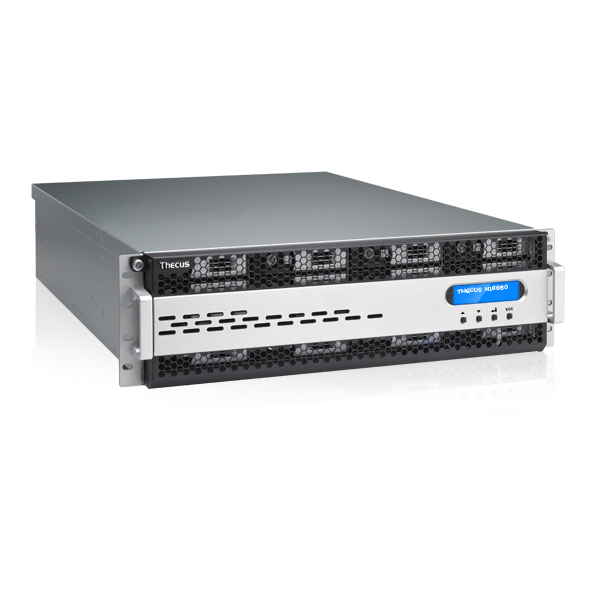

Origin Storage Thecus N16850

Origin Storage Thecus N16850

Model Thecus N16850Part no. N16850/48TBNLSEAN 5056006119661

115 specifications
  • ProcessorIntel® Xeon® E3 V3 Family
  • Memory16 GB
  • TypeNAS
  • OSThecusOS
  • ColourBlack, Silver
  • Storage drives installedYes
See all specifications

Overview

Processor
Intel® Xeon® E3 V3 Family
Memory
16 GB
Type
NAS
OS
ThecusOS
Colour
Black, Silver
Storage drives installed
Yes
Brand
Origin Storage
Model
Thecus N16850
Part numbers
N16850/48TBNLS, N16850/128TBNL, N16850/16TBNL, N16850/16TBNLWD, N16850/32TBENAS, N16850/32TBENASWD +14 more
EAN / UPC
5056006119661, 5056006119760, 5056006119562, 5056006119579 +16 more
Also known as
Origin Storage Thecus N16850 16 Bay NAS 16 x 8TB NLSATA Drives Installed

Specifications

115 specifications in 13 groups

Storage

Storage drives installedYes
Total installed storage capacity128 TB
Number of storage drives installed16
Number of storage drives supported16
Installed storage drive typeHDD
Supported storage drive typesHDD & SSD
Storage drive capacity8 TB
Storage drive interfaceNear Line SAS (NL-SAS), Serial ATA II, Serial ATA III
Storage drive size3.5"
Maximum supported storage capacity8000 TB
RAID supportYes
RAID levels0, 1, 5, 6, 10, 50, 60, JBOD
Hot-swap drive baysYes
Supported file systemsBTRFS, XFS, ext3, ext4

Processor

Processor manufacturerIntel
Processor familyIntel® Xeon® E3 V3 Family
Processor modelE3-1231V3
Processor frequency3.4 GHz
Processor boost frequency3.8 GHz
Processor cores4
Processor threads8
Processor cache8 MB
Bus typeDMI2
CPU configuration (max)1
ECC supported by processorYes
PCI Express configurations1x16, 2x8, 1x8+2x4
PCI Express slots version3.0
Processor cache typeSmart Cache
Processor codenameHaswell
Processor lithography22 nm
Processor operating modes32-bit, 64-bit
Processor package size37.5 x 37.5 mm
Processor seriesIntel Xeon E3-1200 v3
Processor socketLGA 1150 (Socket H3)
Scalability1S
SteppingC0
System bus rate5 GT/s
Thermal Design Power (TDP)80 W
On-board graphics card modelNot available
Maximum internal memory supported by processor32 GB
Memory bandwidth supported by processor (max)25.6 GB/s
Conflict-Free processorNo

Memory

Internal memory16 GB
Internal memory typeDDR3
Maximum RAM supported32 GB
Memory slots4

Network

Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Wi-FiNo
iSCSI supportYes
Data link protocolsTCP/IP/AppleTalk
Supported network protocolsSMB/CIFS, HTTP/HTTPS, FTP, NFS v4, AFP

Ports & interfaces

Ethernet LAN (RJ-45) ports4
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Fiber ports quantity0

Design

Chassis typeRack (3U)
Cooling typeActive
Product colourBlack, Silver
LED indicatorsActivity, Alarm, Power
Built-in displayYes
Display typeLCM

Performance

TypeNAS
Device classLarge Enterprise Business
Backup functionYes
Web-based managementYes
Disk scanYes
Hot spareYes
S.M.A.R.T. supportYes
Security algorithms256-bit AES

Software

Operating system installedThecusOS

Power

Power supply locationBuilt-in
Power supply unit (PSU) capacity500 W

Weight & dimensions

Width440 mm
Depth662 mm
Height133 mm

Processor special features

Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Graphics & IMC lithography22 nm
Idle StatesYes
Intel 64Yes
Intel Enhanced Halt StateYes
Intel Fast Memory AccessYes
Intel Flex Memory AccessYes
Intel I/O Acceleration TechnologyYes
Intel Identity Protection Technology version1.00
Intel Secure Key Technology version1.00
Intel Stable Image Platform Program (SIPP)Yes
Intel Stable Image Platform Program (SIPP) version1.00
Intel TSX-NIYes
Intel TSX-NI version1.00
Intel Trusted Execution TechnologyYes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Anti-Theft Technology (Intel® AT)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® My WiFi Technology (Intel® MWT)No
Intel® OS GuardYes
Intel® Secure KeyYes
Intel® Smart CacheYes
Intel® Turbo Boost Technology2.0
Maximum number of PCI Express lanes16
Number of QPI links0
Thermal Monitoring TechnologiesYes
Thermal solution specificationPCG 2013D
Memory channels supported by processorDual
Memory types supported by processorDDR3-SDRAM

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)0 - 80%
Storage temperature (T-T)-40 - 70 °C

Other features

Processor ARK ID80910
