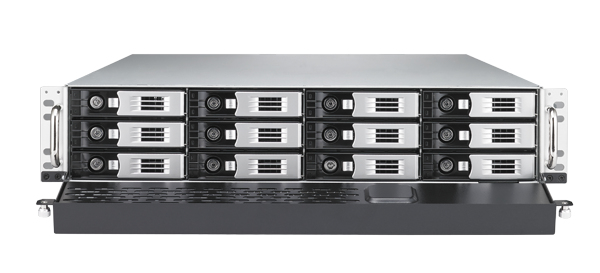

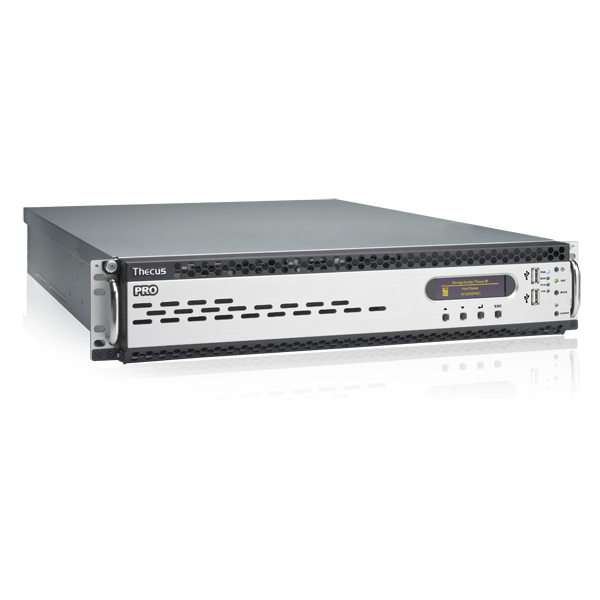

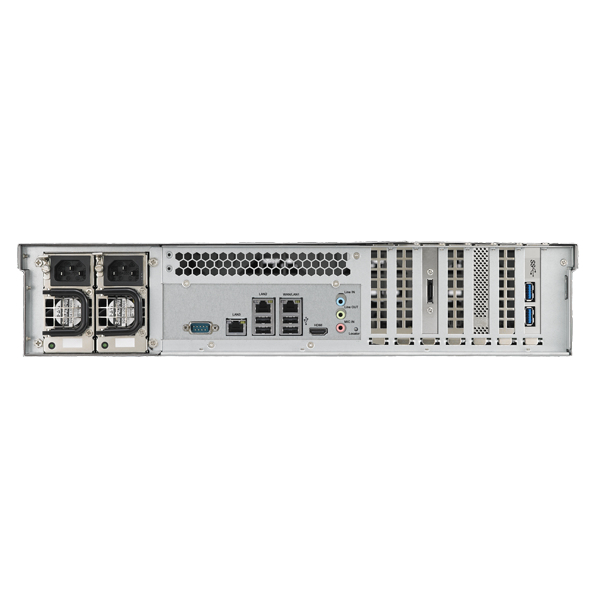

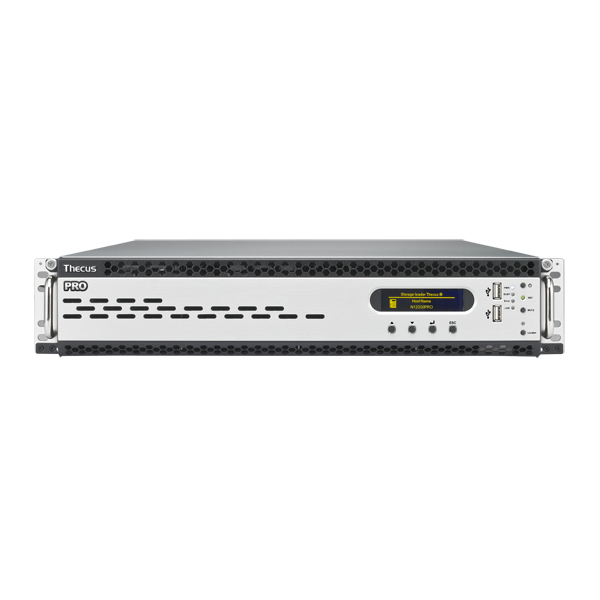

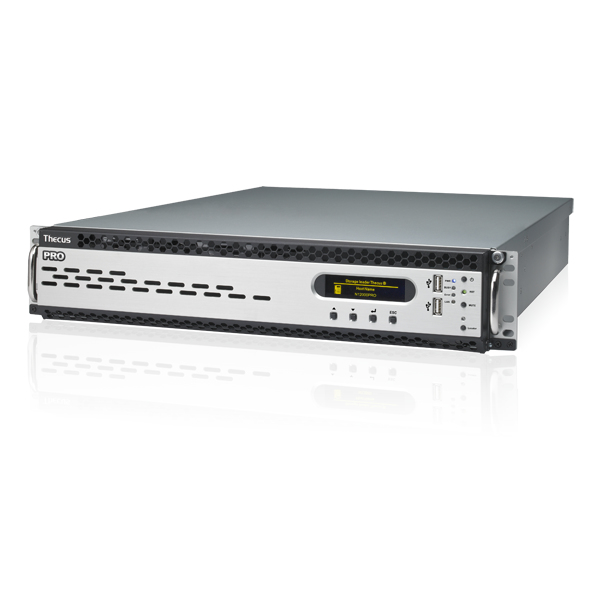

Origin Storage Thecus N12000PRO

Model Thecus N12000PROPart no. N12000PRO/96TBNLEAN 5056006115168

115 specifications

Overview

Brand: Origin Storage
Category: NAS & Storage Servers
Model: Thecus N12000PRO
Part numbers: N12000PRO/96TBNL, N12000PRO-48TB/ENAS, N12000PRO/36TBENAS, N12000PRO/12TBNL, N12000PRO/12TBNLWD, N12000PRO/24TBENAS +10 more
EAN / UPC: 5056006115168, 5055146646846, 5056006115038, 5056006100034 +13 more
Also known as: Origin Storage Thecus 12 Bay NAS 48TB with 12 x 4TB E-NAS SATA Installed

115 specifications in 14 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	48 TB
Number of storage drives installed	12
Number of storage drives supported	12
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Storage drive capacity	4 TB
Storage drive interface	Serial ATA II, Serial ATA III
Storage drive size	3.5"
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, 50, 60, JBOD
Hot-swap drive bays	Yes
Supported file systems	ext3, ext4, XFS, BTRFS

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E3 Family
Processor model	E3-1275
Processor frequency	3.4 GHz
Processor boost frequency	3.8 GHz
Processor cores	4
Processor threads	8
Processor cache	8 MB
Bus type	DMI
CPU configuration (max)	1
CPU multiplier (bus/core ratio)	3.4
ECC supported by processor	Yes
PCI Express slots version	2.0
Processor cache type	Smart Cache
Processor code	SR00P
Processor codename	Sandy Bridge
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor socket	LGA 1155 (Socket H2)
Stepping	D2
System bus rate	5 GT/s
Tcase	72.6 °C
Thermal Design Power (TDP)	95 W
On-board graphics card model	Intel® HD Graphics P3000
Maximum internal memory supported by processor	32 GB
Memory bandwidth supported by processor (max)	21 GB/s

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
iSCSI support	Yes
Data link protocols	TCP/IP/AppleTalk
Supported network protocols	SMB/CIFS, HTTP/HTTPS, FTP, NFS v4, AFP

Specification	Value
Ethernet LAN (RJ-45) ports	3
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Fiber ports quantity	0
eSATA ports quantity	1
HDMI ports quantity	1
RS-232 ports	1

Specification	Value
On-board graphics card base frequency	850 MHz
On-board graphics card dynamic frequency (max)	1350 MHz
Number of displays supported (on-board graphics)	2

Specification	Value
Operating system installed	ThecusOS

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	700 W
Number of power supply units	2
Redundant power supply (RPS) support	Yes

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	No
Maximum number of PCI Express lanes	20
Thermal Monitoring Technologies	Yes
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	0 - 80%

Specification	Value
Processor ARK ID	52277
